Whether you’re on the start line or in line to shred your local spot, you’ll be equipped to blast any jump line, rock garden, and rut track in your path aboard the Forbidden Dreadnought. Bigger, burlier and ready for anything. This mountain taming bruiser of a bicycle knows no bound, and neither will you. Expanding our category defying high pivot design from the Druid and applying it to a platform for the extremes. A dh bike in all but the small print, ready for the rowdiest back-country lines, the steepest race stages and the shadiest gaps in the bike park. Bring the big guns, bring the Dreadnought and fear nothing.The only thing this bike needs is a pilot ready to feed it a non-stop diet of rough and rowdy terrain.
Whether you’re on the start line or in line to shred your local spot, you’ll be equipped to blast any jump line, rock garden, and rut track in your path aboard the Forbidden Dreadnought. Bigger, burlier and ready for anything. This mountain taming bruiser of a bicycle knows no bound, and neither will you. Expanding our category defying high pivot design from the Druid and applying it to a platform for the extremes. A dh bike in all but the small print, ready for the rowdiest back-country lines, the steepest race stages and the shadiest gaps in the bike park. Bring the big guns, bring the Dreadnought and fear nothing.The only thing this bike needs is a pilot ready to feed it a non-stop diet of rough and rowdy terrain.
-
Intended Use
Enduro / Bikepark
-
Suspension
154mm Rear / 170mm Front
-
Wheel Size
Full 29er or Mixed (MX)
Choose Your Dream Ride
Choose Your Dream Ride
$9,999 CAD
$9,999 CAD
Do you want to understand thescience behind the witchcraft?
Do you want to understand the science behind the witchcraft?
Dreadnought V1 Specs
Dreadnought V1 Specs
Out of stock Framekit$2249 CAD |
Out of stock X0 AXS$9,999 CAD |
Out of stock GX AXS$5,354 CAD |
Out of stock GX LTD Team$3999 CAD |
|
---|---|---|---|---|
FRAME |
FRAME Dreadnought Full Carbon - 154mm Travel High-Modulus Carbon Fiber | Trifecta High Single Pivot Suspension | One Ride Geometry | Enduro Max Bearings | 73mm Threaded BSA Bottom Bracket |
FRAME Dreadnought V1 Full Carbon - 154mm Travel High-Modulus Carbon Fiber | Trifecta High Single Pivot Suspension | One Ride Geometry | Enduro Max Bearings | 73mm Threaded BSA Bottom Bracket |
FRAME Dreadnought V1 Full Carbon - 154mm Travel High-Modulus Carbon Fiber | Trifecta High Single Pivot Suspension | One Ride Geometry | Enduro Max Bearings | 73mm Threaded BSA Bottom Bracket |
FRAME Dreadnought V1 Full Carbon - 154mm Travel High-Modulus Carbon Fiber | Trifecta High Single Pivot Suspension | One Ride Geometry | Enduro Max Bearings | 73mm Threaded BSA Bottom Bracket |

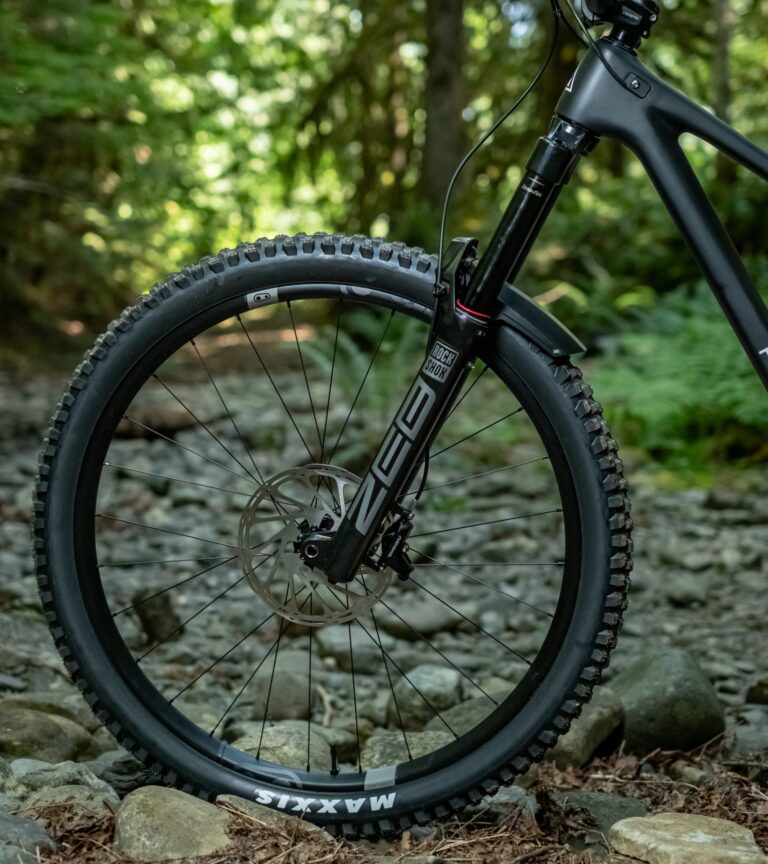

FORK |
FORK |

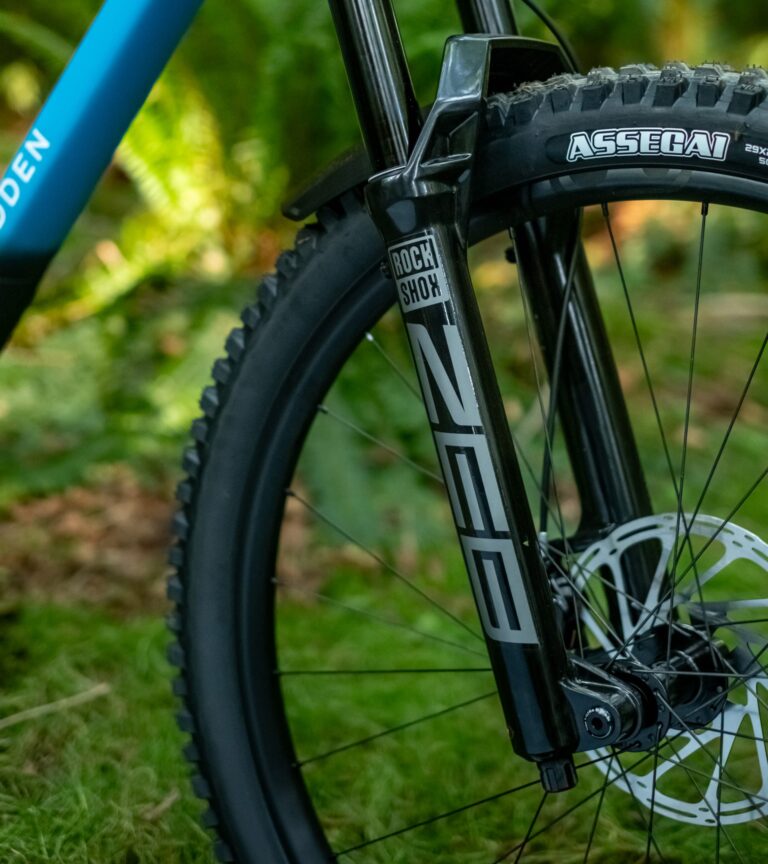

FORK Rock Shox ZEB Ultimate Charger 3 RC2 W/ButterCup | Debonair+ | Pressure Relief Valves | 44mm Offset | Maxle Stealth Thru-Axle | Fender included | Gloss Black |
FORK Rock Shox ZEB Select+ Charger 3 RC2 | Debonair+ | Pressure Relief Valves | 44mm Offset | Maxle Stealth Thru-Axle | Fender included | Gloss Black |
FORK Rock Shox ZEB Ultimate Charger 3 RC2 W/ButterCup | Debonair+ | Pressure Relief Valves | 44mm Offset | Maxle Stealth Thru-Axle | Fender included | Gloss Black |
REAR SHOCK |
REAR SHOCK RockShox Super Deluxe Ultimate 2 Position Adjuster | DebonAir+ Linear | RC2T Damper | LNLC Tune | Trunnion/Bearing Mount | 205x65mm |
REAR SHOCK Rock Shox Super Deluxe Ultimate 2 Position Adjuster | DebonAir+ Linear | RC2T Damper | LNLC Tune | Trunnion/Bearing Mount | 205x65mm |
REAR SHOCK Rock Shox Super Deluxe Ultimate 2 Position Adjuster | DebonAir+ Linear | RC2T Damper | LNLC Tune | Trunnion/Bearing Mount | 205x65mm |

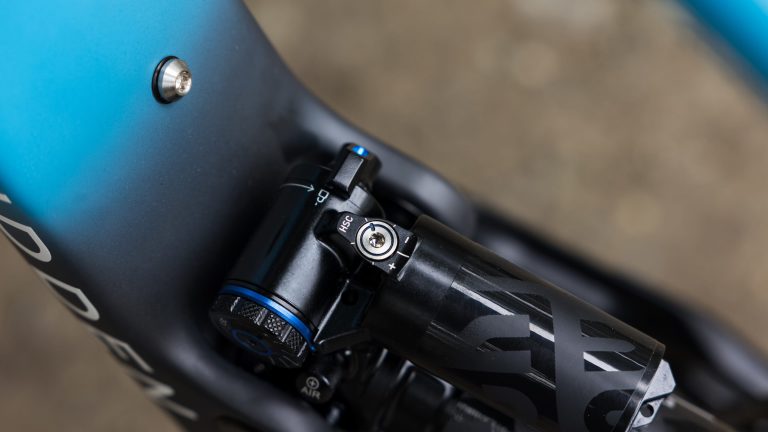

REAR SHOCK Fox Float X2 Performance Elite 2 Position Adjuster | HSC/LSC | HSR/LSR | Evol Air Can | Custom Tune | Trunnion Mount | Bearing Mount | 205x65mm |
HEADSET |
HEADSET |
HEADSET Cane Creek Hellbender 70 SHIS: ZS44/28.6|ZS56/40 | sealed cartridge bearings | 6000 series alloy cups and materials | sealed steel crown race |
HEADSET Cane Creek 40 SHIS: ZS44/28.6|ZS56/40 | sealed cartridge bearings | 6000 series alloy cups and materials | sealed steel crown race |
HEADSET Cane Creek 40 SHIS: ZS44/28.6|ZS56/40 | sealed cartridge bearings | 6000 series alloy cups and materials | sealed steel crown race |

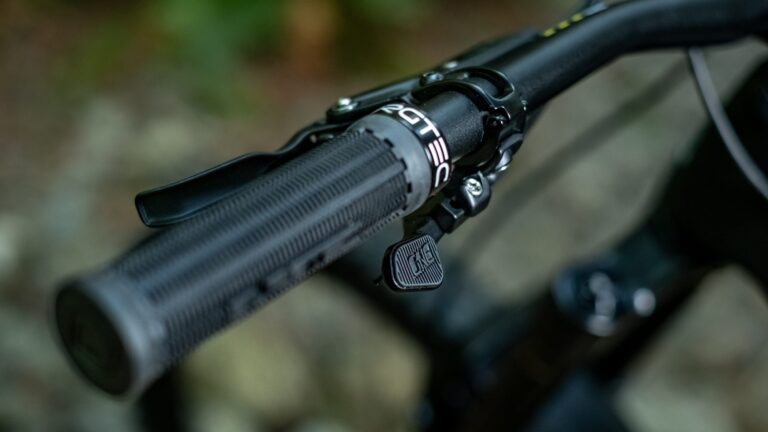

GRIPS |
GRIPS |
GRIPS Burgtec Bartender Pro 135mm length | Single Sided Lock-On | Black |
GRIPS Burgtec Bartender Pro 135mm length | Single Sided Lock-On | Black |
GRIPS Burgtec Bartender Pro 135mm length | Single Sided Lock-On | Black |
HANDLE BARS |
HANDLE BARS |
HANDLE BARS Burgtec Ride Wide Enduro Alloy // Ride High Alloy 800mm Width | S1:15 / S2:22.5 / S3:30 / S4:38mm Rise | 9° backsweep 5°upward | 35mm Bar Bore | Black |
HANDLE BARS Burgtec Ride Wide Enduro Alloy // Ride High Alloy 800mm Width | S1:15 / S2:22.5 / S3:30 / S4:38mm Rise | 9° backsweep 5°upward | 35mm Bar Bore | Black |
HANDLE BARS Burgtec Ride Wide Enduro Alloy // Ride High Alloy 800mm Width | S1:15 / S2:22.5 / S3:30 / S4:38mm Rise | 9° backsweep 5°upward | 35mm Bar Bore | Black |
STEM |
STEM |
STEM Burgtec OE MK3 Enduro 42.5mm Length | 35mm Bar Clamp | Black |
STEM Burgtec OE MK3 Enduro 42.5mm Length | 35mm Bar Clamp | Black |
STEM Burgtec OE MK3 Enduro 42.5mm Length | 35mm Bar Clamp | Black |
SEAT POST |
SEAT POST |
SEAT POST OneUp Dropper Post 31.6mm | Size Specific Travel S1:120mm / S2:150mm / S3:180mm / S4:210mm |
SEAT POST OneUp Dropper Post 31.6mm | Size Specific Travel S1:120mm / S2:150mm / S3:180mm / S4:210mm |
SEAT POST OneUp Dropper Post 31.6mm | Size Specific Travel S1:120mm / S2:150mm / S3:180mm / S4:210mm |
SEAT POST REMOTE |
SEAT POST REMOTE |
SEAT POST REMOTE OneUp MMX UFT Lever Aluminum remote | oversized bearing | MatchMaker X Integrated Dropper Remote |
SEAT POST REMOTE OneUp MMX UFT Lever Aluminum remote | oversized bearing | MatchMaker X Integrated Dropper Remote |
SEAT POST REMOTE OneUp MMX UFT Lever Aluminum remote | oversized bearing | MatchMaker X Integrated Dropper Remote |
SEAT POST CLAMP |
SEAT POST CLAMP |
SEAT POST CLAMP Forbidden 7075 CNC Aluminum | 34.9mm | Black Anodized |
SEAT POST CLAMP Forbidden 7075 CNC Aluminum | 34.9mm | Black Anodized |
SEAT POST CLAMP Forbidden 7075 CNC Aluminum | 34.9mm | Black Anodized |
SADDLE |
SADDLE |
SADDLE Fizik Terra Alpaca X5 145mm width | X5: ride-compliant fiber reinforced nylon shell and an S-Alloy rail | Black |
SADDLE Fizik Terra Alpaca X5 145mm width | X5: ride-compliant fiber reinforced nylon shell and an S-Alloy rail | Black |
SADDLE Fizik Terra Alpaca X5 145mm width | X5: ride-compliant fiber reinforced nylon shell and an S-Alloy rail | Black |
FRONT BRAKE |
FRONT BRAKE |

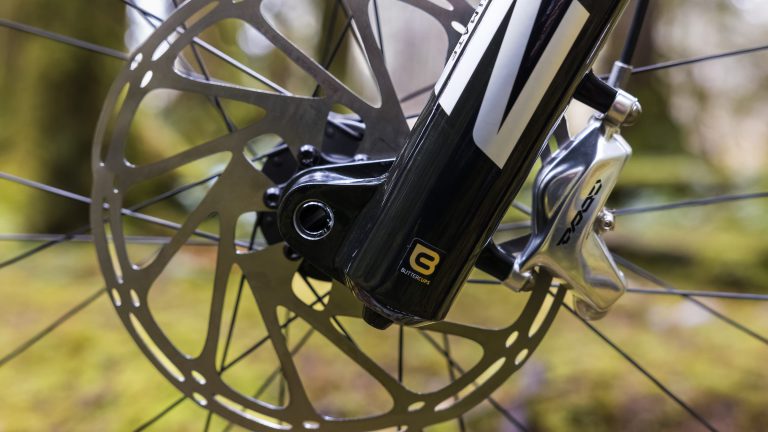

FRONT BRAKE SRAM Code Stealth Ultimate 4-Piston Stealth Body | Carbon Lever Blade | Reach & Contact Adjustment | Steel Backed Metal Sintered |
FRONT BRAKE SRAM Code Stealth Silver 4-Piston Stealth Body | SwingLink | Reach & Contact Adjustment | Steel Backed Metal Sintered |
FRONT BRAKE SRAM Code R 4-Piston Reach Adjust | Steel Backed Metal Sintered |
FRONT BRAKE ROTOR |
FRONT BRAKE ROTOR |
FRONT BRAKE ROTOR SRAM HS2 - 200mm 6-Bolt |
FRONT BRAKE ROTOR SRAM Centerline - 200mm 6-Bolt |
FRONT BRAKE ROTOR SRAM Centerline - 200mm 6-Bolt |

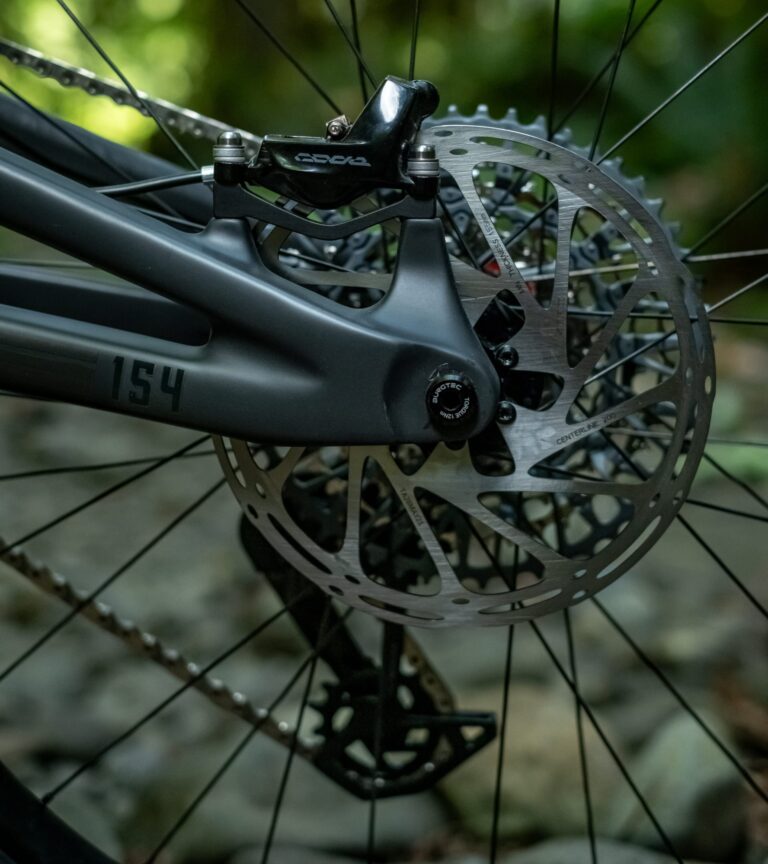

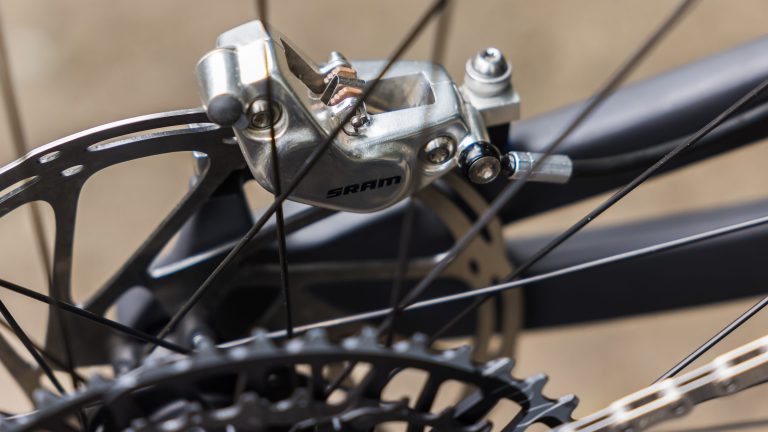

REAR BRAKE |
REAR BRAKE |
REAR BRAKE SRAM Code Stealth Ultimate 4-Piston Stealth Body | Carbon Lever Blade | Reach & Contact Adjustment | Steel Backed Metal Sintered |
REAR BRAKE SRAM Code Stealth Silver 4-Piston Stealth Body | SwingLink | Reach & Contact Adjustment | Steel Backed Metal Sintered |
REAR BRAKE SRAM Code R 4-Piston Reach Adjust | Steel Backed Metal Sintered |
REAR BRAKE ROTOR |
REAR BRAKE ROTOR |
REAR BRAKE ROTOR SRAM HS2 - 200mm 6-Bolt |
REAR BRAKE ROTOR SRAM Centerline - 200mm 6-Bolt |
REAR BRAKE ROTOR SRAM Centerline - 200mm 6-Bolt |

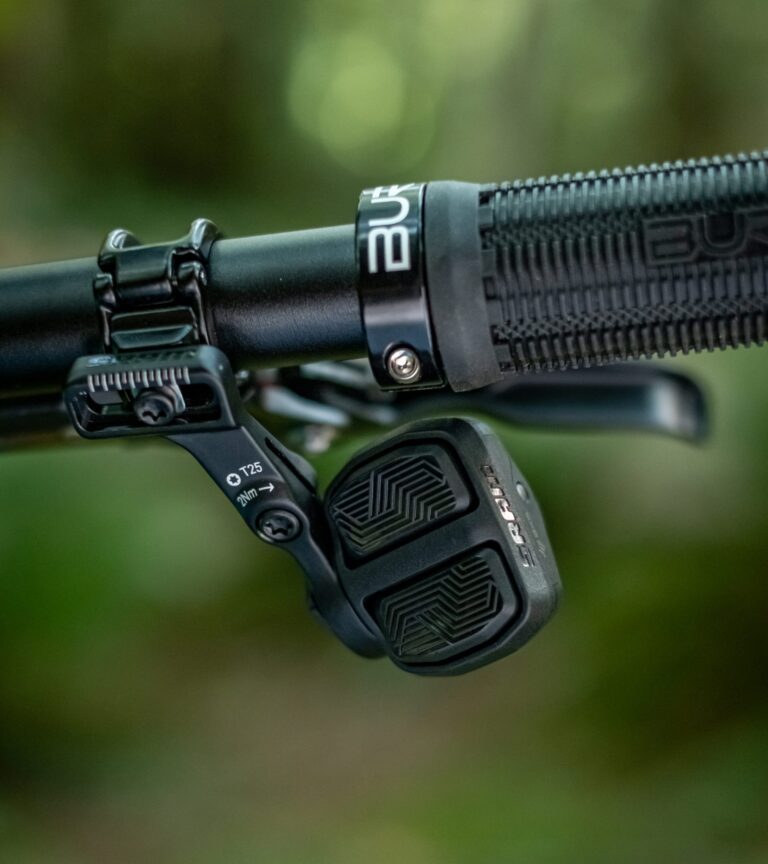

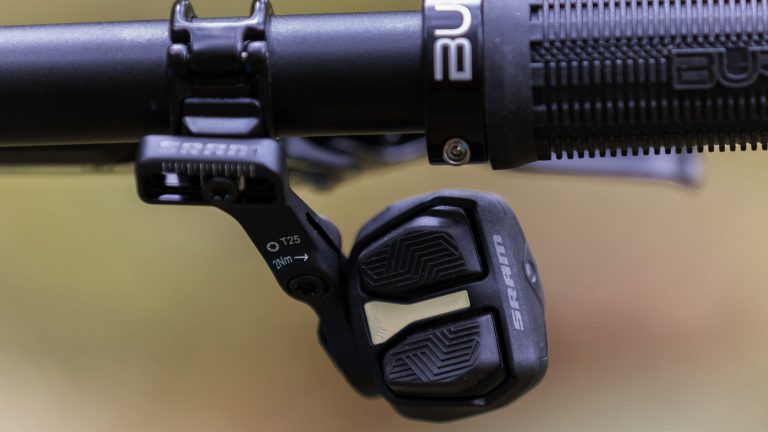

REAR SHIFTER |
REAR SHIFTER |
REAR SHIFTER AXS POD ULTIMATE With MMX Clamp | AXS controller | Two Button Design |
REAR SHIFTER AXS POD With MMX Clamp | AXS controller | Two Button Design |
REAR SHIFTER GX Eagle 12speed With MMX Clamp |

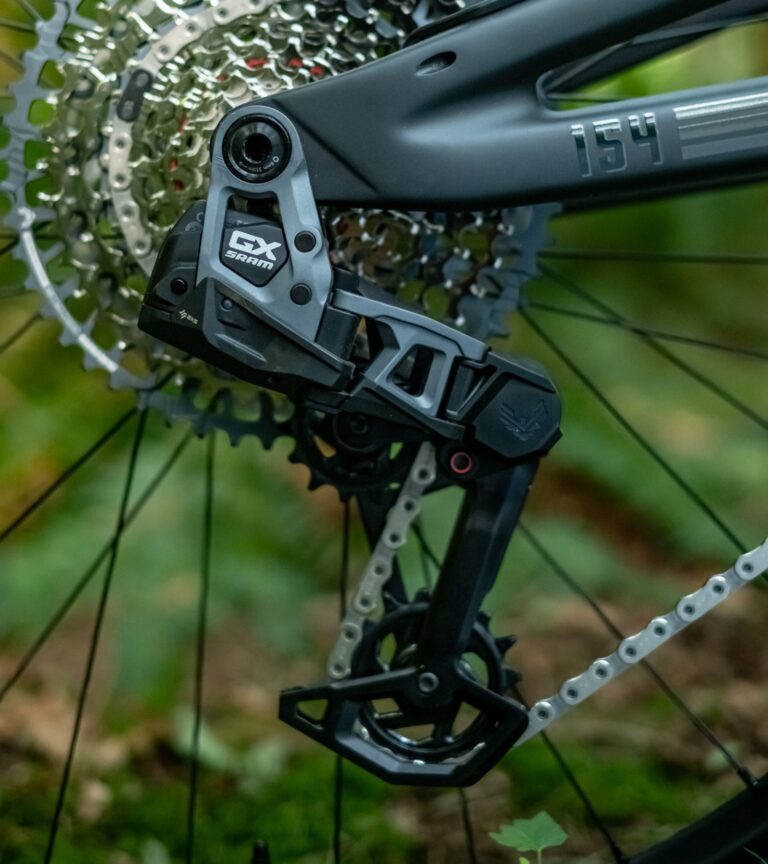

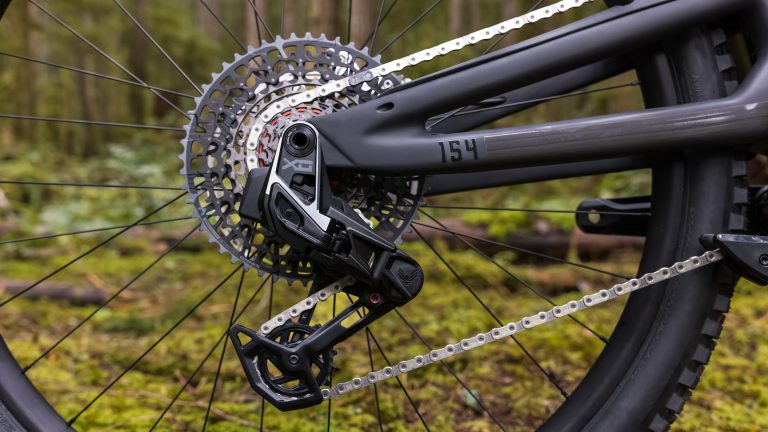

REAR DERAILLEUR |
REAR DERAILLEUR |

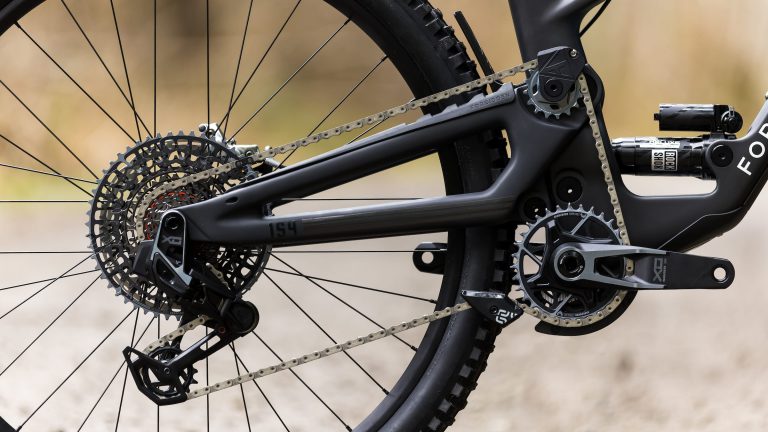

REAR DERAILLEUR SRAM X0 AXS T-Type 12speed Hangerless Interface | Magic Wheel | Overload Clutch | Replaceable Skid Plates |
REAR DERAILLEUR SRAM GX AXS AXS T-Type 12speed Hangerless Interface | Overload Clutch | Replaceable Skid Plates |
REAR DERAILLEUR GX Eagle 12speed |
CASSETTE |
CASSETTE |
CASSETTE SRAM X0 T-Type 10-52T 12speed 12speed | XD Fit | 10-12-14-16-18-21-24-28-32-38-44-52T |
CASSETTE SRAM GX AXS T-Type 10-52T 12speed 12speed | XD Fit | 10-12-14-16-18-21-24-28-32-38-44-52T |
CASSETTE GX Eagle 12speed 12speed | XD Fit | 10-12-14-16-18-21-24-28-32-36-42-52T |
CHAIN |
CHAIN |
CHAIN SRAM GX Transmission Flattop 12speed 12speed | Links = S1:130 / S2:130 / S3:132 / S4:134 |
CHAIN SRAM GX Transmission Flattop 12speed 12speed | Links = S1:130 / S2:130 / S3:132 / S4:134 |
CHAIN GX Eagle 12speed 12speed | Links = S1:128 / S2:130 / S3:132 / S4:134 |

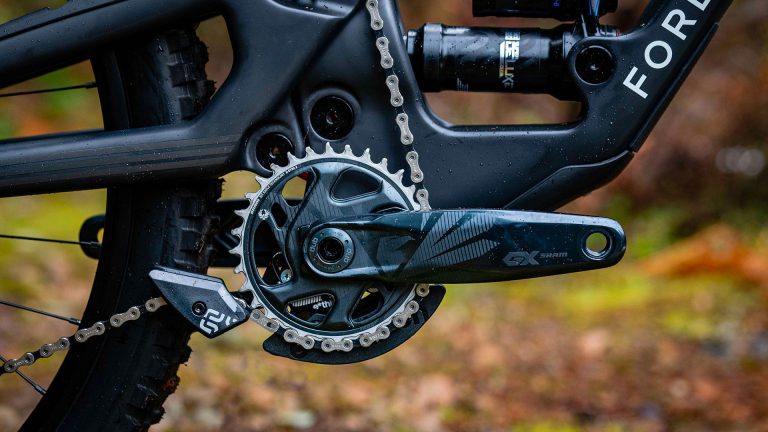

CRANKSET |
CRANKSET |

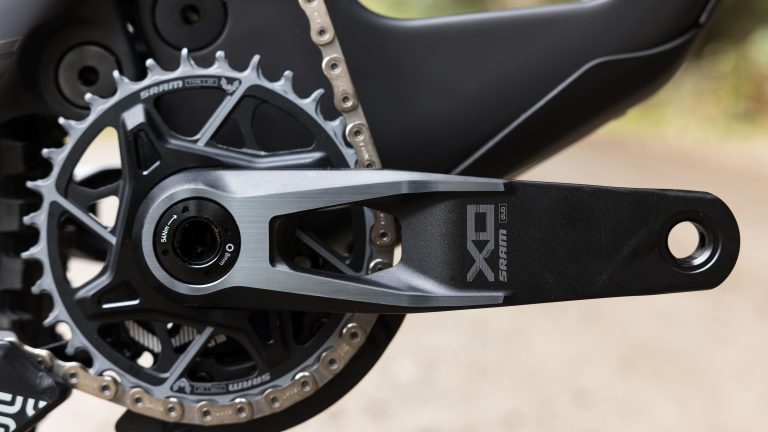

CRANKSET SRAM X0 Eagle 32T - 165mm 165mm All Sizes | 55mm Chainline | Black |

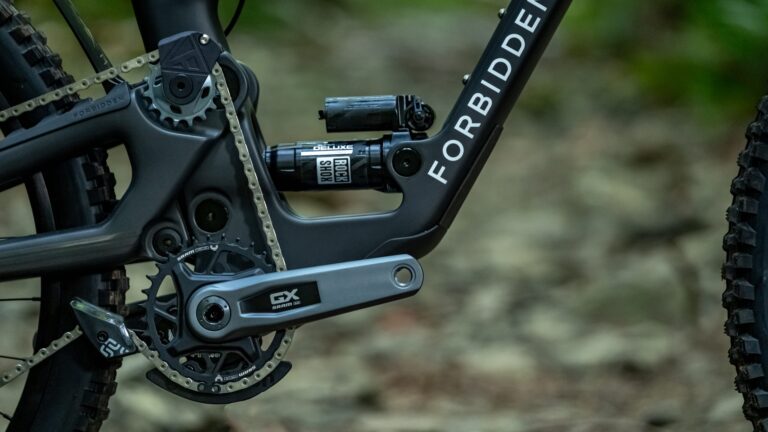

CRANKSET SRAM GX AXS Eagle 32T - 165mm 165mm All Sizes | Grey |
CRANKSET SRAM GX Eagle - 165mm S1 30T S2/S3/S4 32t Chainring | 165mm All Sizes | Grey |
PEDALS |
PEDALS |
PEDALS Not included |
PEDALS Not included |
PEDALS Not included |

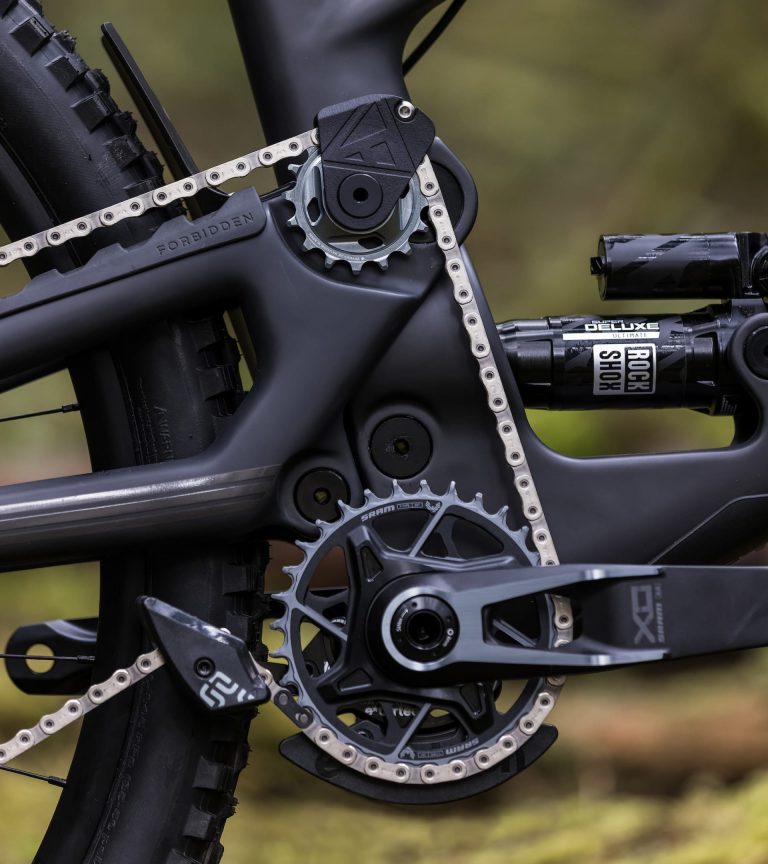

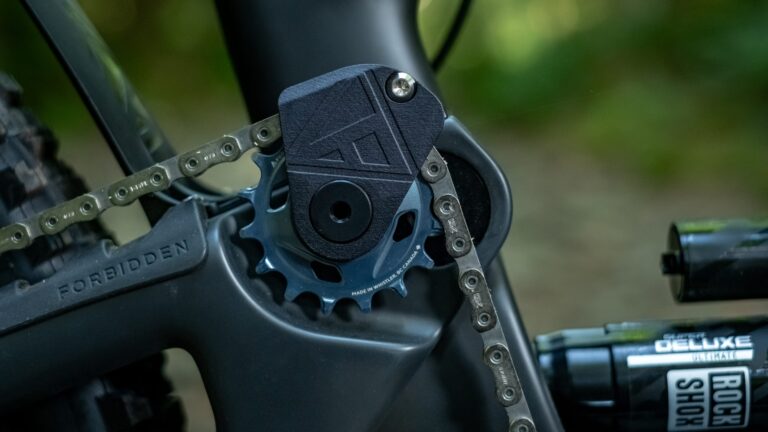

UPPER CHAIN GUIDE |
UPPER CHAIN GUIDE |
UPPER CHAIN GUIDE |
UPPER CHAIN GUIDE |
UPPER CHAIN GUIDE |
LOWER CHAIN GUIDE |
LOWER CHAIN GUIDE |
LOWER CHAIN GUIDE |
LOWER CHAIN GUIDE |
LOWER CHAIN GUIDE |
BOTTOM BRACKET |
BOTTOM BRACKET |
BOTTOM BRACKET SRAM DUB Threaded BSA Wide 28.99mm Spindle | DUB | Threaded BSA |
BOTTOM BRACKET SRAM DUB Threaded BSA Wide 28.99mm Spindle | DUB | Threaded BSA |
BOTTOM BRACKET SRAM DUB Threaded BSA Wide 28.99mm Spindle | DUB | Threaded BSA |
FRONT HUB |
FRONT HUB |
FRONT HUB Industry 9 1/1 Front Hub 110x15mm | 28hole | 6-Bolt | Black Anodized |
FRONT HUB Industry 9 1/1 Front Hub 110x15mm | 28hole | 6-Bolt | Black Anodized |
FRONT HUB Crankbrothers Synthesis Enduro Std 110x15mm | 28hole | 6-Bolt | Black Anodized |
FRONT AXLE |
FRONT AXLE |
FRONT AXLE Maxle Stealth |
FRONT AXLE Maxle Stealth |
FRONT AXLE Maxle Stealth |
REAR HUB |
REAR HUB |
REAR HUB Industry 9 1/1 Rear Hub XD Driver | 148x12mm | 32hole | 6-Bolt | Black Anodized Decal |
REAR HUB Industry 9 1/1 Rear Hub XD Driver | 148x12mm | 32hole | 6-Bolt | Black Anodized Decal |
REAR HUB Crankbrothers Synthesis Enduro Std XD Driver | 148x12mm | 32hole | 6-Bolt | Black Anodized Decal |
REAR AXLE |
REAR AXLE |
REAR AXLE Burgtec 180 x 1.0mm Axle UDH |
REAR AXLE Burgtec 180 x 1.0mm Axle UDH |
REAR AXLE Burgtec 180 x 1.0mm Axle UDH |
SPOKES |
SPOKES |
SPOKES Sapim D-Light D-Light 2.0/1.65/2.0mm | Double Butted | Black ED Coated Stainless | Black Brass 14mm Nipples |
SPOKES Sapim D-Light D-Light 2.0/1.65/2.0mm | Double Butted | Black ED Coated Stainless | Black Brass 14mm Nipples |
SPOKES Sapim D-Light D-Light 2.0/1.65/2.0mm | Double Butted | Black ED Coated Stainless | Black Brass 14mm Nipples |
RIMS |
RIMS |
RIMS Crankbrothers Synthesis Enduro - Alloy Front 31.5mm / Rear 29.5mm Internal Width | Welded | Tubeless Ready | Black with Grey Graphics |
RIMS Crankbrothers Synthesis Enduro - Alloy Front 31.5mm / Rear 29.5mm Internal Width | Welded | Tubeless Ready | Black with Grey Graphics |
RIMS Crankbrothers Synthesis Enduro - Alloy Front 31.5mm / Rear 29.5mm Internal Width | Welded | Tubeless Ready | Black with Grey Graphics |
FRONT TIRE |
FRONT TIRE |
FRONT TIRE Maxxis Assegai - 3C Maxx Grip - EXO+ 29x2.5 | 3C MaxxGrip Rubber Compound | 120tpi | Folding | Tubeless Ready | EXO+ Casing |
FRONT TIRE Maxxis Assegai - 3C Maxx Grip - EXO+ 29x2.5 | 3C MaxxGrip Rubber Compound | 120tpi | Folding | Tubeless Ready | EXO+ Casing |
FRONT TIRE Maxxis Assegai - 3C Maxx Grip - EXO+ 29x2.5 | 3C MaxxGrip Rubber Compound | 120tpi | Folding | Tubeless Ready | EXO+ Casing |
REAR TIRE |
REAR TIRE |
REAR TIRE Maxxis DHRII - 3C MaxxTerra - Double Down 29/27.5 x 2.4 | 3C MaxxTerra Rubber Compound | 120tpi | Folding | Tubeless Ready | Double Down Casing |
REAR TIRE Maxxis DHRII - 3C MaxxTerra - Double Down 29/27.5 x 2.4 | 3C MaxxTerra Rubber Compound | 120tpi | Folding | Tubeless Ready | Double Down Casing |
REAR TIRE Maxxis DHRII - 3C MaxxTerra - Double Down 29/27.5 x 2.4 | 3C MaxxTerra Rubber Compound | 120tpi | Folding | Tubeless Ready | Double Down Casing |
Included |
Included |
Included Stans Sealant - 200ml |
Included Stans Sealant - 200ml |
Included Stans Sealant - 200ml |
Included |
Included |
Included SRAM AXS EP Powerpack 1 Battery |
Included SRAM AXS EP Powerpack 1 Battery |
Included |
*Please note: we make every effort to ensure accuracy of the Spec Information, but they are subject to change.
*Please note: we make every effort to ensure accuracy of the Spec Information, but they are subject to change.
Size Guide
Size Guide
S
S
M
M
L
L
XL
XL
5'2
158cm
5'6
168cm
5'6
168cm
5'10
178cm
5'10
178cm
6'2
188cm
6'2
188cm
6'6
198cm
29" Geometry
29" Geometry
Fork Size 170mm | S | M | L | XL | |
---|---|---|---|---|---|
A | Reach | 440 | 462 | 484 | 506 |
B | Stack | 612 | 621 | 630 | 639 |
C | Hori. Top Tube Length | 593 | 617 | 641 | 665 |
D | Seat Tube Length | 400 | 420 | 450 | 490 |
E | Seat Tube Angle (Effective) | 76 | 76 | 76 | 76 |
F | Seat Tube Angle (Actual) | 73.0 | 74.7 | 76.1 | 77.1 |
G | Head Tube Length | 90 | 100 | 110 | 120 |
H | Head Tube Angle | 63.5 | 63.5 | 63.5 | 63.5 |
I | Front Center | 781 | 808 | 834 | 861 |
J | Rear Center | 422 | 436 | 450 | 464 |
K | Wheel base | 1203 | 1244 | 1284 | 1325 |
L | BB Drop | -26 | -26 | -26 | -26 |
M | BB Height | 347 | 347 | 347 | 347 |
N | Stand Over | 721 | 721 | 727 | 733 |
O | Fork Length | 583.71 | 583.71 | 583.71 | 583.71 |
P | Fork Offset | 44 | 44 | 44 | 44 |
MX Geometry
MX Geometry
Fork Size 170mm | S | M | L | XL | |
---|---|---|---|---|---|
A | Reach | 435 | 457 | 479 | 501 |
B | Stack | 615 | 625 | 634 | 643 |
C | Hori. Top Tube Length | 594 | 618 | 642 | 666 |
D | Seat Tube Length | 400 | 420 | 450 | 490 |
E | Seat Tube Angle (Effective) | 75.5 | 75.6 | 75.6 | 75.6 |
F | Seat Tube Angle (Actual) | 72.6 | 74.3 | 75.7 | 76.7 |
G | Head Tube Length | 90 | 100 | 110 | 120 |
H | Head Tube Angle | 63.0 | 63.1 | 63.1 | 63.1 |
I | Front Center | 781 | 808 | 834 | 861 |
J | Rear Center | 418 | 432 | 446 | 460 |
K | Wheel base | 1200 | 1240 | 1281 | 1321 |
L | BB Drop | -19.9 | -19.9 | -19.9 | -19.9 |
M | BB Height | 340.7 | 340.7 | 340.7 | 340.7 |
N | Stand Over | 721 | 721 | 727 | 733 |
O | Fork Length | 583.71 | 583.71 | 583.71 | 583.71 |
P | Fork Offset | 44 | 44 | 44 | 44 |
The industry’s only TRULYPROPORTIONAL geometry.
The industry’s only TRULY PROPORTIONAL geometry.
Things You Should Know
Things You Should Know
Things YouShould Know
Things You Should Know

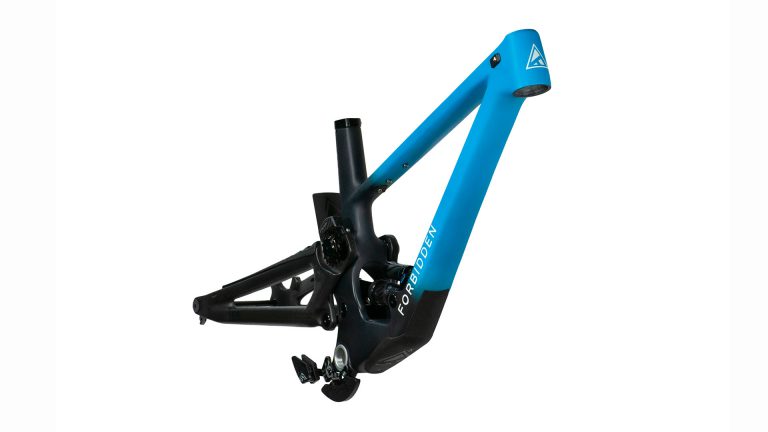

Carbon Construction
Carbon Construction
As the heart of any frame, the quality of the carbon construction is paramount to both ride quality and durability. To this end, we partnered with one of the leading manufacturers in the business which allows us to stand behind our product 100%.
As the heart of any frame, the quality of the carbon construction is paramount to both ride quality and durability. To this end, we partnered with one of the leading manufacturers in the business which allows us to stand behind our product 100%.
Hardware
Hardware
Our hardware is a testament to our attention to detail, from the forged Rate Control linkages to the custom stainless steel screws that hold everything together, we have spared no expense in the finishing of the Dreadnought leaving nothing to chance.
Our hardware is a testament to our attention to detail, from the forged Rate Control linkages to the custom stainless steel screws that hold everything together, we have spared no expense in the finishing of the Dreadnought leaving nothing to chance.
Ziggy Link Compatible
Ziggy Link Compatible
Mullet curious or a die-hard convert, the Dreadnought shares the same Rate Control Linkage system as its little brother, the Druid, and therefore accepts our ‘corner slaying conversion kit’, also known as Ziggy Link.
Mullet curious or a die-hard convert, the Dreadnought shares the same Rate Control Linkage system as its little brother, the Druid, and therefore accepts our ‘corner slaying conversion kit’, also known as Ziggy Link.

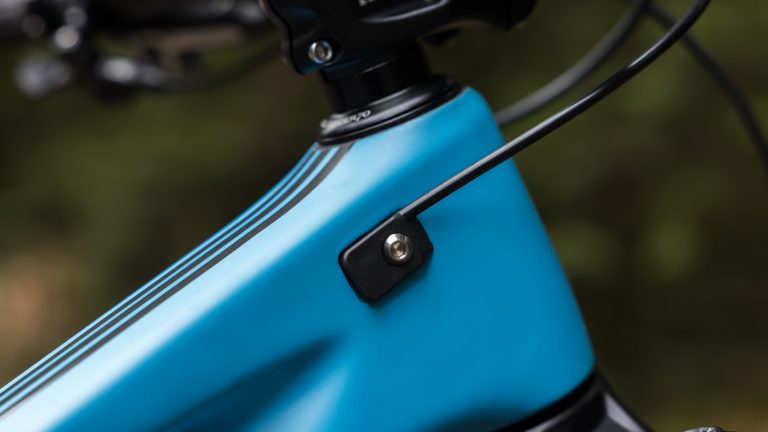

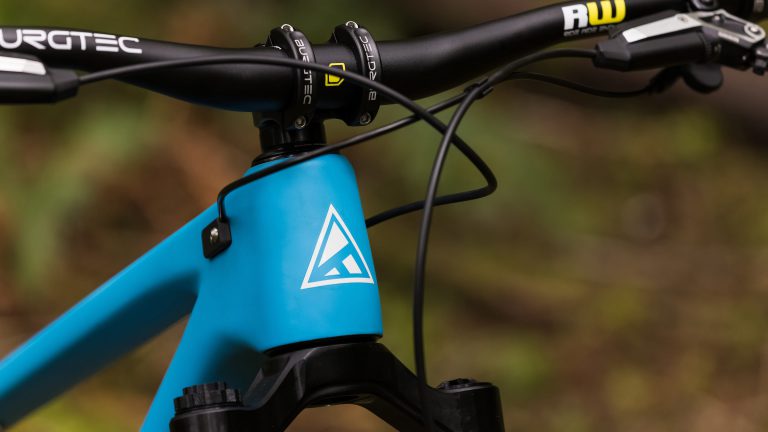

Cable Routing
Cable Routing
We don’t discriminate against rightys or leftys and our adaptable cable routing allows you to neatly route the Dreadnought’s cables and hoses no matter where in the world you come from or with what hand you operate your rear brake with.
We don’t discriminate against rightys or leftys and our adaptable cable routing allows you to neatly route the Dreadnought’s cables and hoses no matter where in the world you come from or with what hand you operate your rear brake with.

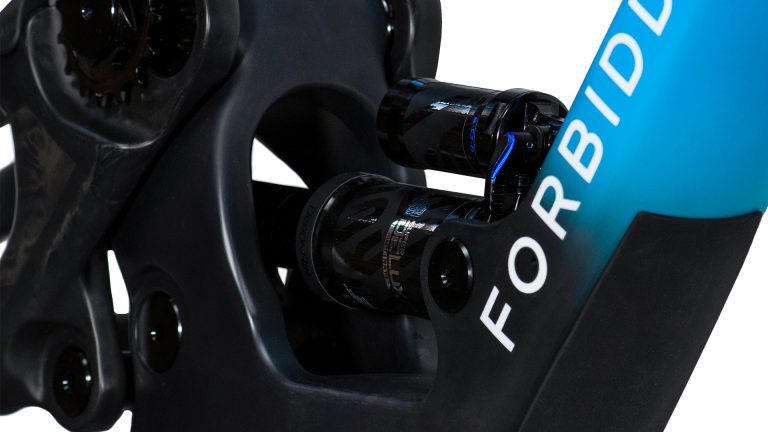

Rear Shock Compatibility
Rear Shock Compatibility

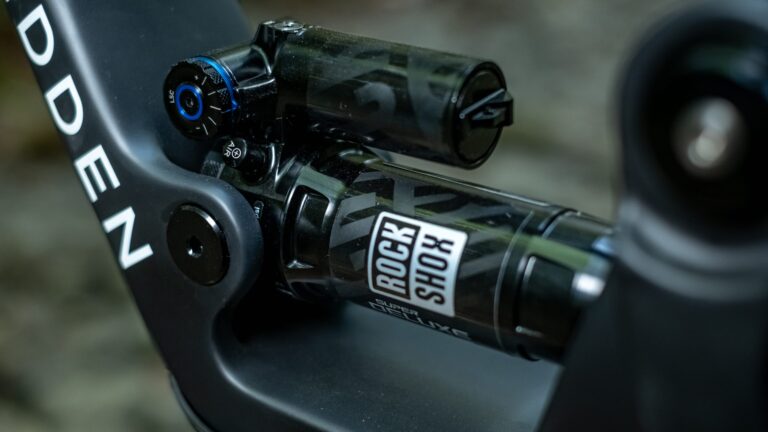

The Dreadnought comes equipped with a RockShox Super Deluxe Ultimate Air RCT, but if your heart is set on something else, we have you covered with more options, including a custom-tuned Push ElevenSix, Fox Float X2 or Ohlins TTX2 Air.
The Dreadnought comes equipped with a RockShox Super Deluxe Ultimate Air RCT, but if your heart is set on something else, we have you covered with more options, including a custom-tuned Push ElevenSix, Fox Float X2 or Ohlins TTX2 Air.
Water Bottle Fitment
Water Bottle Fitment
Even our smallest Dreadnought frame size can fit a full-size 26oz water bottle, regardless of your rear shock reservoir. Remember, hydration is your friend, but sweaty backs most definitely are not.
Even our smallest Dreadnought frame size can fit a full-size 26oz water bottle, regardless of your rear shock reservoir. Remember, hydration is your friend, but sweaty backs most definitely are not.

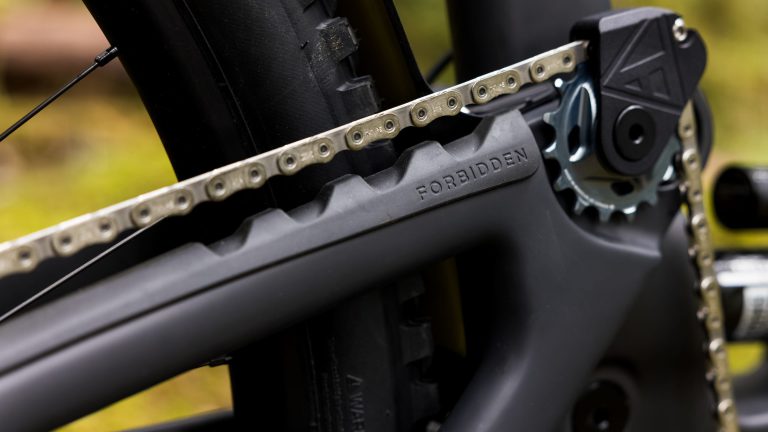

Frame Protection
Frame Protection
A quiet bike is a fast bike and a clean bike is less prone to problems, so we developed a full suite of custom frame protection to keep the noisy bits quiet, the hard to clean bits free from crud and that precious carbon protected from flying debris.
A quiet bike is a fast bike and a clean bike is less prone to problems, so we developed a full suite of custom frame protection to keep the noisy bits quiet, the hard to clean bits free from crud and that precious carbon protected from flying debris.
Chain Guide
Chain Guide
All that high pivot goodness requires a solid chain retention solution so we turned to the chainguide experts over at ethirteen to develop a retention system specifically for the Dreadnought.
All that high pivot goodness requires a solid chain retention solution so we turned to the chainguide experts over at ethirteen to develop a retention system specifically for the Dreadnought.
Accessory Mount
Accessory Mount
The ‘under the top tube’ mounting screws allow for the attachment of various accessory mounting solutions; pump, tools, a banana, the kitchen sink, go crazy, just don’t hang a water bottle there, please.
The ‘under the top tube’ mounting screws allow for the attachment of various accessory mounting solutions; pump, tools, a banana, the kitchen sink, go crazy, just don’t hang a water bottle there, please.
Sensible Standards
Sensible Standards
Sometimes change isn’t progress. We embrace standards with actual benefits, such as a UDH, threaded 73mm BB, 148mm rear hub spacing, a 31.6mm seatpost, a ZS44/ZS56 headset and a 205 x 65 Trunnion shock.
Sometimes change isn’t progress. We embrace standards with actual benefits, such as a UDH, threaded 73mm BB, 148mm rear hub spacing, a 31.6mm seatpost, a ZS44/ZS56 headset and a 205 x 65 Trunnion shock.
