Who says an established canine can’t learn new tricks?
We took the modern wolf in sheep’s clothing and gave it a brand-new bag of high-power, high-tech tricks.

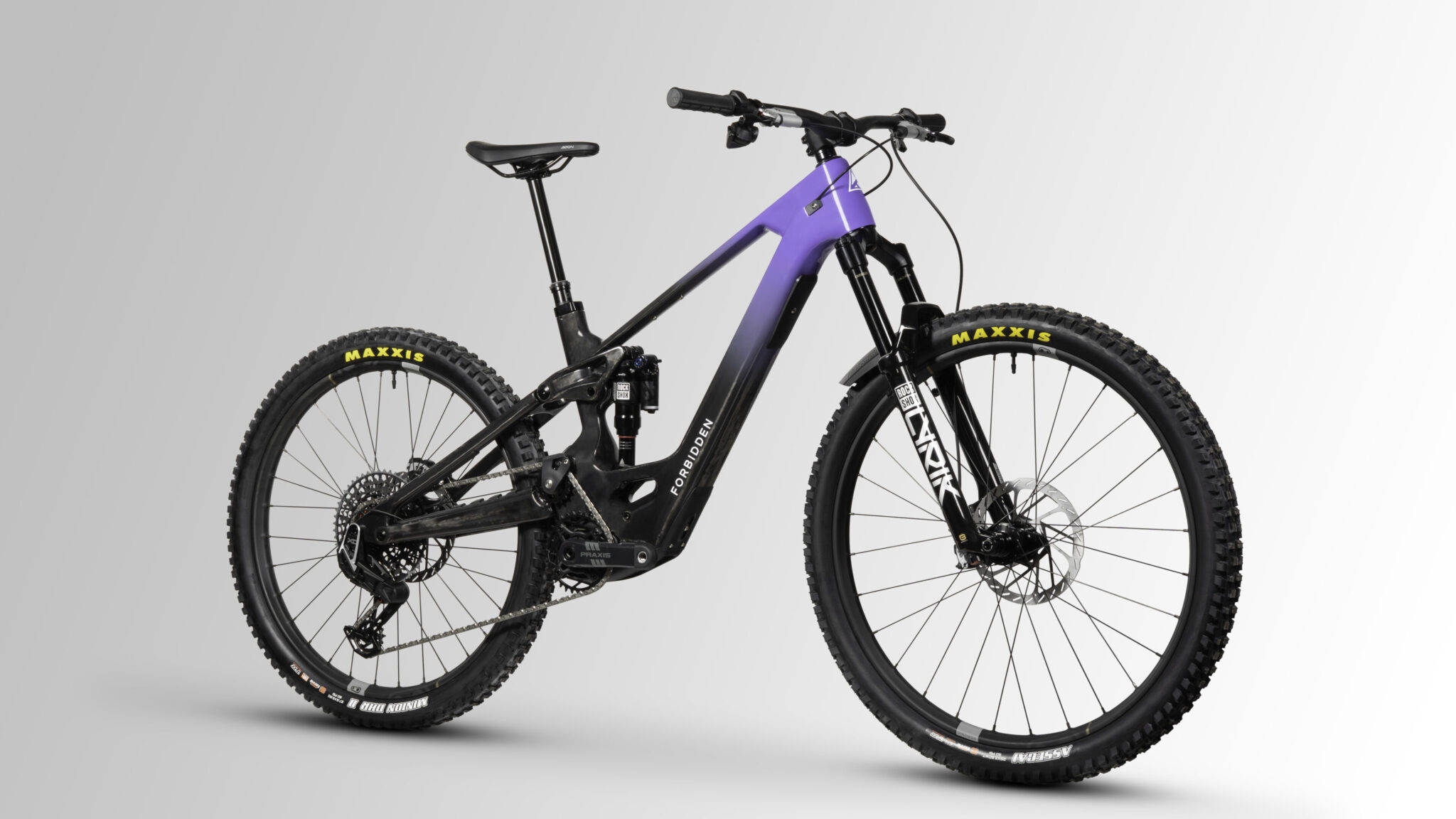

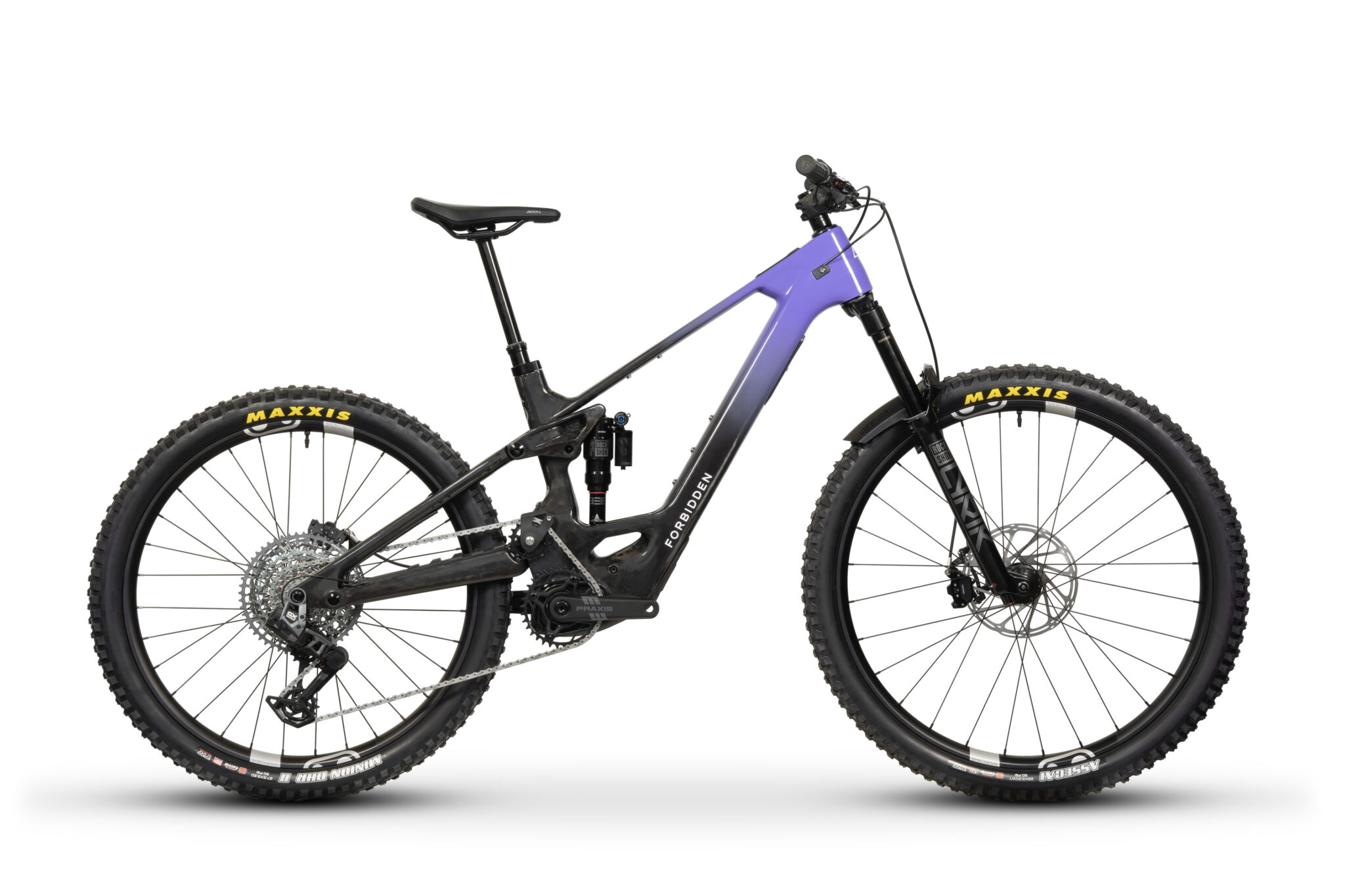

Introducing Druid E. The proportionally sized, full-power e-MTB lineup we’ve all been waiting for. Available in two styles: Druid LitE and Druid CorE. Both equipped with the revolutionary Avinox drive system. A 2.52 kg (5.5 lbs) package that delivers 100 Nm of max continuous torque (120 Nm on boost), 850 W peak power (1,000 W on boost), the ability to run 600 Wh or 800 Wh batteries, and the fastest charging available on the market.
Finally, a proportionally sized e-MTB that effortlessly shuttles you to the top of any climb and delivers the class-defying descending prowess you know and love from Forbidden’s high-pivot Trifecta suspension platform. A bike you’ll actually love riding down as much as you do on the way up.
Who says an established canine can’t learn new tricks?
We took the modern wolf in sheep’s clothing and gave it a brand-new bag of high-power, high-tech tricks.
Introducing Druid E. The proportionally sized, full-power e-MTB lineup we’ve all been waiting for. Available in two styles: Druid LitE and Druid CorE. Both equipped with the revolutionary Avinox drive system. A 2.52 kg (5.5 lbs) package that delivers 100 Nm of max continuous torque (120 Nm on boost), 850 W peak power (1,000 W on boost), the ability to run 600 Wh or 800 Wh batteries, and the fastest charging available on the market.
Finally, a proportionally sized e-MTB that effortlessly shuttles you to the top of any climb and delivers the class-defying descending prowess you know and love from Forbidden’s high-pivot Trifecta suspension platform. A bike you’ll actually love riding down as much as you do on the way up.
-
Intended Use
All Mountain
-
Suspension
140mm Rear / 150mm Front
-
Wheel Size
Mixed Wheel (MX)
-
Motor | Battery
Avinox M1 105 Nm 850 W | 600 Wh
Choose Your Dream Ride
Choose Your Dream Ride
Ride The Lightning
$14,899 CAD
$14,899 CAD
Ride The Lightning
$12,499 CAD
$12,499 CAD
Ride The Lightning
$11,399 CAD
$11,399 CAD
$14,899 CAD
$14,899 CAD
$12,499 CAD
$12,499 CAD
$11,399 CAD
$11,399 CAD
Scroll
Do you want to understand thescience behind the witchcraft?
Do you want to understand the science behind the witchcraft?
Druid LitE Specs
Druid LitE Specs
|
Find a dealer Druid Lite 1$14,899 CAD |
Find a dealer Druid Lite 2$12,499 CAD |
Find a dealer Druid Lite 3$11,399 CAD |
|
|---|---|---|---|
|
FRAME |
FRAME Druid E Full Carbon - 140mm Travel High-Modulus Carbon Fiber | Trifecta V3 High Pivot 4-Bar Suspension | One Ride Geometry | Enduro Max Bearings |
FRAME Druid E Full Carbon - 140mm Travel High-Modulus Carbon Fiber | Trifecta V3 High Pivot 4-Bar Suspension | One Ride Geometry | Enduro Max Bearings |
FRAME Druid E Full Carbon - 140mm Travel High-Modulus Carbon Fiber | Trifecta V3 High Pivot 4-Bar Suspension | One Ride Geometry | Enduro Max Bearings |
|
FORK |
FORK RockShox Lyrik Ultimate 150mm Travel | Charger 3 RC2 W/ButterCup | Debonair + | Rebound, HSC/LSC Adjust | Pressure Relief Valves | 44mm Offset | Maxle Stealth Thru-Axle | Gloss Black |
FORK RockShox Lyrik Select+ 150mm Travel | Charger RC | Debonair + | LSR/LSC Adjust | 44mm Offset | Maxle Stealth Thru-Axle | Gloss Black |
FORK RockShox Lyrik Select+ 150mm Travel | Charger RC | Debonair + | LSR/LSC Adjust | 44mm Offset | Maxle Stealth Thru-Axle | Gloss Black |
|
REAR SHOCK |
REAR SHOCK RockShox Super Deluxe Ultimate DebonAir+ | RC2T Damper | Rebound, HSC LSC Adjust | Threshold Lever | Bearing Adapter Eyelets | R55 C26 w/ Hydraulic Bottom Out | 210x50mm |
REAR SHOCK RockShox Super Deluxe Select+ DebonAir+ | Rebound Adjust | Threshold Lever | Bearing Adapter Eyelets| R55 C26 Tune w/ Hydraulic Bottom Out | 210x50mm |
REAR SHOCK RockShox Super Deluxe Select+ DebonAir+ | Rebound Adjust | Threshold Lever | Bearing Adapter Eyelets| R55 C26 Tune w/ Hydraulic Bottom Out | 210x50mm |
|
HEADSET |
HEADSET FSA Orbit ZS Headset SHIS: ZS44/28.6|ZS56/40 | Sealed Cartridge Bearings | 6000 Series Alloy Cups And Materials | Sealed Steel Crown Race |
HEADSET FSA Orbit ZS Headset SHIS: ZS44/28.6|ZS56/40 | Sealed Cartridge Bearings | 6000 Series Alloy Cups And Materials | Sealed Steel Crown Race |
HEADSET FSA Orbit ZS Headset SHIS: ZS44/28.6|ZS56/40 | Sealed Cartridge Bearings | 6000 Series Alloy Cups And Materials | Sealed Steel Crown Race |
|
GRIPS |
GRIPS Forbidden 128mm length | Single Sided Lock-On | Black |
GRIPS Forbidden 128mm length | Single Sided Lock-On | Black |
GRIPS Forbidden 128mm length | Single Sided Lock-On | Black |
|
HANDLE BARS |
HANDLE BARS OneUp Carbon 800mm Width | S1-S2:20mm / S3-S4:35mm Rise | 8° Backsweep 5° Upward | 35mm Bar Bore / Matte Carbon |
HANDLE BARS OneUp Alloy 800mm Width | S1-S2:20mm / S3-S4:35mm Rise | 8° Backsweep 5° Upward | 35mm Bar Bore | 7075 Aluminum / Black |
HANDLE BARS Forbidden 800mm Width | S1-S2:22.5 / S3-S4:38mm Rise | 9° Backsweep 5° Upward | 35mm Bar Bore | Black |
|
STEM |
STEM OneUp 40mm Length | 35mm Bar Clamp | Black | Forged 6061 Aluminum |
STEM OneUp 40mm Length | 35mm Bar Clamp | Black | Forged 6061 Aluminum |
STEM Forbidden 40mm Length | 35mm Bar Clamp | Black |
|
SEAT POST |
SEAT POST OneUp Dropper Post 31.6mm | Size Specific Travel S1:150mm / S2:180mm / S3:210mm / S4:240mm |
SEAT POST OneUp Dropper Post 31.6mm | Size Specific Travel S1:150mm / S2:180mm / S3:210mm / S4:240mm |
SEAT POST TranzX +RAD Travel Adjust Dropper 31.6mm | Size Specific Travel S1:150mm / S2:170mm / S3:200mm / S4:230mm |
|
SEAT POST REMOTE |
SEAT POST REMOTE OneUp MMX UFT Lever Aluminum Remote | Oversized Bearing | MatchMaker X Integrated Dropper Remote |
SEAT POST REMOTE OneUp MMX UFT Lever Aluminum Remote | Oversized Bearing | MatchMaker X Integrated Dropper Remote |
SEAT POST REMOTE TranzX GLS Aluminum Remote | Bearing | MatchMaker X Integrated Dropper Remote |
|
SEAT POST CLAMP |
SEAT POST CLAMP Forbidden 7075 CNC Aluminum | 34.9mm | Black Anodized |
SEAT POST CLAMP Forbidden 7075 CNC Aluminum | 34.9mm | Black Anodized |
SEAT POST CLAMP Forbidden 7075 CNC Aluminum | 34.9mm | Black Anodized |
|
SADDLE |
SADDLE Fizik Terra Aidon X5 145mm Width | X5: Ride-Compliant Fiber Reinforced Nylon Shell And S-Alloy Rail | Black |
SADDLE Fizik Terra Aidon X5 145mm Width | X5: Ride-Compliant Fiber Reinforced Nylon Shell And S-Alloy Rail | Black |
SADDLE Forbidden 143mm Width | Atmos Shaping | Cro-Mo Rail | Black |
|
FRONT BRAKE |
FRONT BRAKE SRAM Maven Ultimate 4-Piston Stealth Body | SwingLink | Reach & Contact Adjustment | Organic Pads |
FRONT BRAKE SRAM Maven Silver 4-Piston Stealth Body | SwingLink | Reach & Contact Adjustment | Organic Pads |
FRONT BRAKE SRAM Maven 4-Piston Stealth Body | Reach Adjustment | Organic Pads |
|
FRONT BRAKE ROTOR |
FRONT BRAKE ROTOR SRAM HS2 - 200mm 6-Bolt | 2.0mm Thickness |
FRONT BRAKE ROTOR SRAM Centerline - 200mm 6-Bolt | 2.0mm Thickness |
FRONT BRAKE ROTOR SRAM Centerline - 200mm 6-Bolt | 2.0mm Thickness |
|
REAR BRAKE |
REAR BRAKE SRAM Maven Ultimate 4-Piston Stealth Body | SwingLink | Reach & Contact Adjustment | Organic Pads |
REAR BRAKE SRAM Maven Silver 4-Piston Stealth Body | SwingLink | Reach & Contact Adjustment | Organic Pads |
REAR BRAKE SRAM Maven 4-Piston Stealth Body | Reach Adjustment | Organic Pads |
|
REAR BRAKE ROTOR |
REAR BRAKE ROTOR SRAM HS2 - 200mm 6-Bolt | 2.0mm Thickness |
REAR BRAKE ROTOR SRAM Centerline - 200mm 6-Bolt | 2.0mm Thickness |
REAR BRAKE ROTOR SRAM Centerline - 180mm 6-Bolt | 2.0mm Thickness |
|
REAR SHIFTER |
REAR SHIFTER SRAM Pod Rocker With MMX Clamp | AXS Controller | Rocking Actuation |
REAR SHIFTER SRAM Pod Rocker With MMX Clamp | AXS Controller | Rocking Actuation |
REAR SHIFTER SRAM Eagle 90 With MMX Clamp | Single Click | Two Button Design |
|
REAR DERAILLEUR |
REAR DERAILLEUR SRAM X0 AXS T-Type 12speed Hangerless Interface | Overload Clutch | Replaceable Skid Plates |
REAR DERAILLEUR SRAM GX AXS T-Type 12speed Hangerless Interface | Overload Clutch | Replaceable Skid Plates |
REAR DERAILLEUR SRAM Eagle 90 T-Type 12speed Hangerless Interface | Replaceable Skid Plates |
|
CASSETTE |
CASSETTE SRAM X0 T-Type 10-52T 12speed 12speed | XD Fit | 10-12-14-16-18-21-24-28-32-38-44-52T |
CASSETTE SRAM GX T-Type 10-52T 12speed 12speed | XD Fit | 10-12-14-16-18-21-24-28-32-38-44-52T |
CASSETTE SRAM Eagle 70 T-Type 10-52T 12speed 12speed | HG Fit | 10-12-14-16-18-21-24-28-32-38-44-52T |
|
CHAIN |
CHAIN SRAM GX Transmission Flattop - 12speed 12speed | Links = S1:120 / S2:122 / S3:124 / S4:126 |
CHAIN SRAM GX Transmission Flattop - 12speed 12speed | Links = S1:120 / S2:122 / S3:124 / S4:126 |
CHAIN SRAM GX Transmission Flattop - 12speed 12speed | Links = S1:120 / S2:122 / S3:124 / S4:126 |
|
CRANKSET |
CRANKSET Praxis EC-Type 2 Carbon 155mm | SRAM 34T Chainring | 55mm Chainline | Gloss Carbon |
CRANKSET Praxis EC-Type 2 Alloy 155mm | SRAM 34T Chainring | 55mm Chainline | Black |
CRANKSET Praxis EC-Type 2 Alloy 155mm | SRAM 34T Chainring | 55mm Chainline | Black |
|
PEDALS |
PEDALS Not included |
PEDALS Not included |
PEDALS Not included |
|
UPPER CHAIN GUIDE |
UPPER CHAIN GUIDE Forbidden Race Guide |
UPPER CHAIN GUIDE Forbidden Race Guide |
UPPER CHAIN GUIDE Forbidden Race Guide |
|
LOWER CHAIN GUIDE |
LOWER CHAIN GUIDE |
LOWER CHAIN GUIDE |
LOWER CHAIN GUIDE |
|
BOTTOM BRACKET |
BOTTOM BRACKET Avinox ISIS Interface |
BOTTOM BRACKET Avinox ISIS Interface |
BOTTOM BRACKET Avinox ISIS Interface |
|
FRONT HUB |
FRONT HUB Crank Brothers 110x15mm | 28-Hole | 6-Bolt | Black Anodized |
FRONT HUB Crank Brothers 110x15mm | 28-Hole | 6-Bolt | Black Anodized |
FRONT HUB Novatec 110x15mm | 32Hole | 6-Bolt | Black Anodized |
|
FRONT AXLE |
FRONT AXLE Maxle Stealth Included With Fork |
FRONT AXLE Maxle Stealth Included With Fork |
FRONT AXLE Maxle Stealth Included With Fork |
|
REAR HUB |
REAR HUB Crank Brothers Ratchet Internals | XD Driver | 148x12mm | 32hole | 6-Bolt | Black Anodized Decal |
REAR HUB Crank Brothers Ratchet Internals | XD Driver | 148x12mm | 32hole | 6-Bolt | Black Anodized Decal |
REAR HUB DT Swiss 370 Hybrid Ratchet Internals | HG Driver | 148x12mm | 32-Hole | 6-Bolt | |
|
REAR AXLE |
REAR AXLE SRAM 180 x 1.0mm Axle UDH |
REAR AXLE SRAM 180 x 1.0mm Axle UDH |
REAR AXLE SRAM 180 x 1.0mm Axle UDH |
|
SPOKES |
SPOKES Sapim CX Ray/Race Front: CX Ray 2.0/0.9/2.2/2.0mm / Rear: Race 2.0/1.25/2.25/2.0mm | Aero | Black ED Coated Stainless | Black Brass 14mm Nipples |
SPOKES Sapim Race Race 2.0/1.8/2.0mm | Double Butted | Black ED Coated Stainless | Black Brass 14mm Nipples |
SPOKES Pillar Racing Spoke 2.0/2.0/2.3mm | Double Butted | Black ED Coated Stainless | Black Brass 14mm Nipples |
|
RIMS |
RIMS Crankbrothers Synthesis - E-Bike - Carbon Front 31.5mm / Rear 29.5mm Internal Width | Tubeless Ready | Black with Grey Graphics |
RIMS Crankbrothers Synthesis - E-Bike - Alloy Front 31.5mm / Rear 29.5mm Internal Width | Tubeless Ready | Black with Grey Graphics |
RIMS Race Face ARC OFFSET ARC HD 30 29" Front / ARC HD 30 27.5" Rear | 30mm Internal Width | | Black with Grey Graphics |
|
FRONT TIRE |
FRONT TIRE Maxxis Assegai - 3C MaxxTerra - EXO 29 x 2.5 | 3C MaxxTerra Rubber Compound | 60tpi | Folding | Tubeless Ready | EXO Casing |
FRONT TIRE Maxxis Assegai - 3C MaxxTerra - EXO 29 x 2.5 | 3C MaxxTerra Rubber Compound | 60tpi | Folding | Tubeless Ready | EXO Casing |
FRONT TIRE Maxxis Assegai - 3C MaxxTerra - EXO 29 x 2.5 | 3C MaxxTerra Rubber Compound | 60tpi | Folding | Tubeless Ready | EXO Casing |
|
REAR TIRE |
REAR TIRE Maxxis Minion DHR2 - 3C MaxxTerra - EXO+ 27.5 x 2.5 | 3C MaxxTerra Rubber Compound | 120tpi | Folding | Tubeless Ready | EXO+ Casing |
REAR TIRE Maxxis Minion DHR2 - 3C MaxxTerra - EXO+ 27.5 x 2.5 | 3C MaxxTerra Rubber Compound | 120tpi | Folding | Tubeless Ready | EXO+ Casing |
REAR TIRE Maxxis Minion DHR2 - 3C MaxxTerra - EXO+ 27.5 x 2.5 | 3C MaxxTerra Rubber Compound | 120tpi | Folding | Tubeless Ready | DD Casing |
|
MOTOR |
MOTOR Avinox M1 Avinox M1 Drive Unit: 105 N·m | Avinox Screen: 2-inch OLED Control Display | Avinox Wireless Controllers: Right and left sides |
MOTOR Avinox M1 Avinox M1 Drive Unit: 105 N·m | Avinox Screen: 2-inch OLED Control Display | Avinox Wireless Controllers: Right and left sides |
MOTOR Avinox M1 27.5 x 2.5 | 3C MaxxTerra Rubber Compound | 120tpi | Folding | Tubeless Ready | EXO+ Casing |
|
BATTERY |
BATTERY Avinox Avinox Integrated Li-ion Battery: 600Wh | Voltage 35.9 V | Protection Rating IP56 | Capacity 16.7 Ah |
BATTERY Avinox Avinox Integrated Li-ion Battery: 600Wh | Voltage 35.9 V | Protection Rating IP56 | Capacity 16.7 Ah |
BATTERY Avinox Avinox Integrated Li-ion Battery: 600Wh | Voltage 35.9 V | Protection Rating IP56 | Capacity 16.7 Ah |
|
Included |
Included Avinox 168W Charger Approx. 4 h 45 min (0–100%)approx. 3 h 3 min (0–75%) |
Included Avinox 168W Charger Approx. 4 h 45 min (0–100%)approx. 3 h 3 min (0–75%) |
Included Avinox 168W Charger Approx. 4 h 45 min (0–100%)approx. 3 h 3 min (0–75%) |
|
Included |
Included AXS Extension Cord |
Included AXS Extension Cord |
Included Stans Sealant - 200ml |
|
Included |
Included Stans Sealant - 200ml |
Included Stans Sealant - 200ml |
Included |
*Please note: we make every effort to ensure accuracy of the Spec Information, but they are subject to change.
*Please note: we make every effort to ensure accuracy of the Spec Information, but they are subject to change.
Size Guide
Size Guide
S1
S1
S2
S2
S3
S3
S4
S4
5'2
158cm
5'6
168cm
5'6
168cm
5'10
178cm
5'10
178cm
6'2
188cm
6'2
188cm
6'6
198cm
MX Geometry
MX Geometry
| Fork Size 150mm | S1 | S2 | S3 | S4 | |
|---|---|---|---|---|---|
| A | Reach | 437 | 454 | 474 | 493 |
| B | Stack | 623 | 644 | 657 | 671 |
| C | Hori. Top Tube Length | 576 | 598 | 621 | 644 |
| D | Seat Tube Length | 400 | 420 | 440 | 470 |
| E | Seat Tube Angle (Effective) | 77.4 | 77.4 | 77.4 | 77.4 |
| F | Seat Tube Angle (Actual) | 71.5 | 73.3 | 75.2 | 76.8 |
| G | Head Tube Length | 100 | 123 | 138 | 153 |
| H | Head Tube Angle | 64.6 | 64.6 | 64.6 | 64.6 |
| I | Front Center | 762 | 788 | 814 | 841 |
| J | Rear Center | 427 | 441 | 456 | 470 |
| K | Wheel base | 1189 | 1229 | 1270 | 1311 |
| L | BB Drop | -29.9 | -29.9 | -29.9 | -29.9 |
| M | BB Height | 331 | 331 | 331 | 331 |
| N | Stand Over | 740 | 740 | 740 | 740 |
| O | Fork Length | 561 | 561 | 561 | 561 |
| P | Fork Offset | 44 | 44 | 44 | 44 |
Size Guide
MX Geometry
The industry’s only TRULYPROPORTIONAL geometry.
The industry’s only TRULY PROPORTIONAL geometry.
Things You Should Know
Things You Should Know
Things YouShould Know
Things You Should Know
01 Trifecta V3 Platform
02 Avinox Drive System
03 Touch Screen and Controls
04 AXS Extension Cord Compatible
05 Carbon Rocker Link

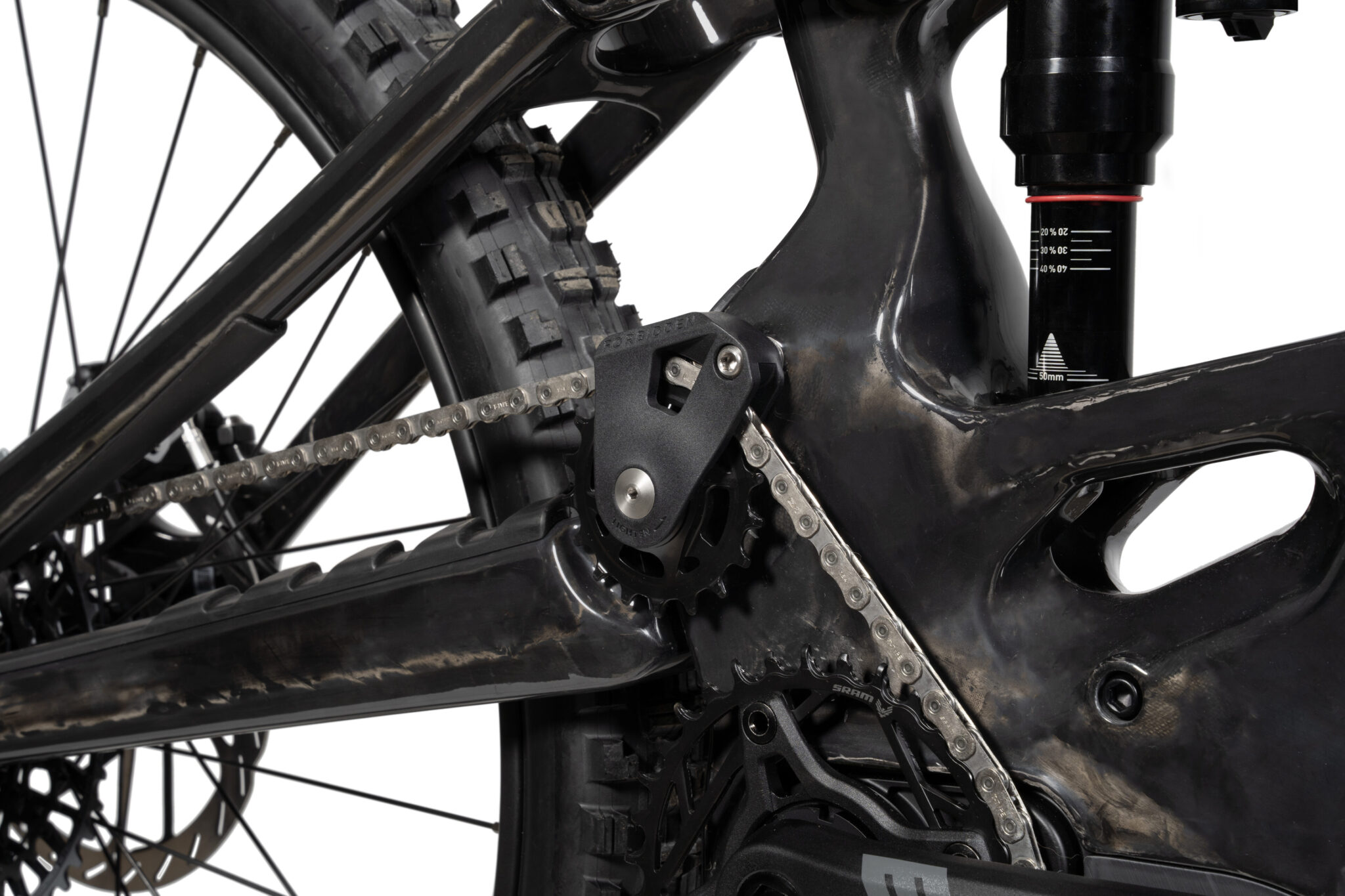

06 Idler Pulley
07 Custom Frame Protection

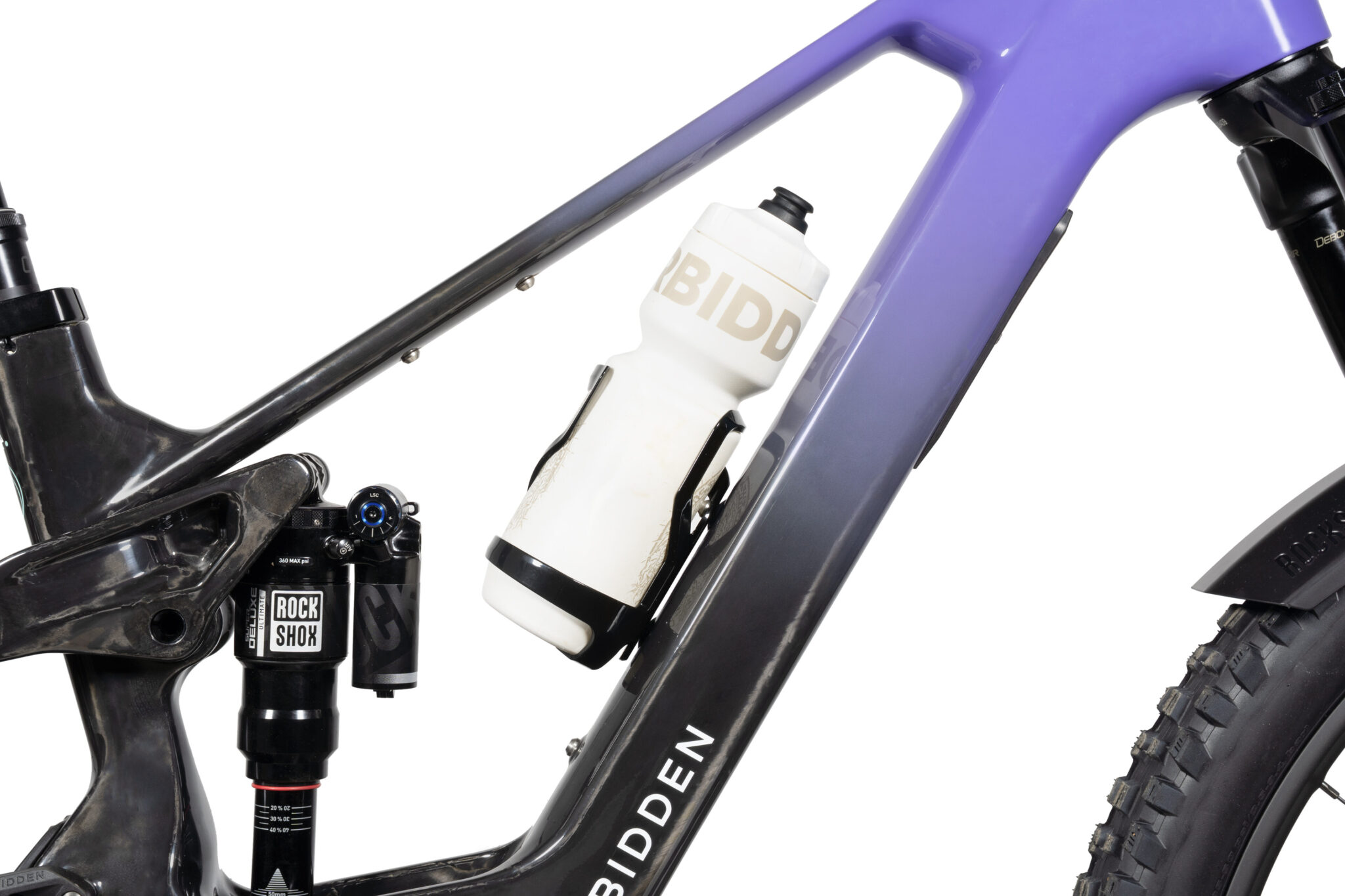

08 Waterbottle Fitment
01
Trifecta V3 Platform
Trifecta V3 Platform
The latest iteration of our Trifecta platform elevates the spellbinding ride characteristics you expect from a Forbidden to a new level. We’ve fine-tuned the rearward axle path, idler position, and kinematics (the holy trinity of ride characteristics) to deliver the best e-MTB we’ve ever ridden. The new platform also gives us more seat post insertion and allows us to neatly package the motor and battery.
The latest iteration of our Trifecta platform elevates the spellbinding ride characteristics you expect from a Forbidden to a new level. We’ve fine-tuned the rearward axle path, idler position, and kinematics (the holy trinity of ride characteristics) to deliver the best e-MTB we’ve ever ridden. The new platform also gives us more seat post insertion and allows us to neatly package the motor and battery.
02

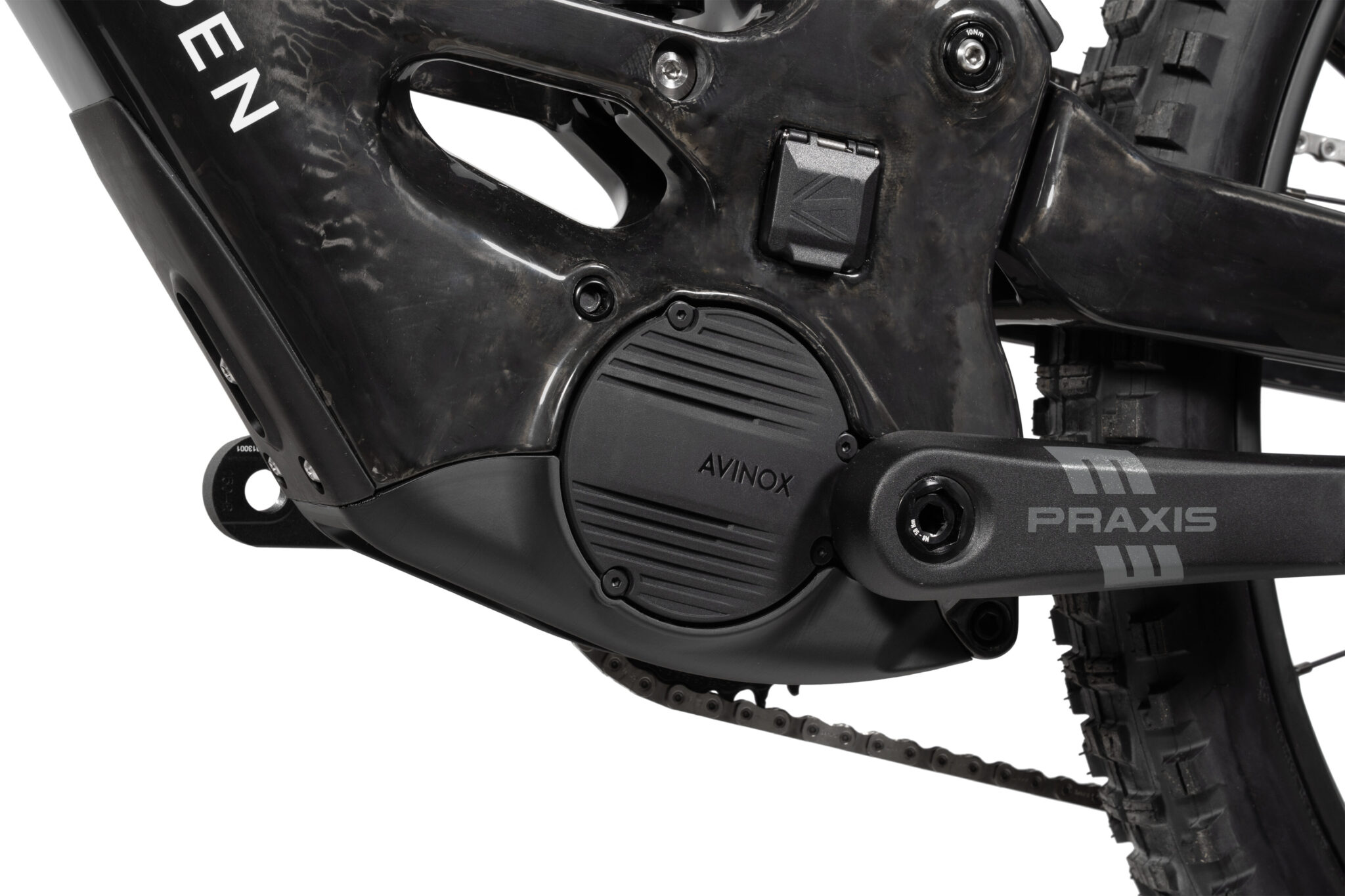

Avinox Drive System
Avinox Drive System
A 2.52 kg (5.5 lbs) package that delivers 105 Nm of max continuous torque (120 Nm on boost), 800 W peak power (1,000 W on boost), and the ability to run 600 Wh (2.87 kg / 6.33 lbs) or 800 Wh (3.74 kg / 8.25 lbs) batteries. The batteries are lightweight and compact, which helps to keep overall bike weight low. They boast ultra-high energy density and large capacity, facilitating extended range and optimal power delivery.
A 2.52 kg (5.5 lbs) package that delivers 105 Nm of max continuous torque (120 Nm on boost), 800 W peak power (1,000 W on boost), and the ability to run 600 Wh (2.87 kg / 6.33 lbs) or 800 Wh (3.74 kg / 8.25 lbs) batteries. The batteries are lightweight and compact, which helps to keep overall bike weight low. They boast ultra-high energy density and large capacity, facilitating extended range and optimal power delivery.
03

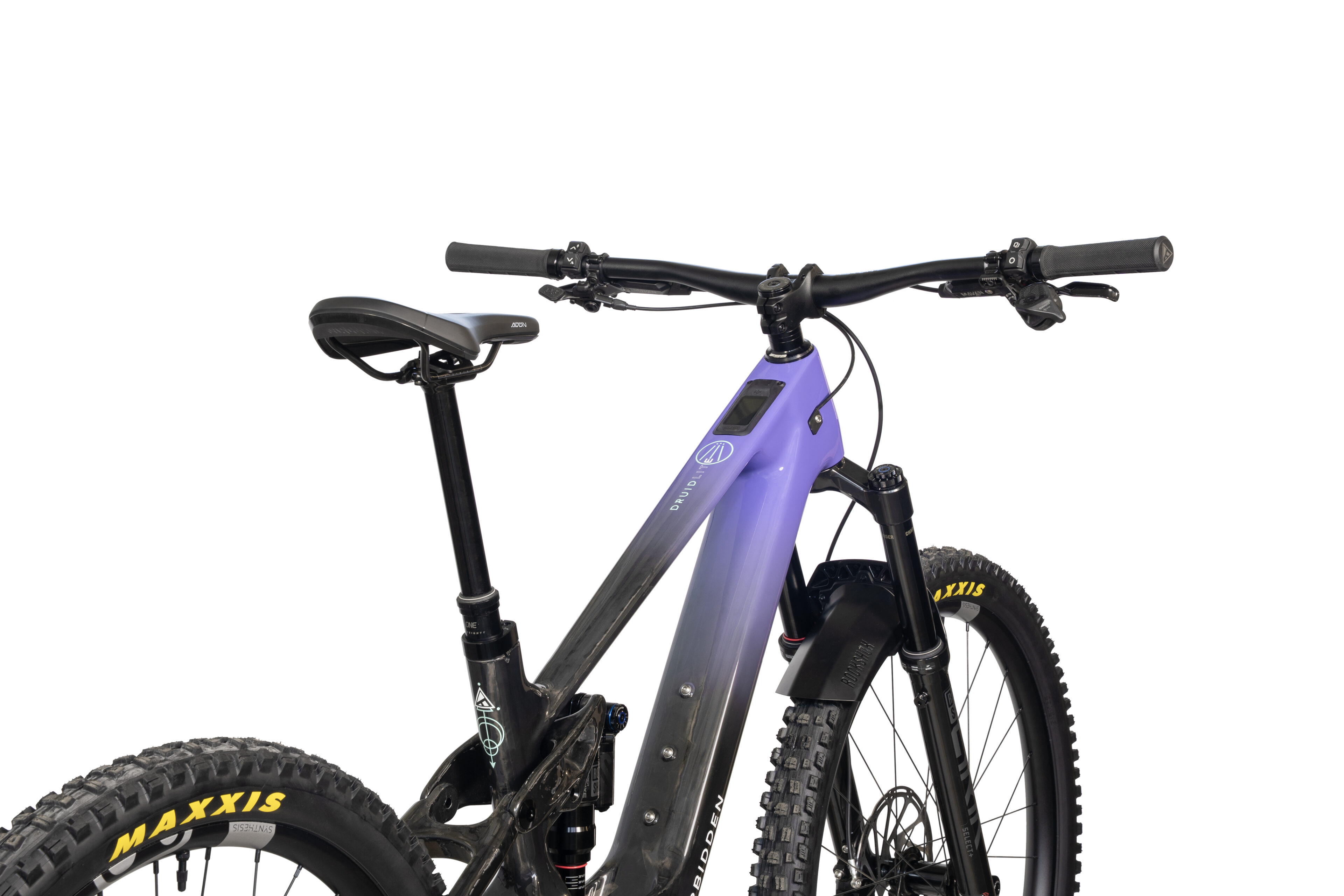

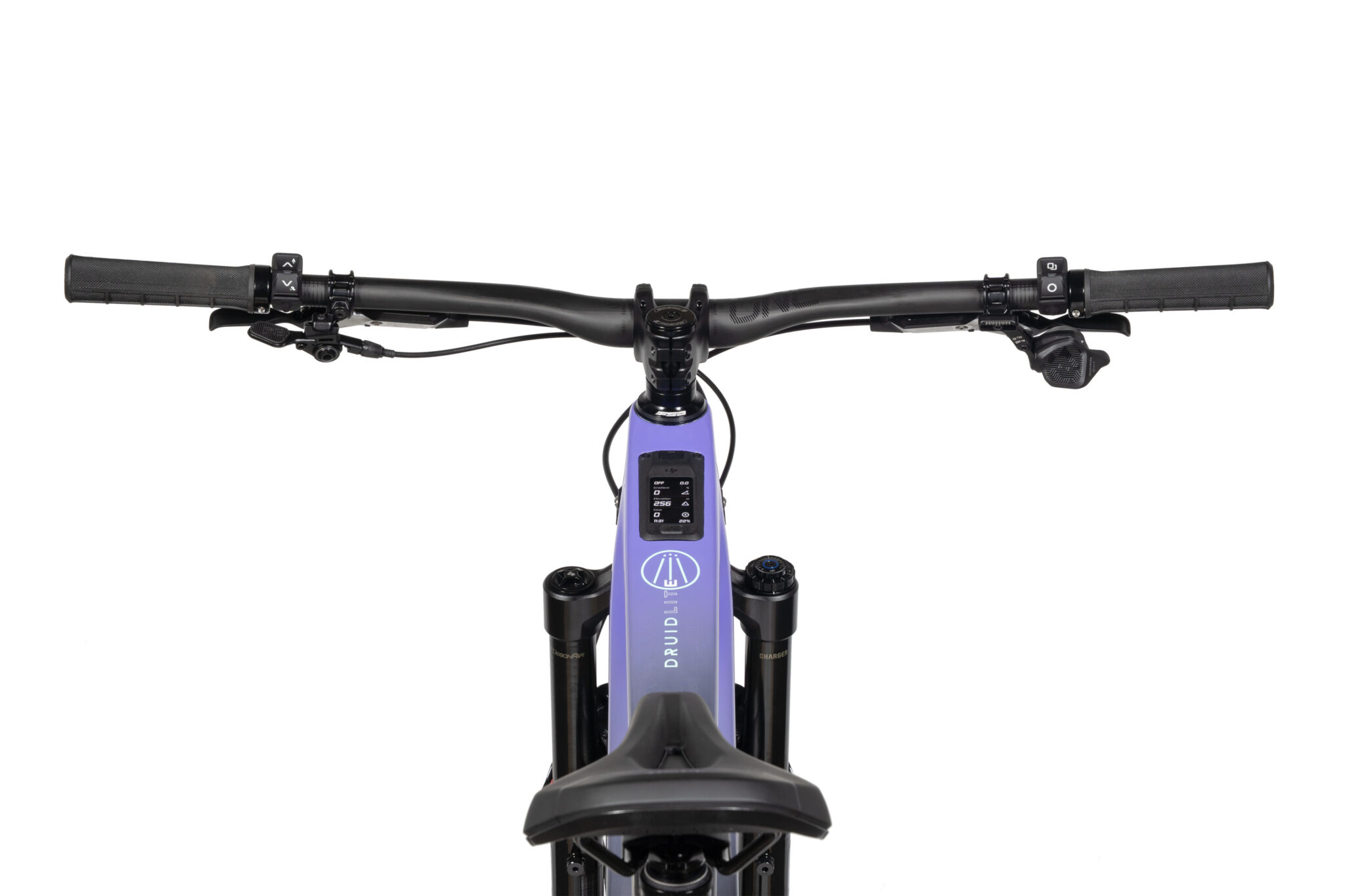

Touch Screen and Controls
Touch Screen and Controls
Druid E features a 2-inch OLED full-colour Control Display as the interactive hub, enabling connectivity between the Avinox Drive Unit and your mobile device via the Avinox app. Tuneable assist modes, wireless handlebar controls, and an intuitive app set the Avinox system apart from the rest.
Druid E features a 2-inch OLED full-colour Control Display as the interactive hub, enabling connectivity between the Avinox Drive Unit and your mobile device via the Avinox app. Tuneable assist modes, wireless handlebar controls, and an intuitive app set the Avinox system apart from the rest.
04

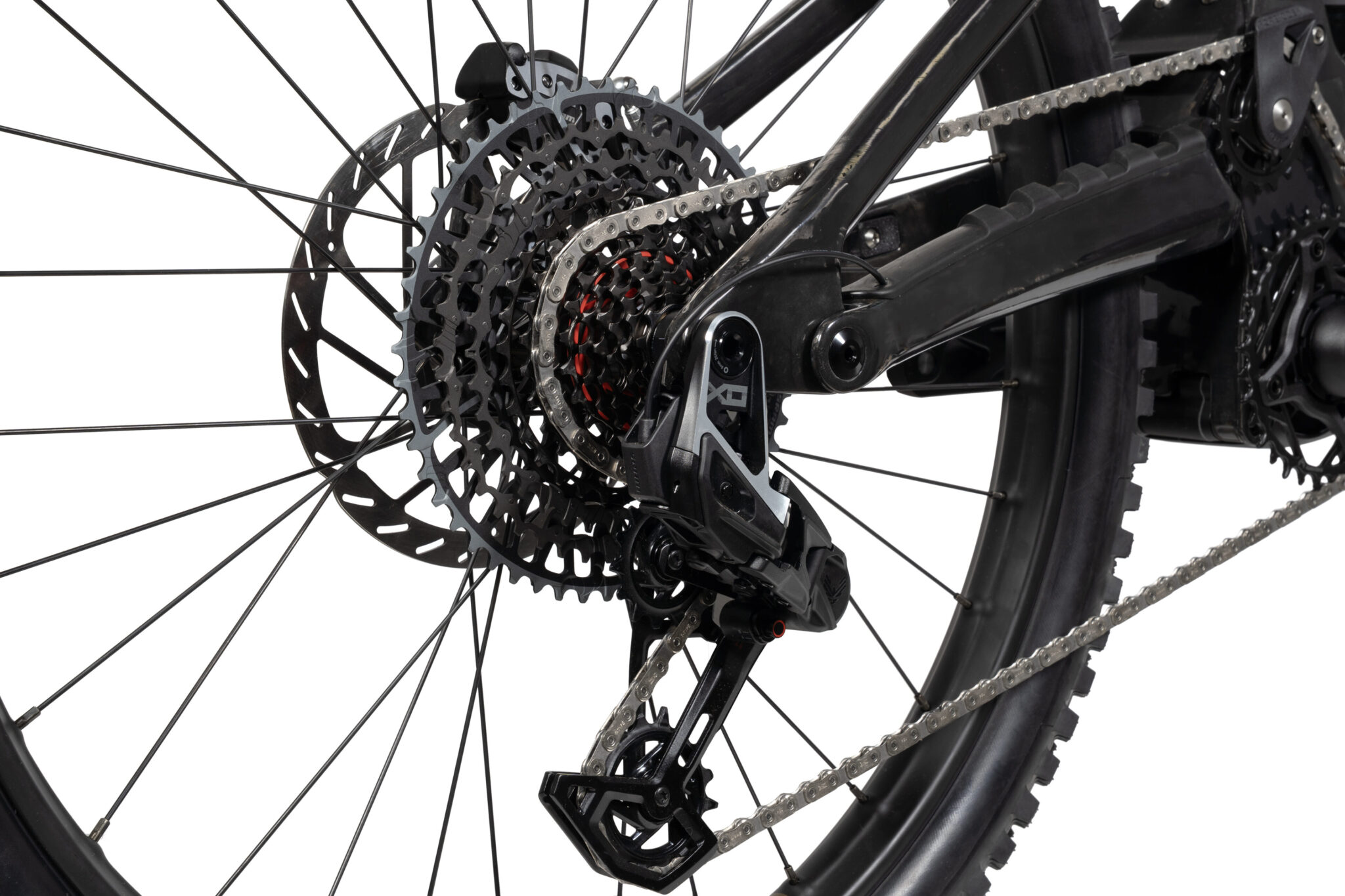

AXS Extension Cord Compatible
AXS Extension Cord Compatible
Druid E builds that are specced with AXS transmission come equipped with SRAM’s AXS Extension Cord. The SRAM AXS Extension Cord connects the AXS transmission to the bike’s battery, allowing you to power the drivetrain directly without the use of an AXS battery.
Druid E builds that are specced with AXS transmission come equipped with SRAM’s AXS Extension Cord. The SRAM AXS Extension Cord connects the AXS transmission to the bike’s battery, allowing you to power the drivetrain directly without the use of an AXS battery.
05

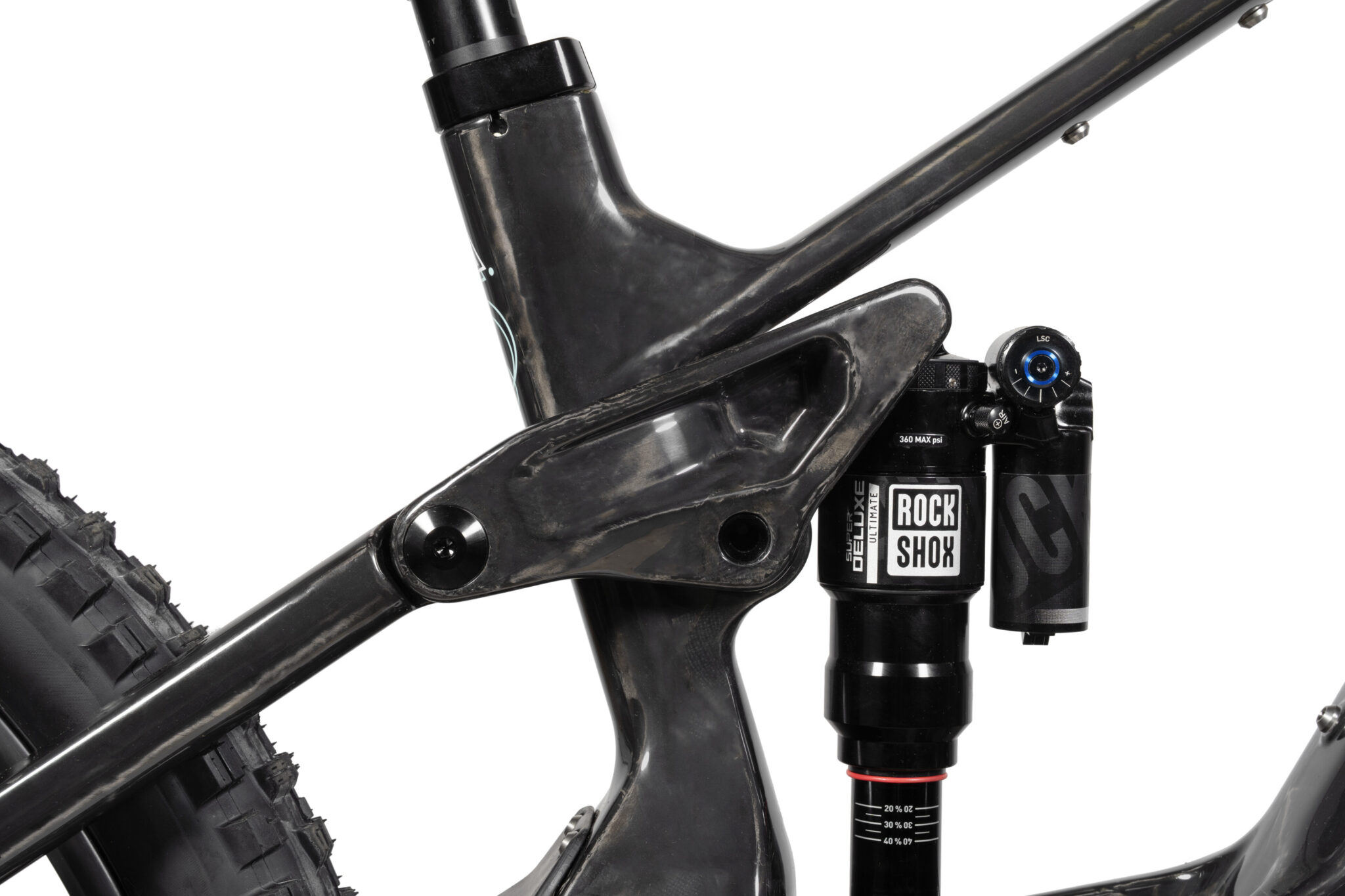

Carbon Rocker Link
Carbon Rocker Link
The Trifecta V3 platform features a carbon rocker link. The carbon rocker link is light, stiff, reduces unsprung mass, isolates the shock from lateral forces, and gives the bike the right amount of progressivity. 8 x 30 mm bearing hardware, top and bottom, comes as standard on all shocks.
The Trifecta V3 platform features a carbon rocker link. The carbon rocker link is light, stiff, reduces unsprung mass, isolates the shock from lateral forces, and gives the bike the right amount of progressivity. 8 x 30 mm bearing hardware, top and bottom, comes as standard on all shocks.
06

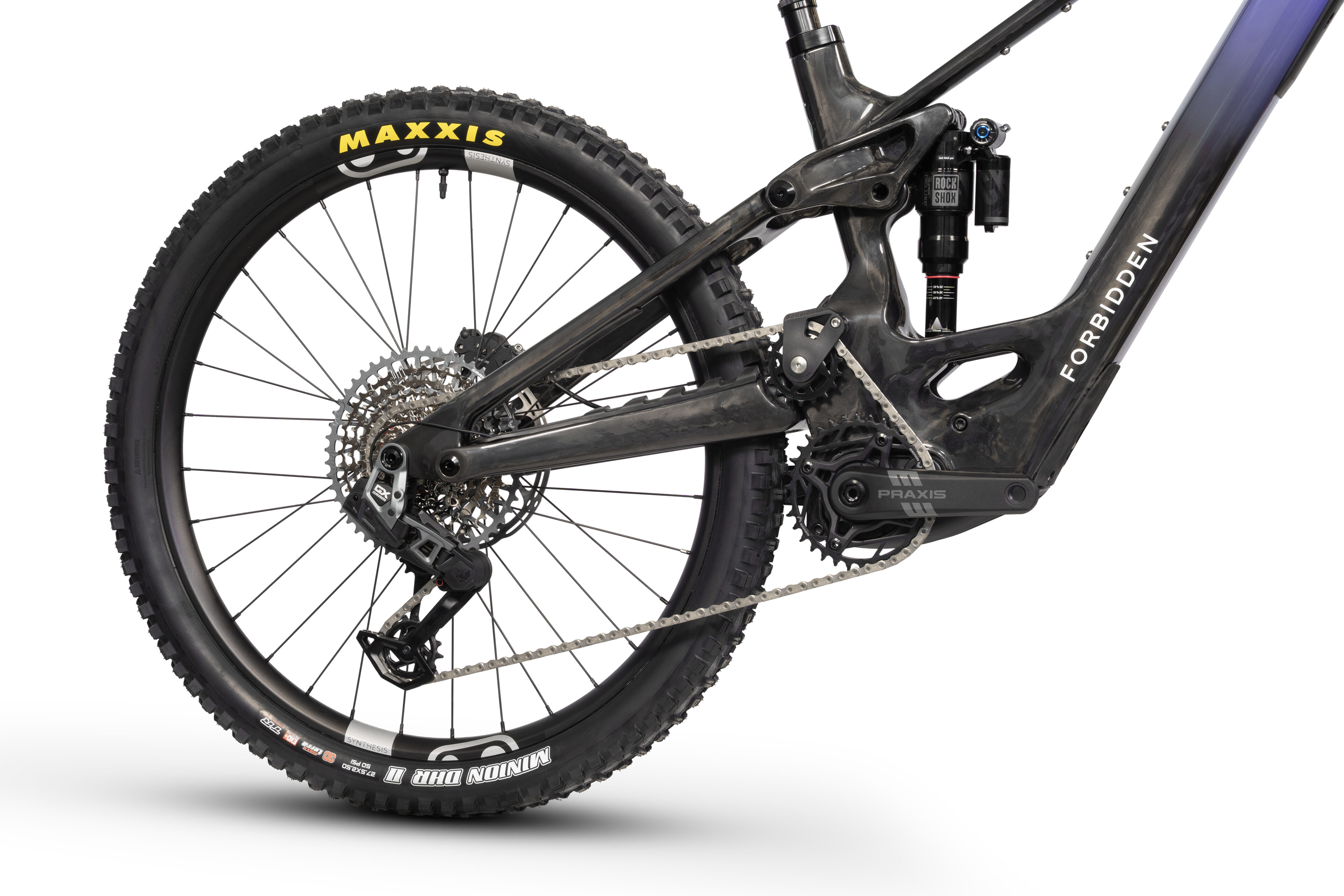

Idler Pulley
Idler Pulley
Druid E sports our e-bike-specific 18-tooth steel idler equipped with two Enduro solid lube bearings. These changes, along with a refined tooth profile, increase the idler’s longevity while ensuring compatibility with the latest drivetrains.
Druid E sports our e-bike-specific 18-tooth steel idler equipped with two Enduro solid lube bearings. These changes, along with a refined tooth profile, increase the idler’s longevity while ensuring compatibility with the latest drivetrains.
07
Custom Frame Protection
Custom Frame Protection
We developed a full complement of custom frame protection for Druid E. Chainstay, seatstay, downtube, and motor cover protection have all been developed and designed in-house specifically for this bike.
We developed a full complement of custom frame protection for Druid E. Chainstay, seatstay, downtube, and motor cover protection have all been developed and designed in-house specifically for this bike.
08
Waterbottle Fitment
Waterbottle Fitment
Even our smallest Druid E frame size can fit a full-size 26oz water bottle, regardless of your rear shock reservoir. Remember, hydration is your friend, but sweaty backs most definitely are not.
Even our smallest Druid E frame size can fit a full-size 26oz water bottle, regardless of your rear shock reservoir. Remember, hydration is your friend, but sweaty backs most definitely are not.
