These bikes are packaged in-house in our Cumberland facility and arrive unassembled – bike mechanic experience is required to complete the final assembly of these bikes and therefore are only available through our trusted dealer network. Fill out this form to let us know what you’re interested in ordering, where you’re located and we can organize the details with your nearest dealer. We’ll be in touch ASAP!

These bikes are packaged in-house in our Cumberland facility and arrive unassembled – bike mechanic experience is required to complete the final assembly of these bikes and therefore are only available through our trusted dealer network. Fill out this form to let us know what you’re interested in ordering, where you’re located and we can organize the details with your nearest dealer. We’ll be in touch ASAP!

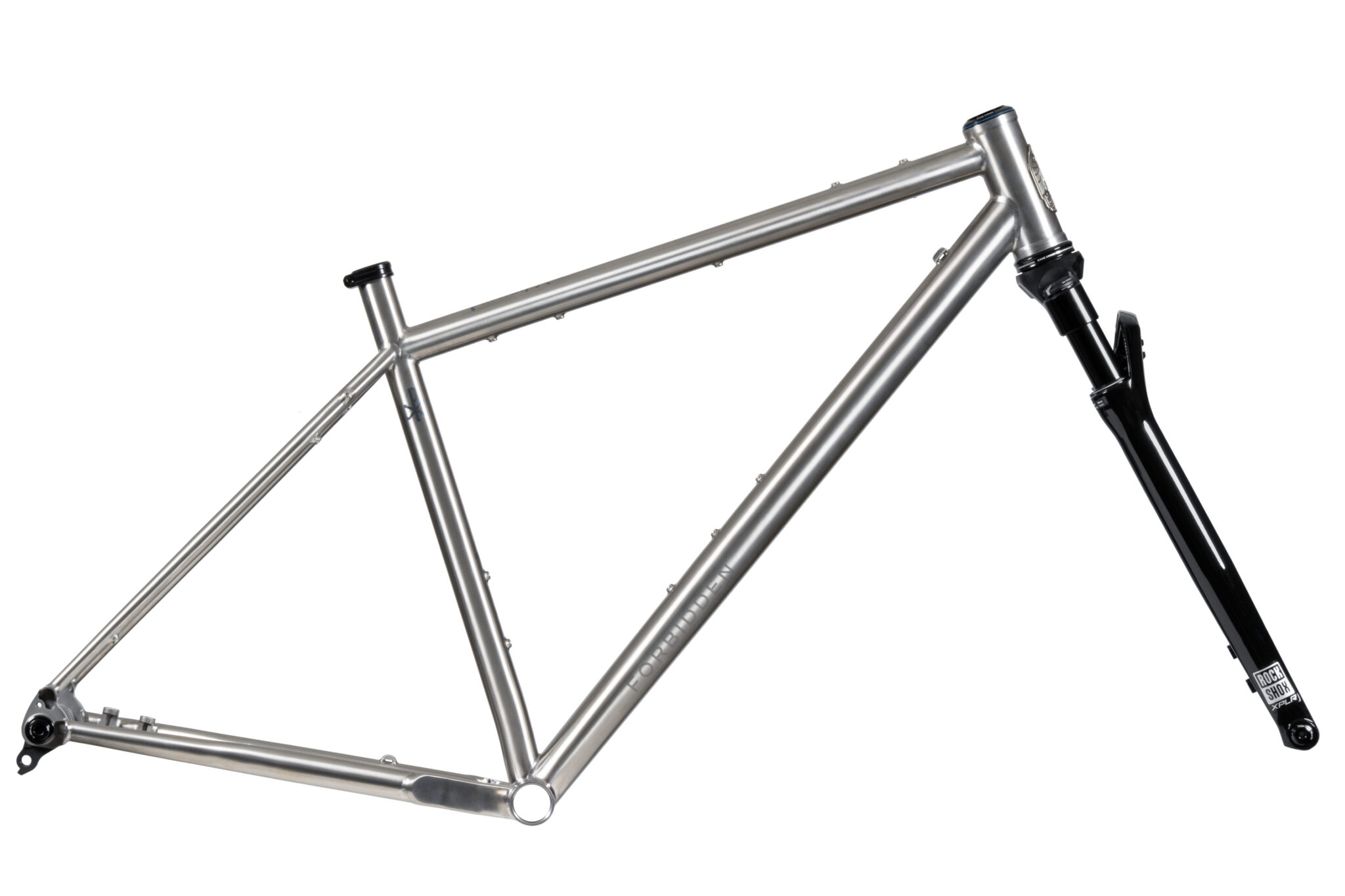

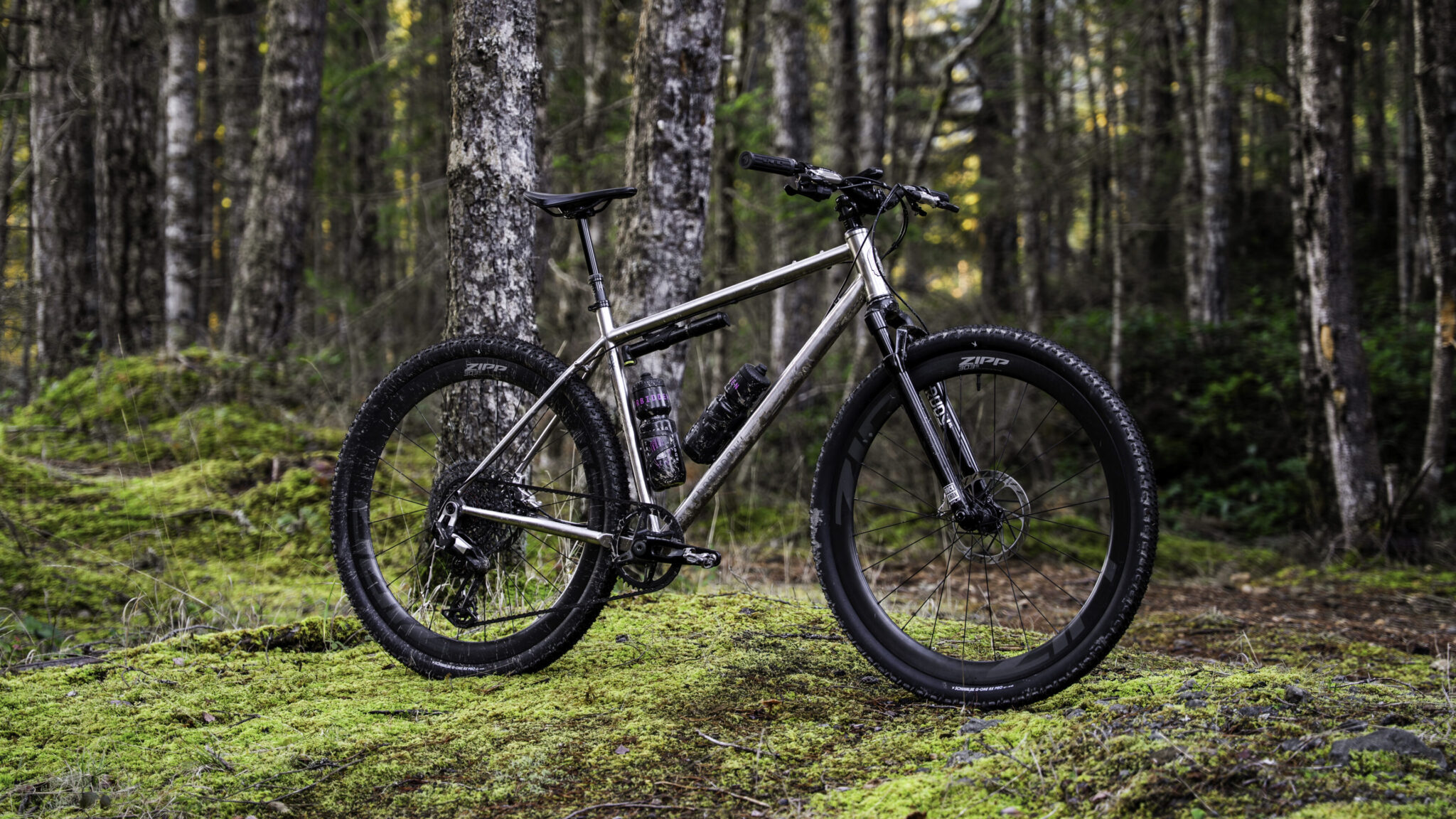

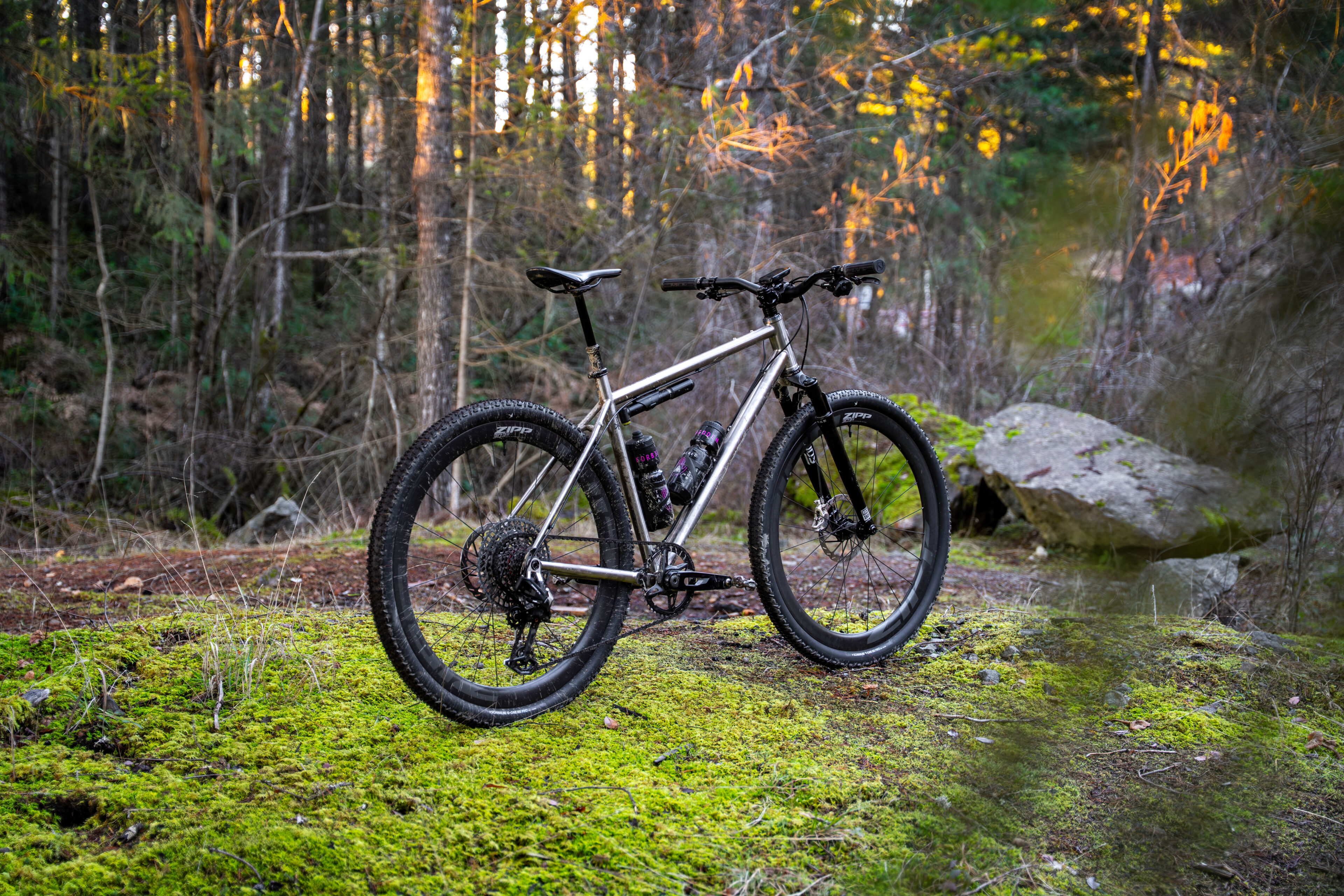

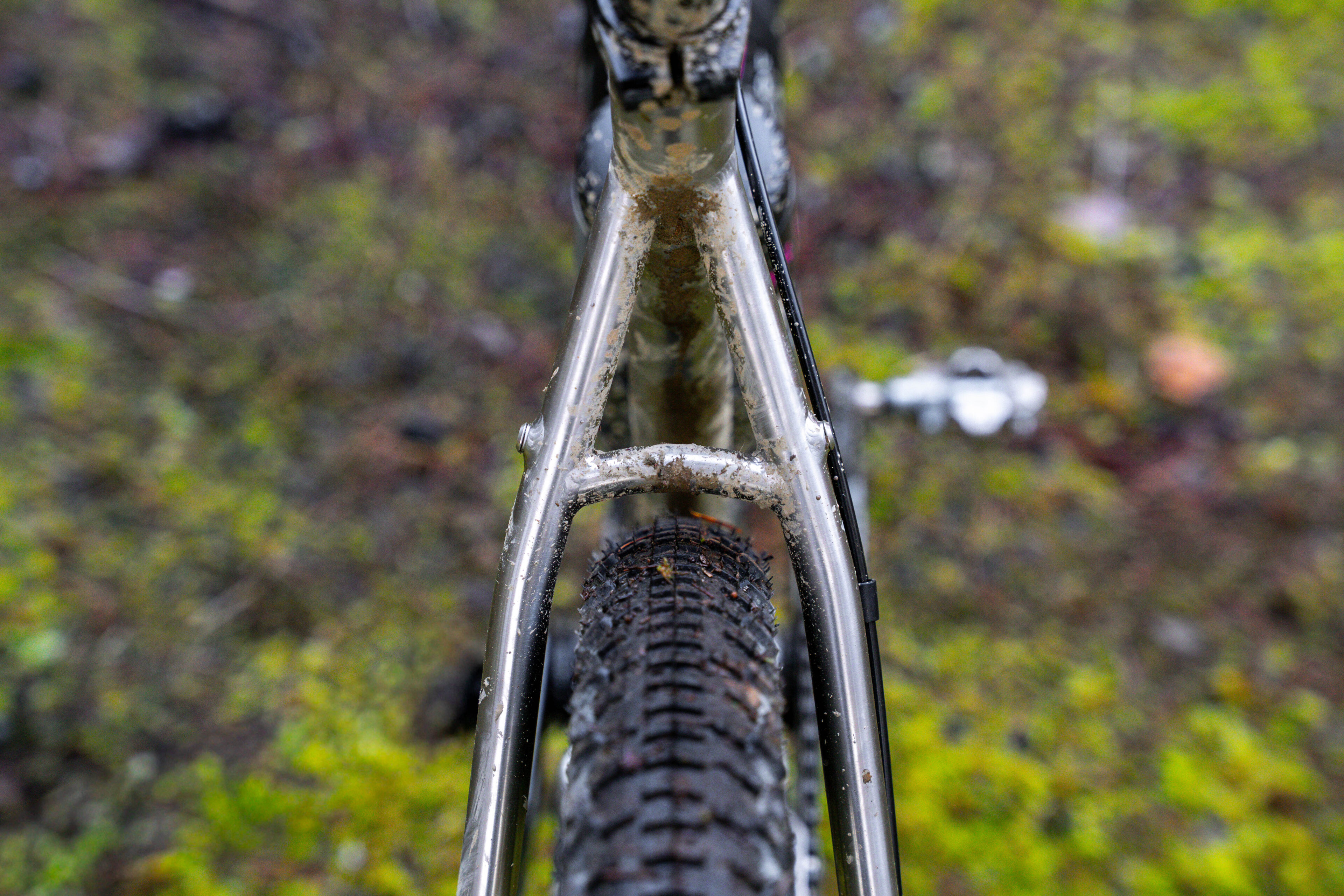

A gravel bike? A 90’s mountain bike? Who cares? This bike is unconcerned with labels. It’s a proportionally sized titanium ATB(all terrain bike) built for loaded up long hauls, serendipitous mid-commute singletrack sessions, and whatever else you think you shouldn’t be doing on a 700c bike.

With room for up to 700c x 2.0″ (50 mm) tires and our ONERIDE proportional sizing, the Puritan blends gravel efficiency with comfort and stability. Load it up with bags to get lost in the woods, or pedal it to the pub. We don’t make the rules.

The Puritan is purpose-built to run a flat bar and a 60mm stem. Yes, you can build it with drop bars, but it will stretch out the rider triangle. Sorry, not sorry. This bike is unapologetically flat-bar first.

A gravel bike? A 90’s mountain bike? Who cares? This bike is unconcerned with labels. It’s a proportionally sized titanium ATB(all terrain bike) built for loaded up long hauls, serendipitous mid-commute singletrack sessions, and whatever else you think you shouldn’t be doing on a 700c bike.

With room for up to 700c x 2.0″ (50 mm) tires and our ONERIDE proportional sizing, the Puritan blends gravel efficiency with comfort and stability. Load it up with bags to get lost in the woods, or pedal it to the pub. We don’t make the rules.

The Puritan is purpose-built to run a flat bar and a 60mm stem. Yes, you can build it with drop bars, but it will stretch out the rider triangle. Sorry, not sorry. This bike is unapologetically flat-bar first.

  • Intended Use

    Gravel and Beyond

  • Suspension

    50mm Rockshox Rudy

  • Wheel Size

    700c

Choose Your Dream Ride

Choose Your Dream Ride

Titanium

$4,599 CAD

$4,599 CAD

Buy Now

$4,599 CAD

$4,599 CAD

Buy Now
Scroll

Size Guide

Size Guide

S1

S1

S2

S2

S3

S3

S4

S4

5'2

158cm

5'6

168cm

S1 29"
  • Reach: 392
  • Stack: 593
  • HT Angle: 67.75
  • ST Angle: 73.3
  • Front Center: 654
  • Rear Center: 418
  • Wheel Base: 1072
  • BB drop: 71

5'6

168cm

5'10

178cm

S2 29"
  • Reach: 412
  • Stack: 607
  • HT Angle: 67.75
  • ST Angle: 73.3
  • Front Center: 680
  • Rear Center: 428
  • Wheel Base: 1107
  • BB drop: 71

5'10

178cm

6'2

188cm

S3 29"
  • Reach: 432
  • Stack: 621
  • HT Angle: 67.75
  • ST Angle: 73.3
  • Front Center: 705
  • Rear Center: 438
  • Wheel Base: 1143
  • BB drop: 71

6'2

188cm

6'6

198cm

S4 29"
  • Reach: 753
  • Stack: 635
  • HT Angle: 67.75
  • ST Angle: 73.3
  • Front Center: 730
  • Rear Center: 448
  • Wheel Base: 1178
  • BB drop: 71

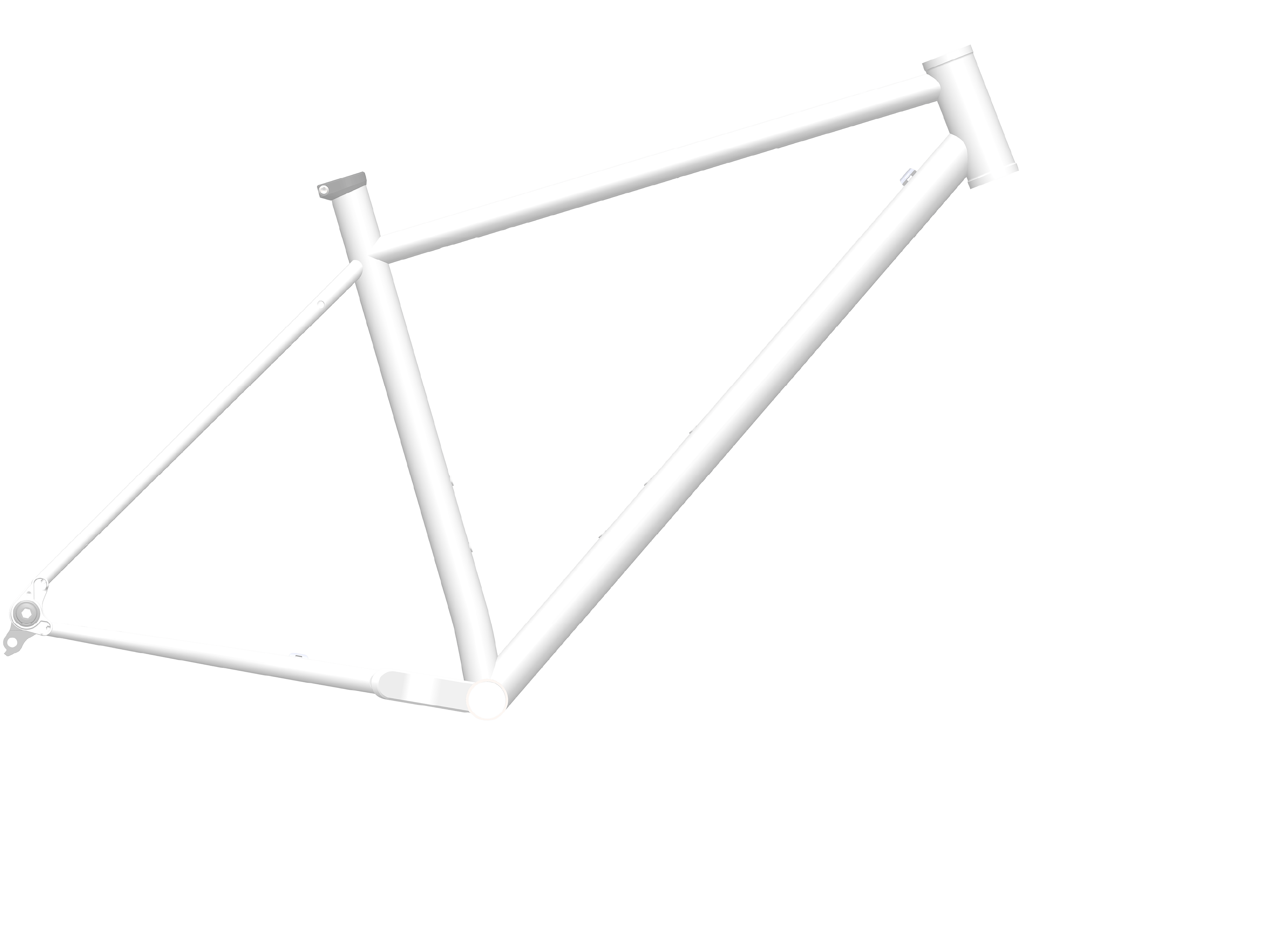

29" Geometry

29" Geometry

Fork Size 50mm S1 S2 S3 S4
A Reach 392 412 432 753
B Stack 593 607 621 635
C Hori. Top Tube Length 571 594 618 642
D Seat Tube Length 480 500 520 540
E Seat Tube Angle (Effective) 73.3 73.3 73.3 73.3
F Seat Tube Angle (Actual) 72.0 72.8 73.3 73.3
G Head Tube Length 110 125 140 155
H Head Tube Angle 67.75 67.75 67.75 67.75
I Front Center 654 680 705 730
J Rear Center 418 428 438 448
K Wheel base 1072 1107 1143 1178
L BB Drop 71 71 71 71
M BB Height 293 293 293 293
N Stand Over 737 753 769 786
O Fork Length 460 460 460 460
P Fork Offset 45 45 45 45
Size Guide 29" Geometry

Technical Info

Technical Info

  • Fork Length (Max.)

    460mm

  • Recommended Fork Offset

    45mm

  • S.H.I.S.

    ZS44/28.6 EC44

  • Rear Hub Spacing

    142mm x 12mm

  • Bottom Bracket

    73mm BSA Threaded

  • Chain Line

    49mm

  • Max. Chain Ring

    40T

  • Seat Post Diameter

    27.2

  • Seat Post Insertion

    S1: 275mm|S2: 295mm|S3:315mm|S4: 335mm

  • Seat Post Clamp Diameter

    31.8mm (included)

  • Recommended Tire Size

    700c x 50

  • Max. Tire Size

    700c x 50

The industry’s only TRULY
PROPORTIONAL geometry.

The industry’s only TRULY PROPORTIONAL geometry.

Learn More

Things You Should Know

Things You Should Know

Things You
Should Know

Things You Should Know

01 Metal Head Tube Badge 02 Fork Included 03 Accessory Mounts 04 Sensible Standard 05 Flat Mount Brake
01

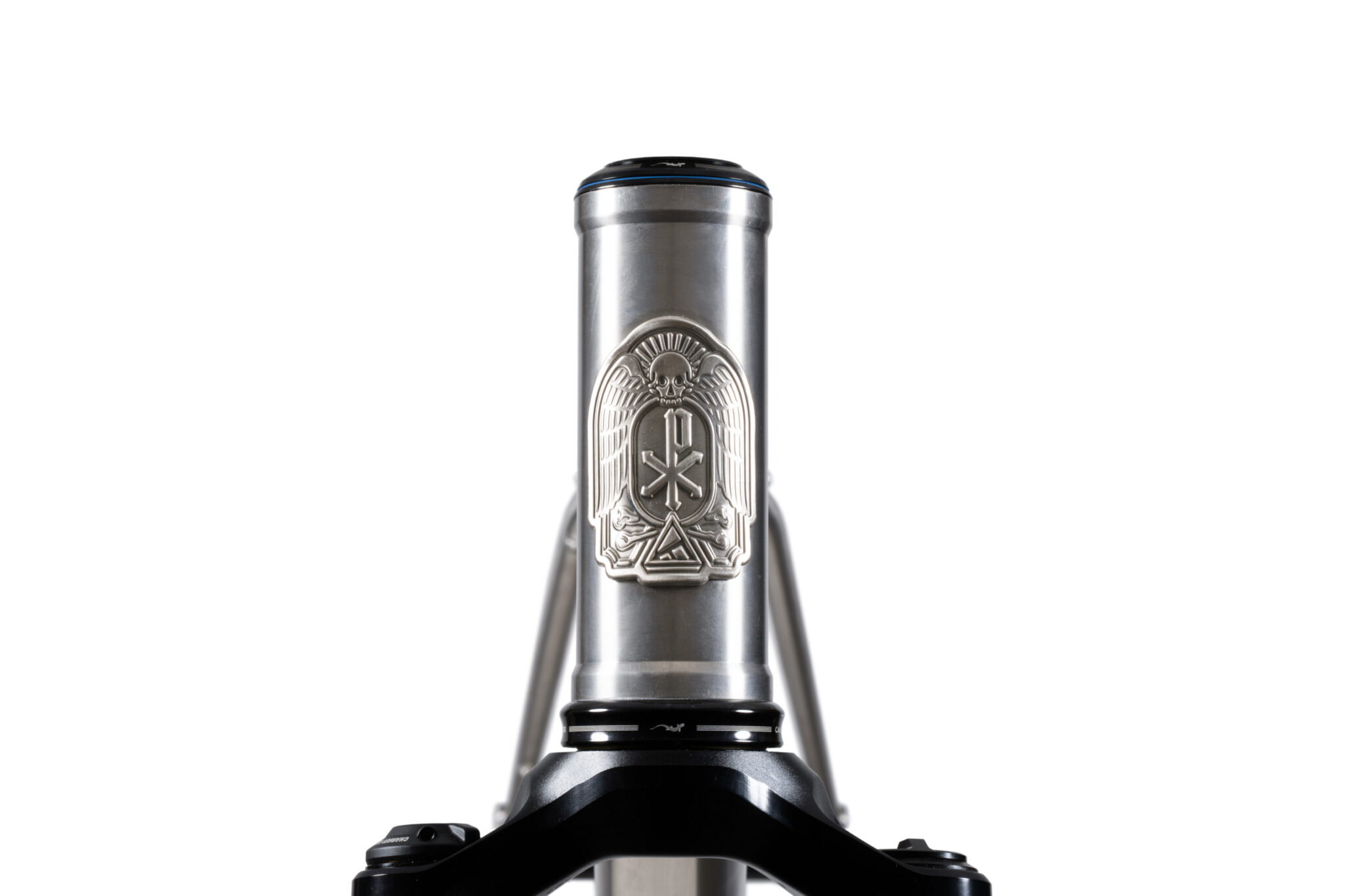

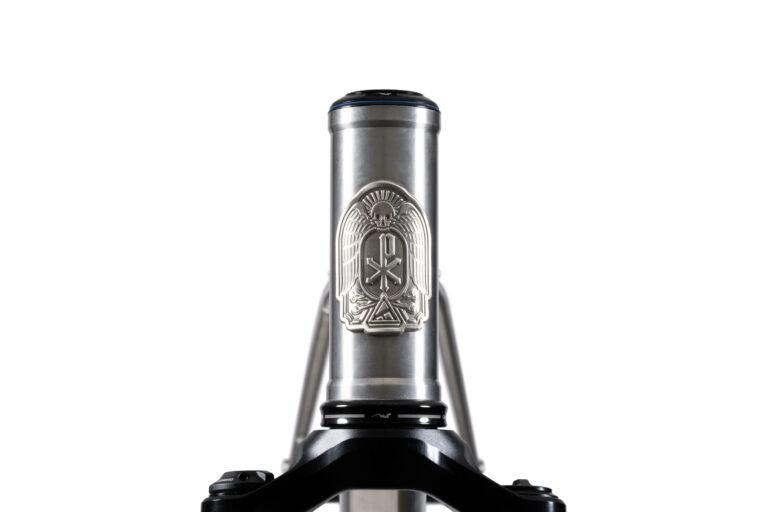

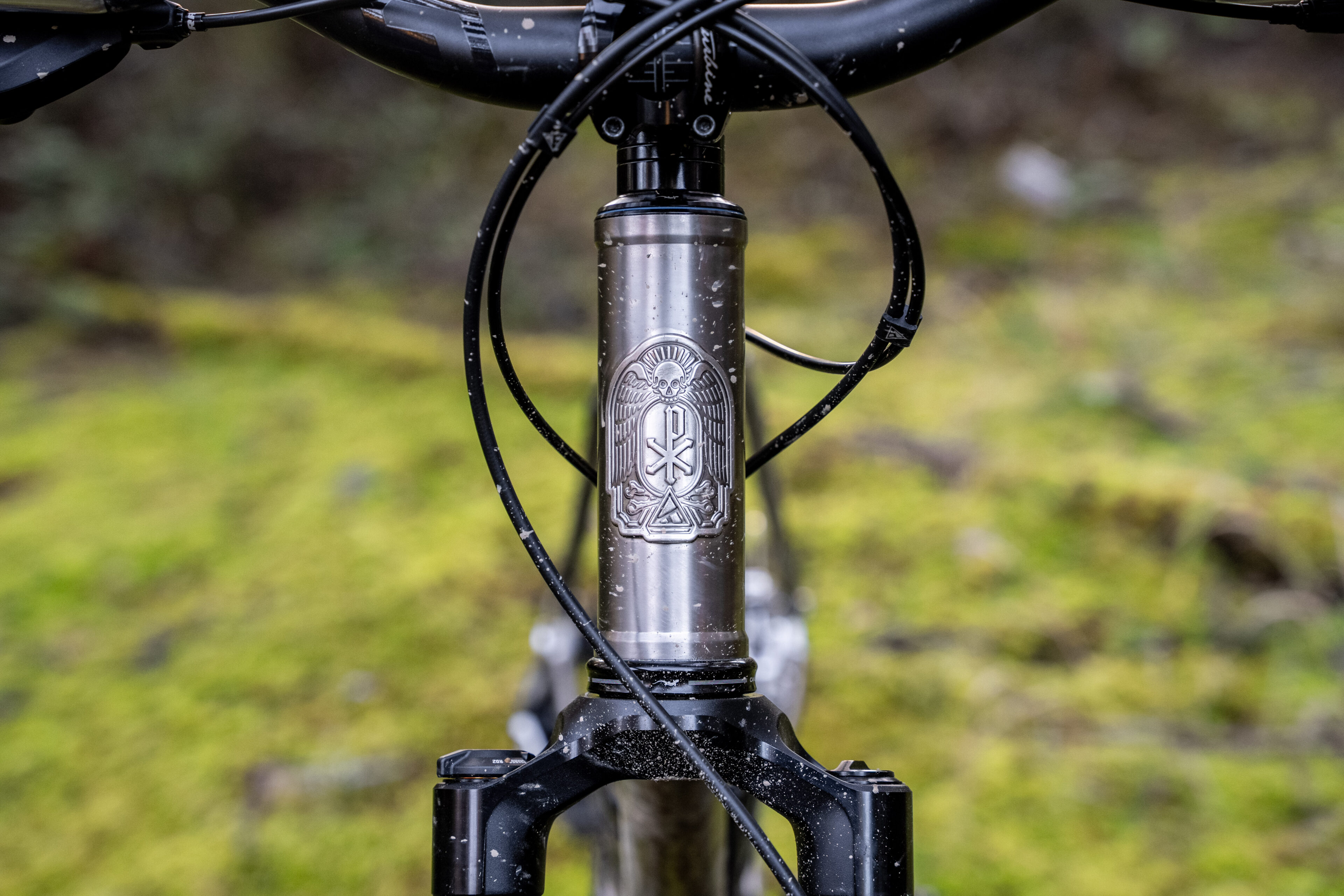

Metal Head Tube Badge

Metal Head Tube Badge

The Puritan sports a one of a kind metal head tube badge designed in collaboration with Tom Bunney.

The Puritan sports a one of a kind metal head tube badge designed in collaboration with Tom Bunney.

02

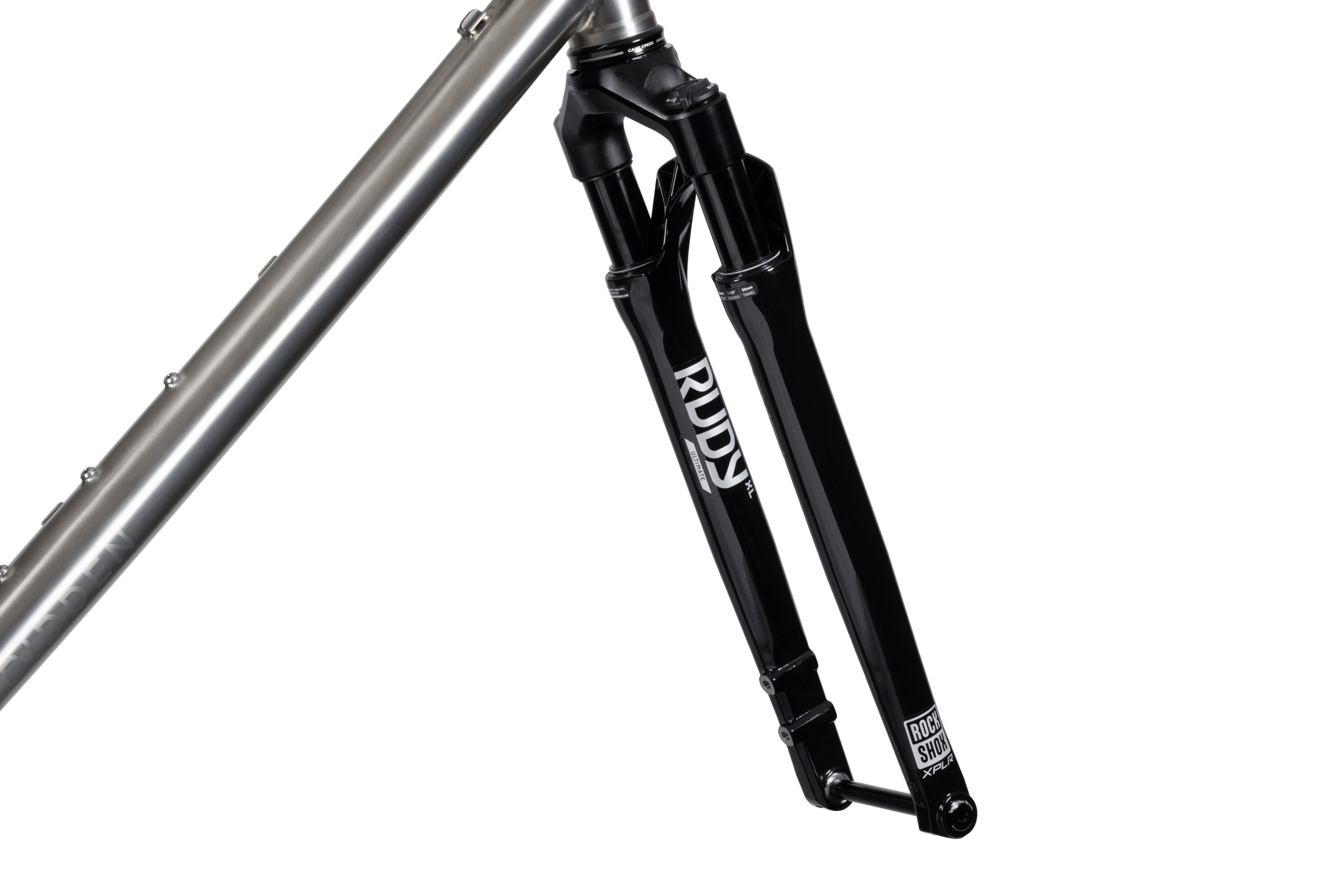

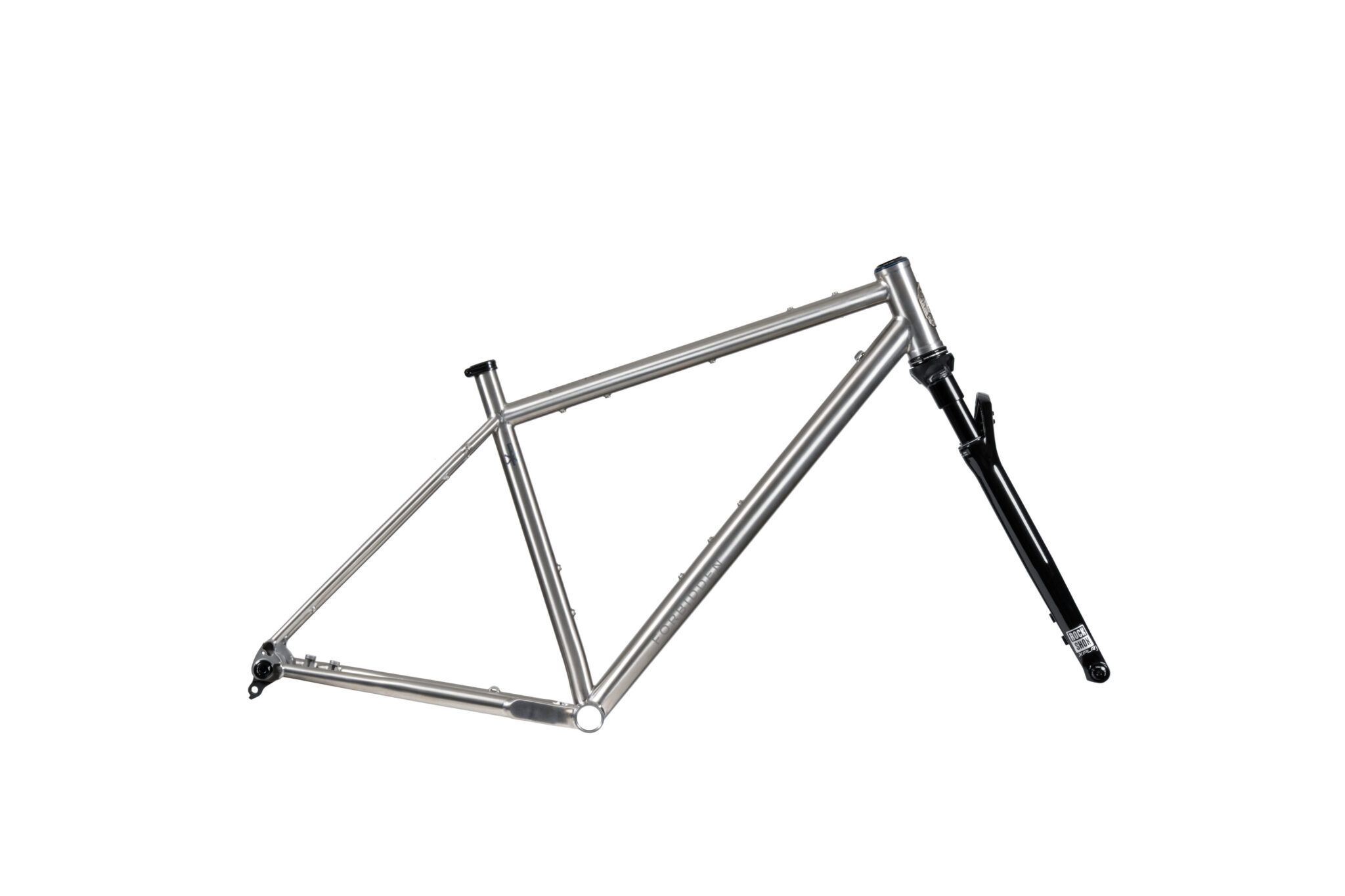

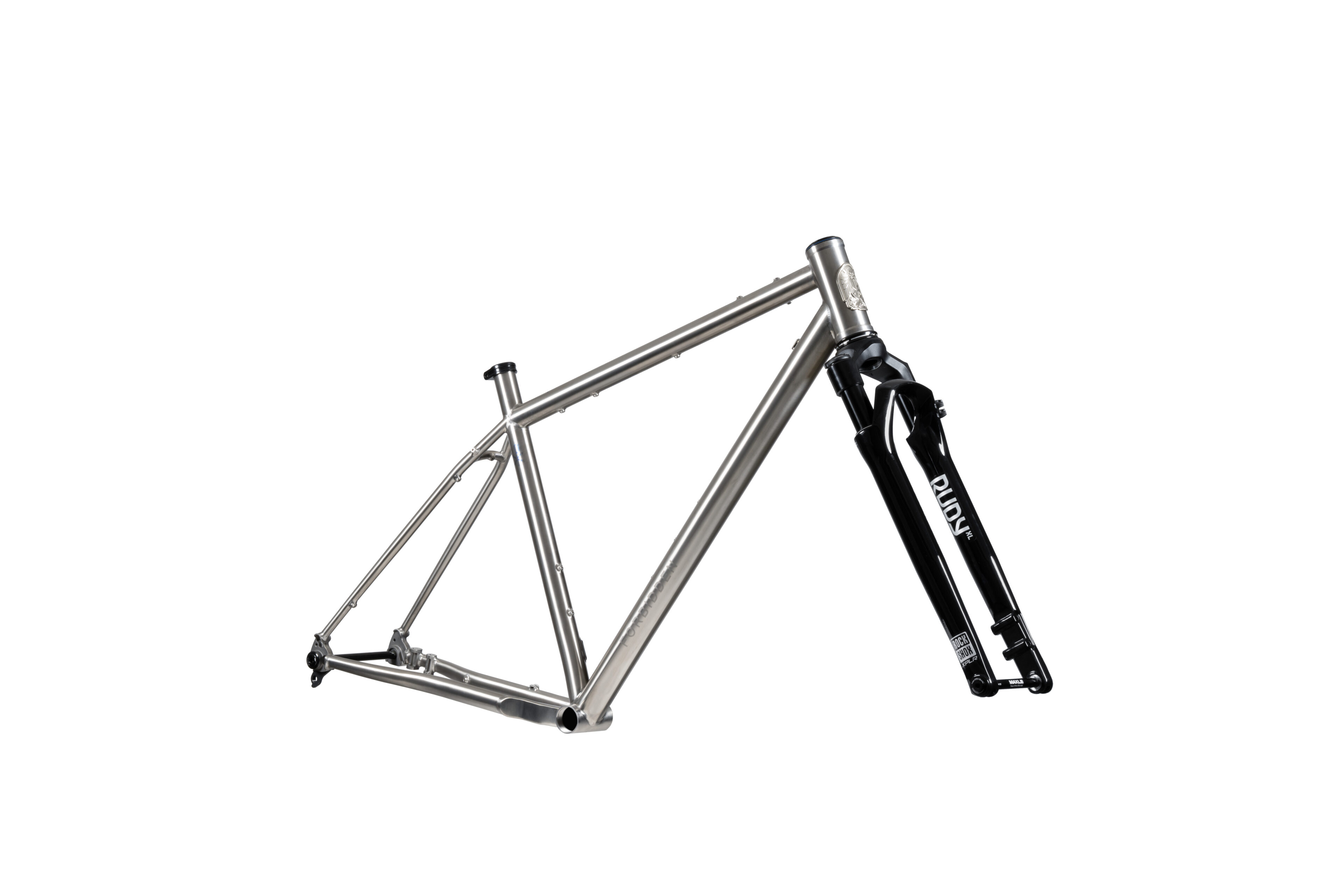

Fork Included

Fork Included

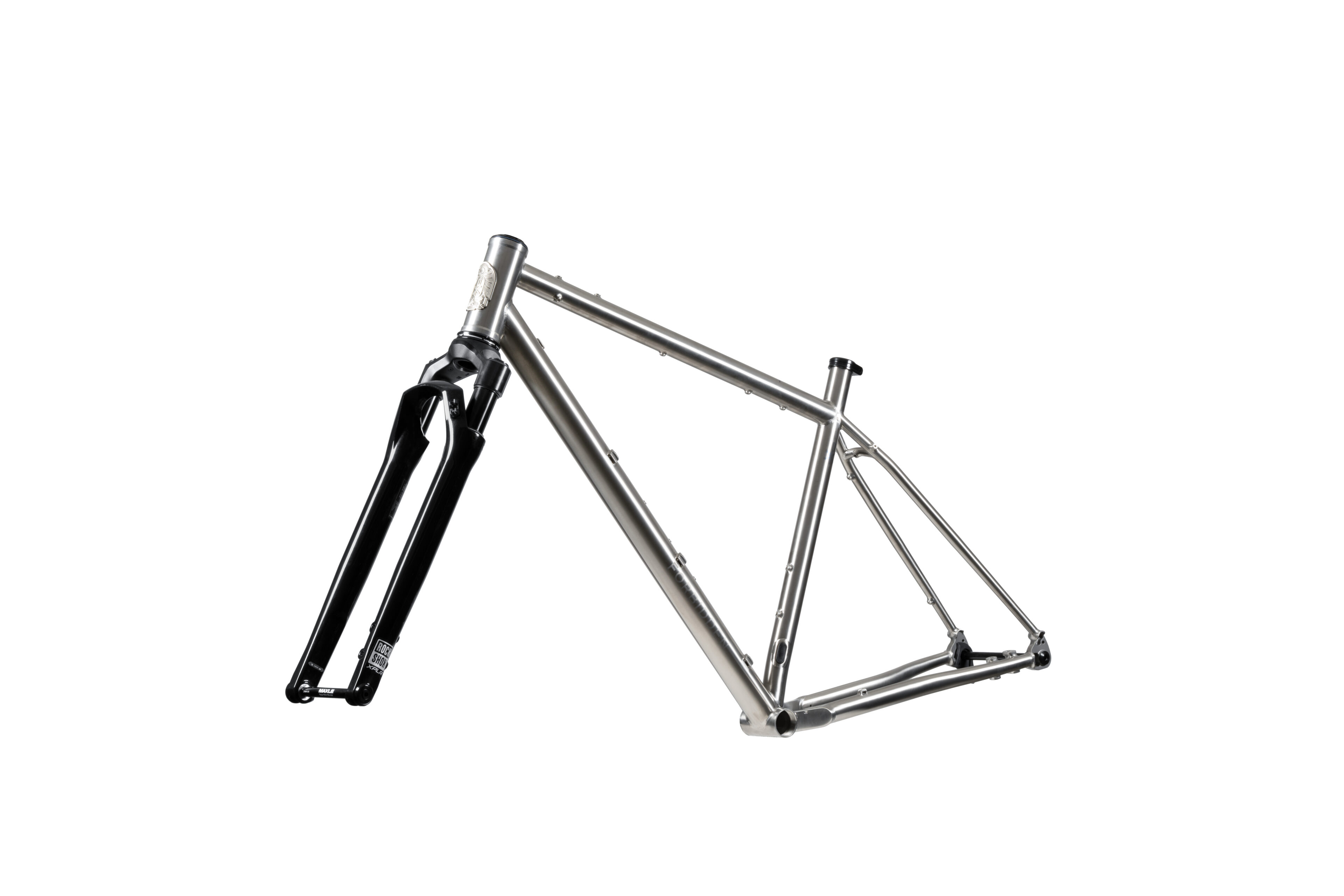

The Puritan frame kit comes equipped with the Rockshock Rudy (headset included). Giving this ATB the extra comfort and capability you need to feel supported in all your bad decisions.

The Puritan frame kit comes equipped with the Rockshock Rudy (headset included). Giving this ATB the extra comfort and capability you need to feel supported in all your bad decisions.

03

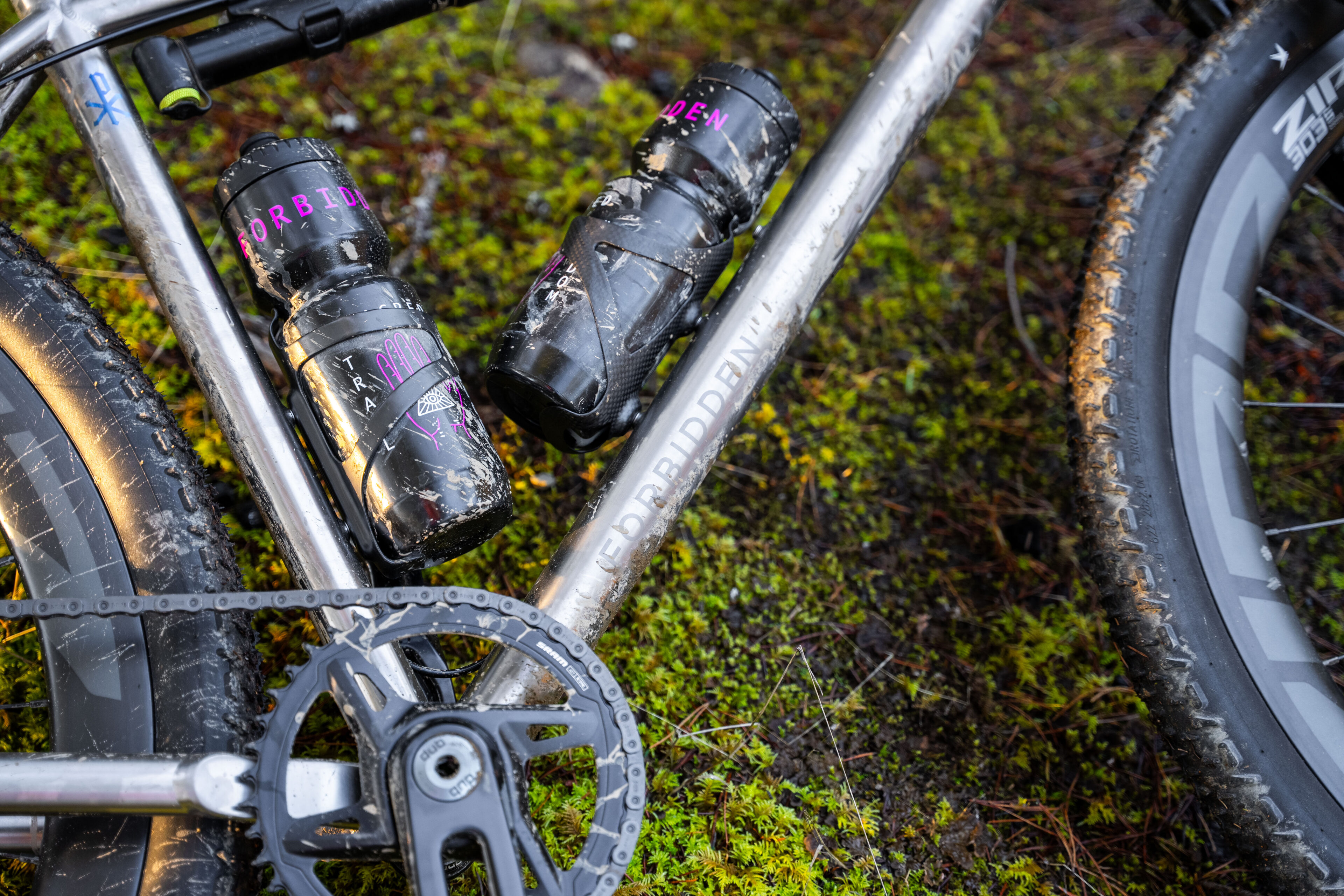

Accessory Mounts

Accessory Mounts

Top of the top tube, bottom of the top tube, multiple bottom mounts, rack mounts, fender mounts. This bike is bolt-on accessory ready, for those that are inclined. Otherwise bust out the strap-on bags and get carried away.

Top of the top tube, bottom of the top tube, multiple bottom mounts, rack mounts, fender mounts. This bike is bolt-on accessory ready, for those that are inclined. Otherwise bust out the strap-on bags and get carried away.

04

Sensible Standard

Sensible Standard

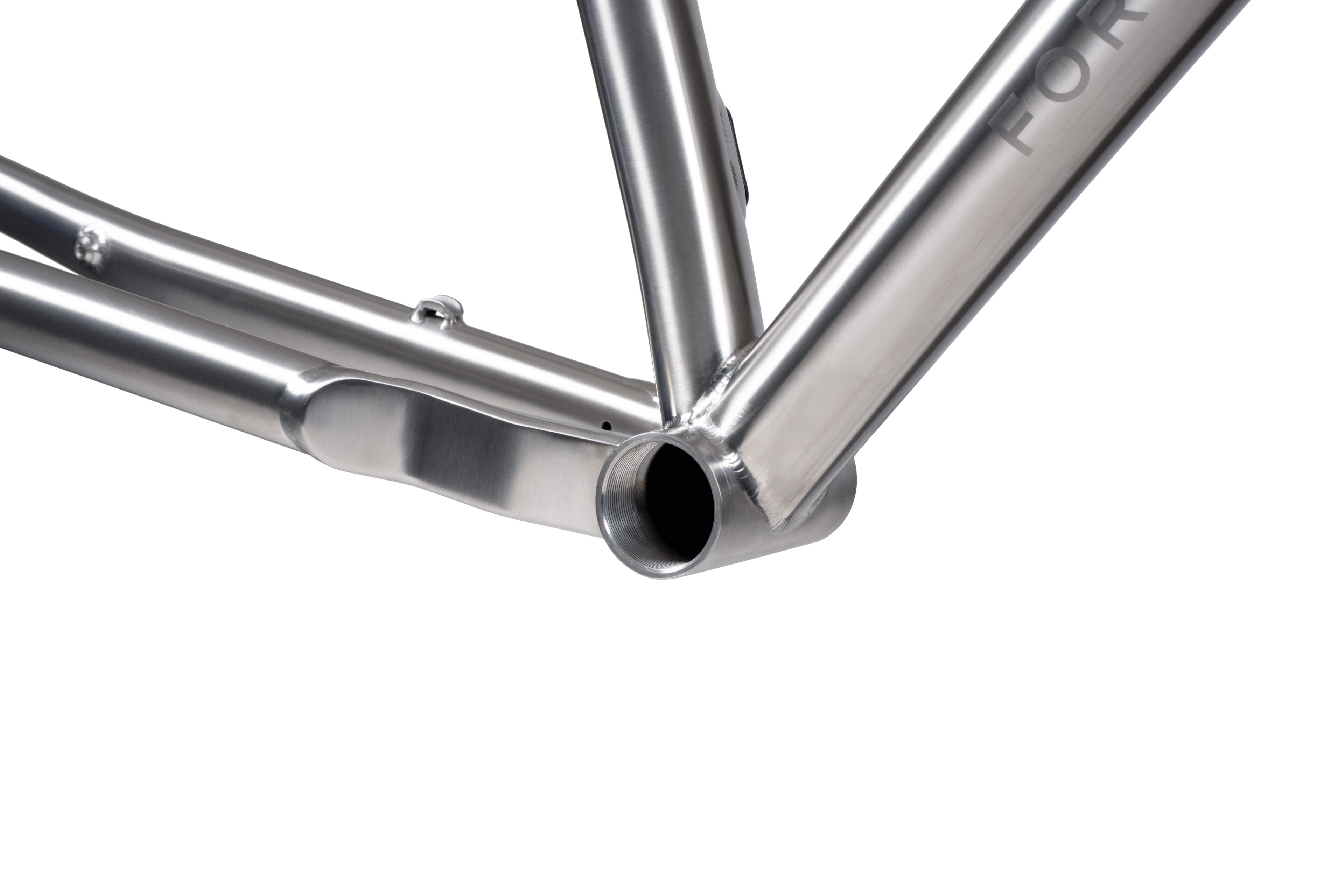

Threaded BB, 142 x 12 rear hub spacing, press in headset cups, dropper-post-ready – we only use what makes sense from a design and durability standpoint. You won’t find any questionable trends here.

Threaded BB, 142 x 12 rear hub spacing, press in headset cups, dropper-post-ready – we only use what makes sense from a design and durability standpoint. You won’t find any questionable trends here.

05

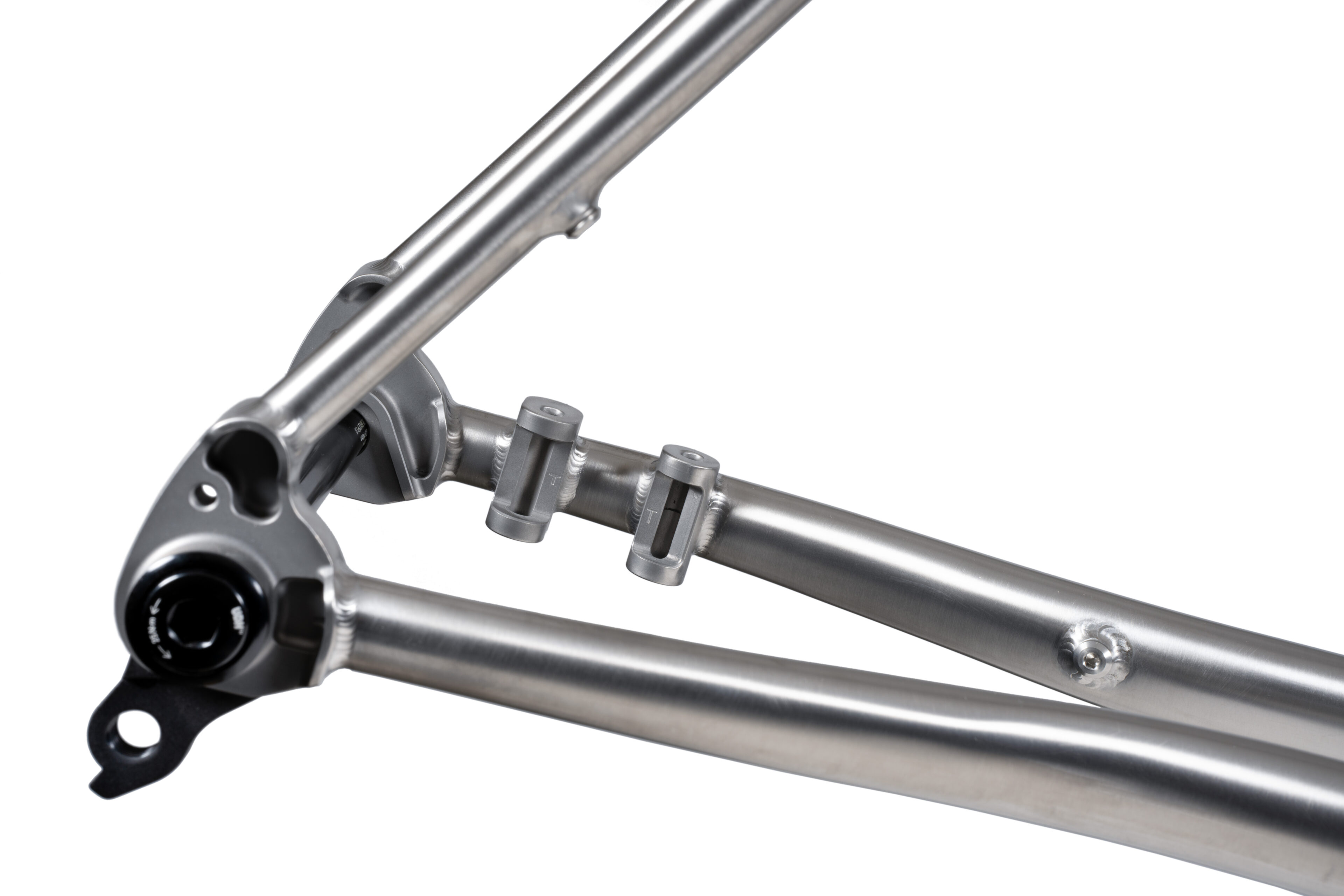

Flat Mount Brake

Flat Mount Brake

Flat mount brake as standard (adapter included) for a  cleaner aesthetics, and the option to build a lighter all around package.

Flat mount brake as standard (adapter included) for a  cleaner aesthetics, and the option to build a lighter all around package.
