These bikes are packaged in-house in our Cumberland facility and arrive unassembled – bike mechanic experience is required to complete the final assembly of these bikes and therefore are only available through our trusted dealer network. Fill out this form to let us know what you’re interested in ordering, where you’re located and we can organize the details with your nearest dealer. We’ll be in touch ASAP!

These bikes are packaged in-house in our Cumberland facility and arrive unassembled – bike mechanic experience is required to complete the final assembly of these bikes and therefore are only available through our trusted dealer network. Fill out this form to let us know what you’re interested in ordering, where you’re located and we can organize the details with your nearest dealer. We’ll be in touch ASAP!

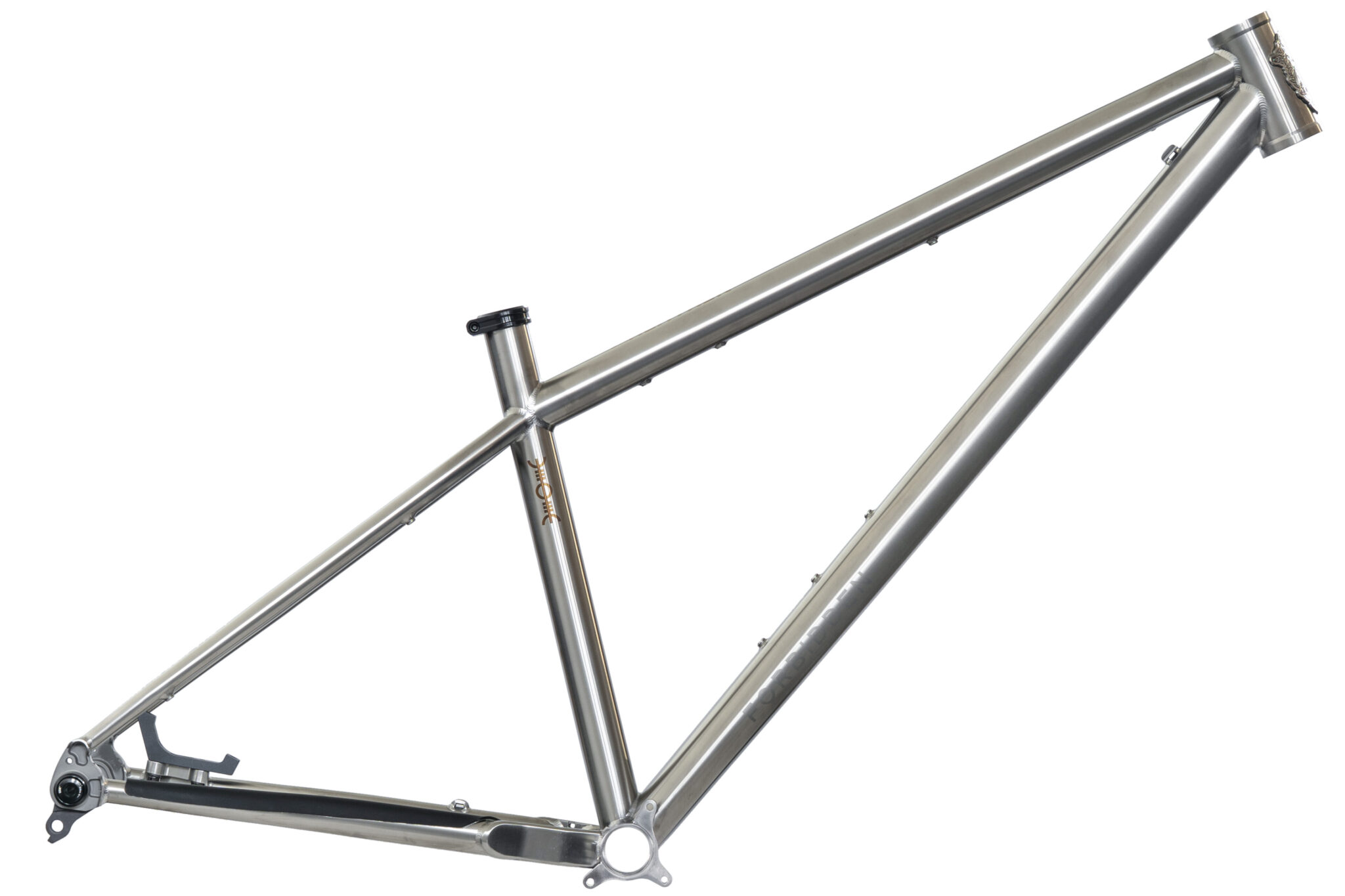

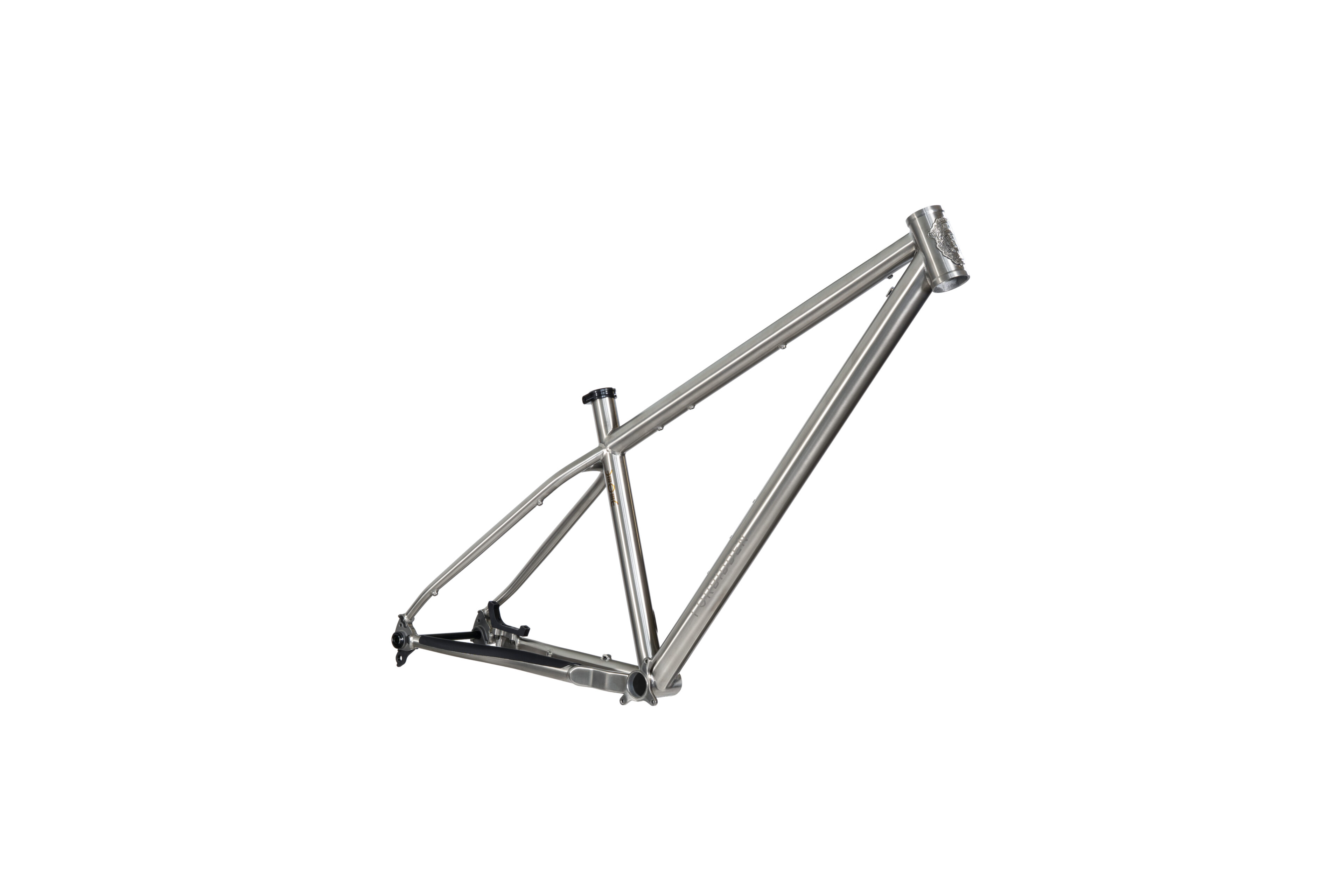

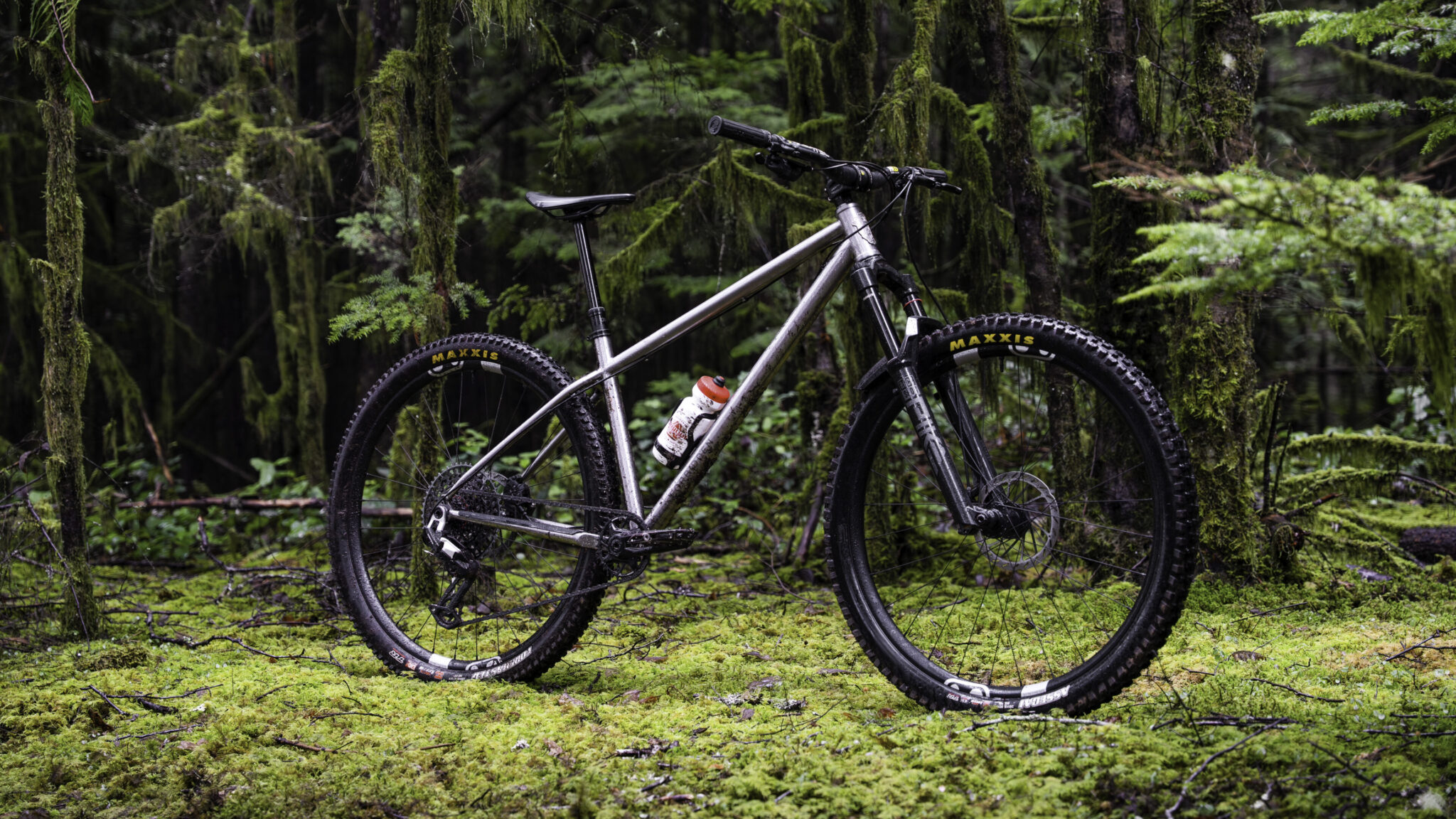

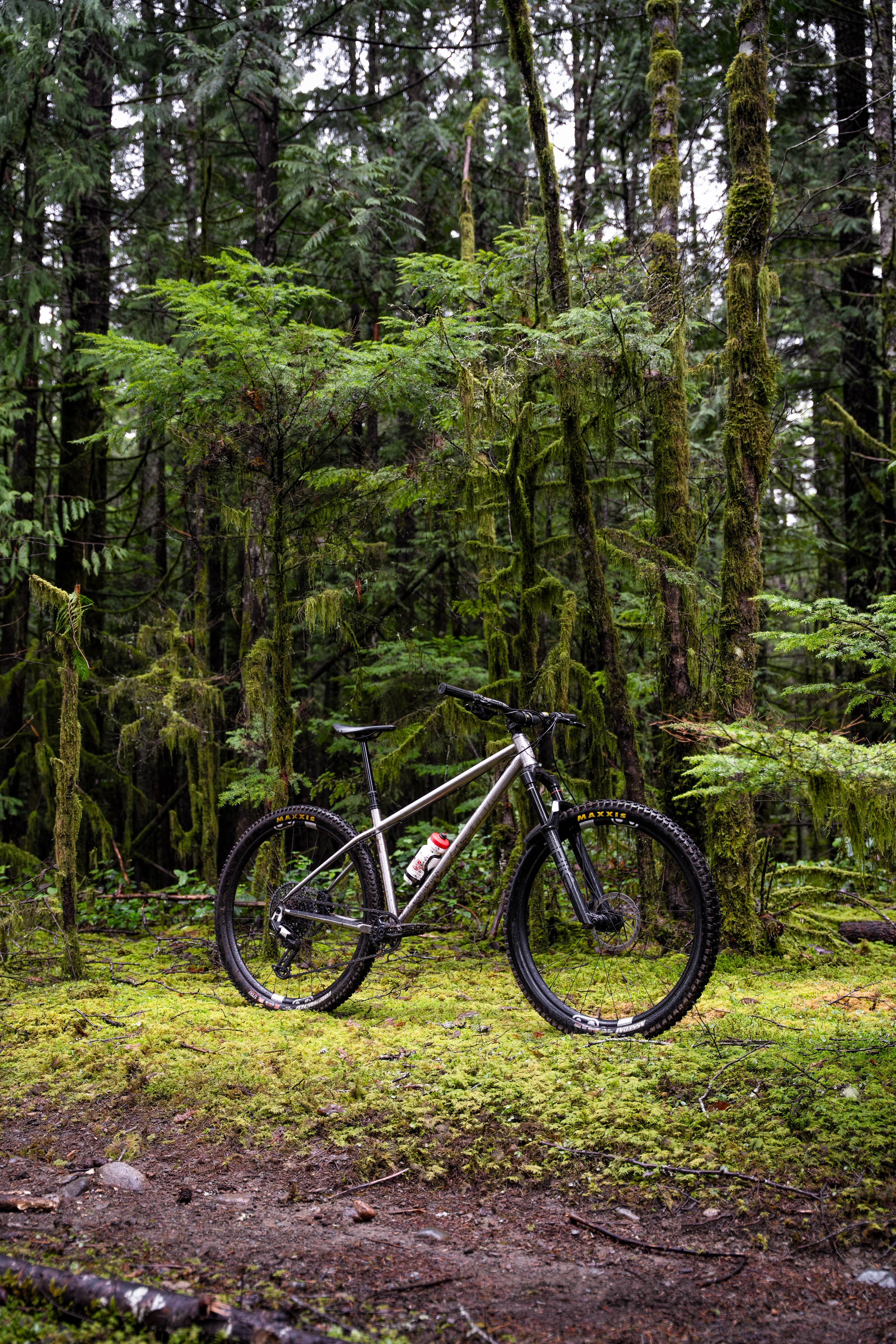

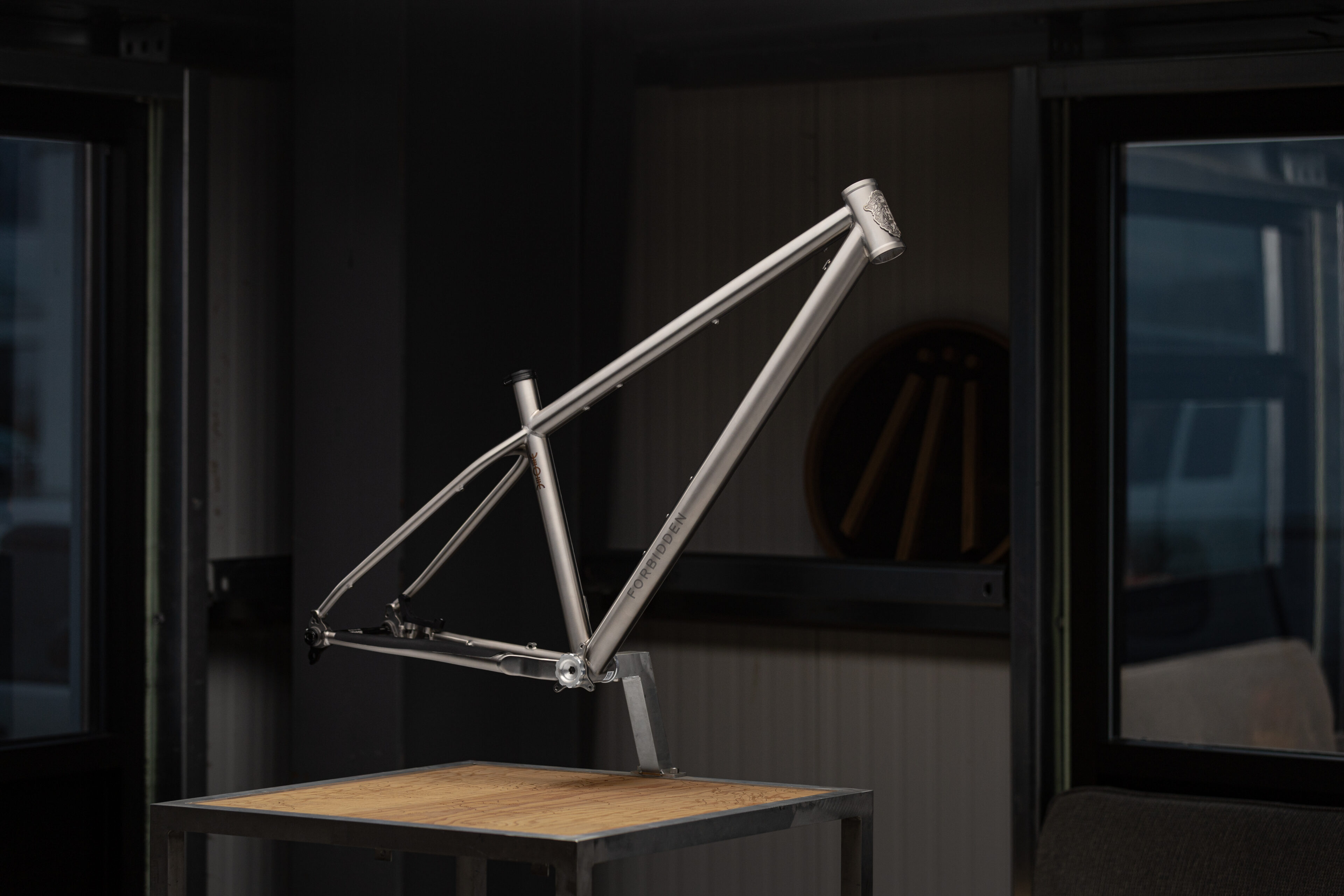

A slack aggressive hardtail MTB featuring our ONERIDE proportional sizing designed around a 130mm fork. A bike to be cherished or to be neglected. Build it up to beat it down year-round or bless it up with bespoke bits ‘til your friends start asking what you really do for work.

Smaller sizes (S1 & S2) run an MX wheel setup, while S3 & S4 are full 29. This size split allows us to maintain our front-centre to rear-centre ratio and preserve the intended ride characteristics across sizes.

The slack head angle might raise eyebrows for a short-travel bike, but it’s deliberate. A shorter fork keeps the geometry consistent under compression. Meaning the Heathen remains composed when it matters most.

This trail-ready chassis is intended to be a comfortable companion on everything from spicy XC loops to loaded up haul through the backcountry. A metallic mentor ready to guide us back to a life of mechanical minimalism.

A slack aggressive hardtail MTB featuring our ONERIDE proportional sizing designed around a 130mm fork. A bike to be cherished or to be neglected. Build it up to beat it down year-round or bless it up with bespoke bits ‘til your friends start asking what you really do for work.

Smaller sizes (S1 & S2) run an MX wheel setup, while S3 & S4 are full 29. This size split allows us to maintain our front-centre to rear-centre ratio and preserve the intended ride characteristics across sizes.

The slack head angle might raise eyebrows for a short-travel bike, but it’s deliberate. A shorter fork keeps the geometry consistent under compression. Meaning the Heathen remains composed when it matters most.

This trail-ready chassis is intended to be a comfortable companion on everything from spicy XC loops to loaded up haul through the backcountry. A metallic mentor ready to guide us back to a life of mechanical minimalism.

  • Intended Use

    Trail

  • Suspension

    Optimized for 130mm Fork

  • Wheel Size

    S1 & S2: MX | S3 & S4: 29

Choose Your Dream Ride

Choose Your Dream Ride

Titanium

$3,599 CAD

$3,599 CAD

Buy Now

$3,599 CAD

$3,599 CAD

Buy Now
Scroll

Size Guide

Size Guide

S1 (MX Wheels)

S1 (MX Wheels)

S2 (MX Wheels)

S2 (MX Wheels)

S3 (29 Wheels)

S3 (29 Wheels)

S4 (29 Wheels)

S4 (29 Wheels)

5'2

158cm

5'6

168cm

S1 (MX Wheels) 29"
  • Reach: 435
  • Stack: 621
  • HT Angle: 64
  • ST Angle: 76
  • Front Center: 756.4
  • Rear Center: 399
  • Wheel Base: 1155.4
  • BB drop: -50

5'6"

168cm

5'10

178cm

S2 (MX Wheels) 29"
  • Reach: 455
  • Stack: 630
  • HT Angle: 64
  • ST Angle: 76
  • Front Center: 780.8
  • Rear Center: 413
  • Wheel Base: 1192.8
  • BB drop: -50

5'10

178cm

6'2

188cm

S3 (29 Wheels) 29"
  • Reach: 475
  • Stack: 639
  • HT Angle: 64
  • ST Angle: 76
  • Front Center: 805.2
  • Rear Center: 427
  • Wheel Base: 1232.2
  • BB drop: -62.4

6'2

188cm

6'6

198cm

S4 (29 Wheels) 29"
  • Reach: 495
  • Stack: 648
  • HT Angle: 64
  • ST Angle: 76
  • Front Center: 829.6
  • Rear Center: 441
  • Wheel Base: 1270.6
  • BB drop: -62.4

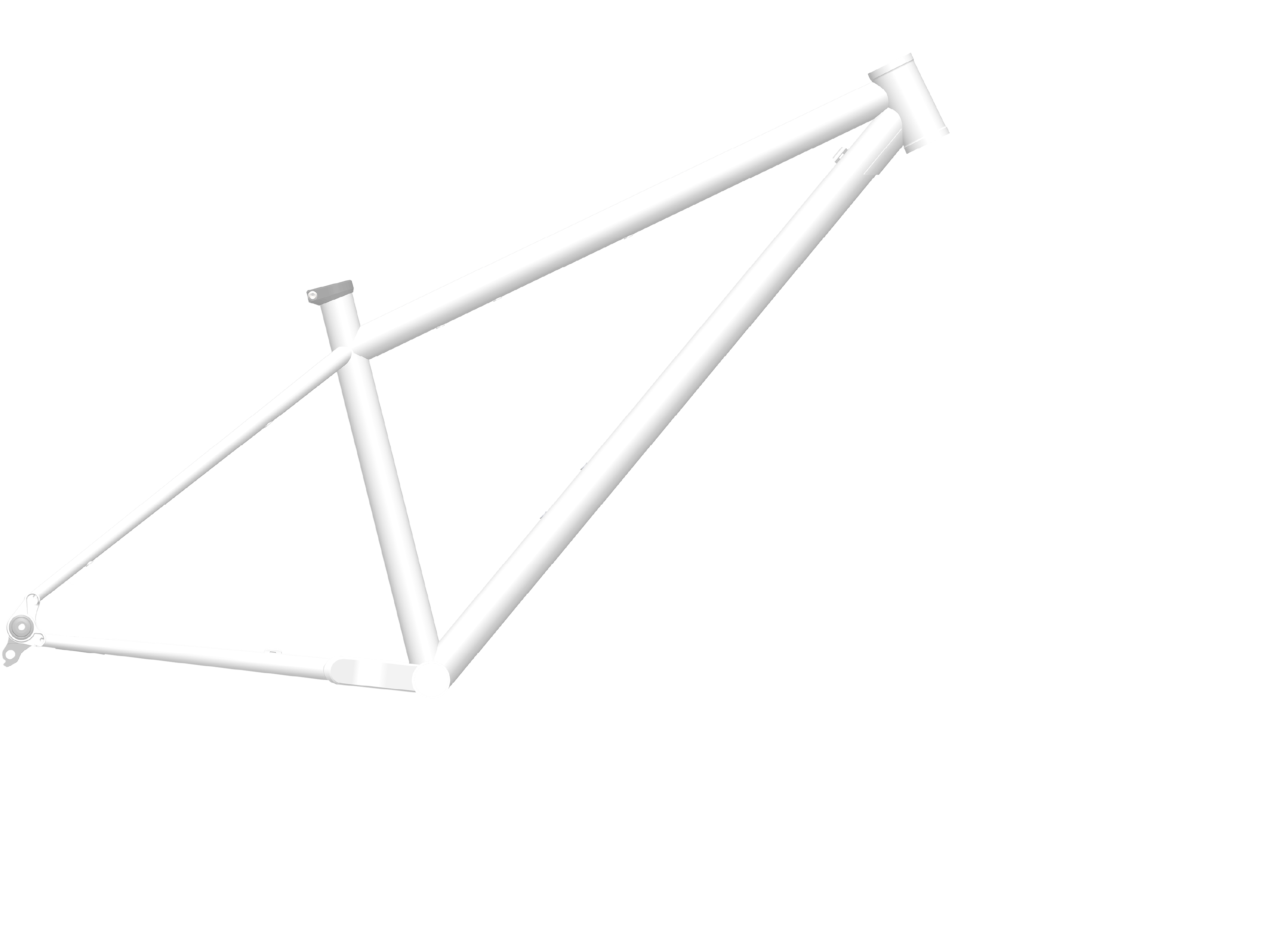

29" Geometry

29" Geometry

Fork Size 130mm S1 (MX Wheels) S2 (MX Wheels) S3 (29 Wheels) S4 (29 Wheels)
A Reach 435 455 475 495
B Stack 621 630 639 648
C Hori. Top Tube Length 590 4612 634 657
D Seat Tube Length 400 420 440 470
E Seat Tube Angle (Effective) 76 76 76 76
F Seat Tube Angle (Actual) 75.3 76.0 75.3 76.0
G Head Tube Length 90 100 110 120
H Head Tube Angle 64 64 64 64
I Front Center 756.4 780.8 805.2 829.6
J Rear Center 399 413 427 441
K Wheel base 1155.4 1192.8 1232.2 1270.6
L BB Drop -50 -50 -62.4 -62.4
M BB Height 301 301 311 311
N Stand Over 716 728 740 764
O Fork Length 541 541 541 541
P Fork Offset 44 44 44 44
Size Guide 29" Geometry

Technical Info

Technical Info

  • Fork Length (Max.)

    562mm

  • S.H.I.S.

    ZS44/28.6 EC44

  • Bottom Bracket

    73mm BSA Threaded

  • ISCG 05

    Upper and Lower Tabs

  • Chain Line

    52mm

  • Max. Chain Ring

    38T

  • Seat Post Diameter

    31.6

  • Seat Clamp Diameter

    34.9mm (included)

  • Seat Post Insertion Max

    S1 & S2: 27.5 x 2.4 | S3 & S4: 29 x 2.4

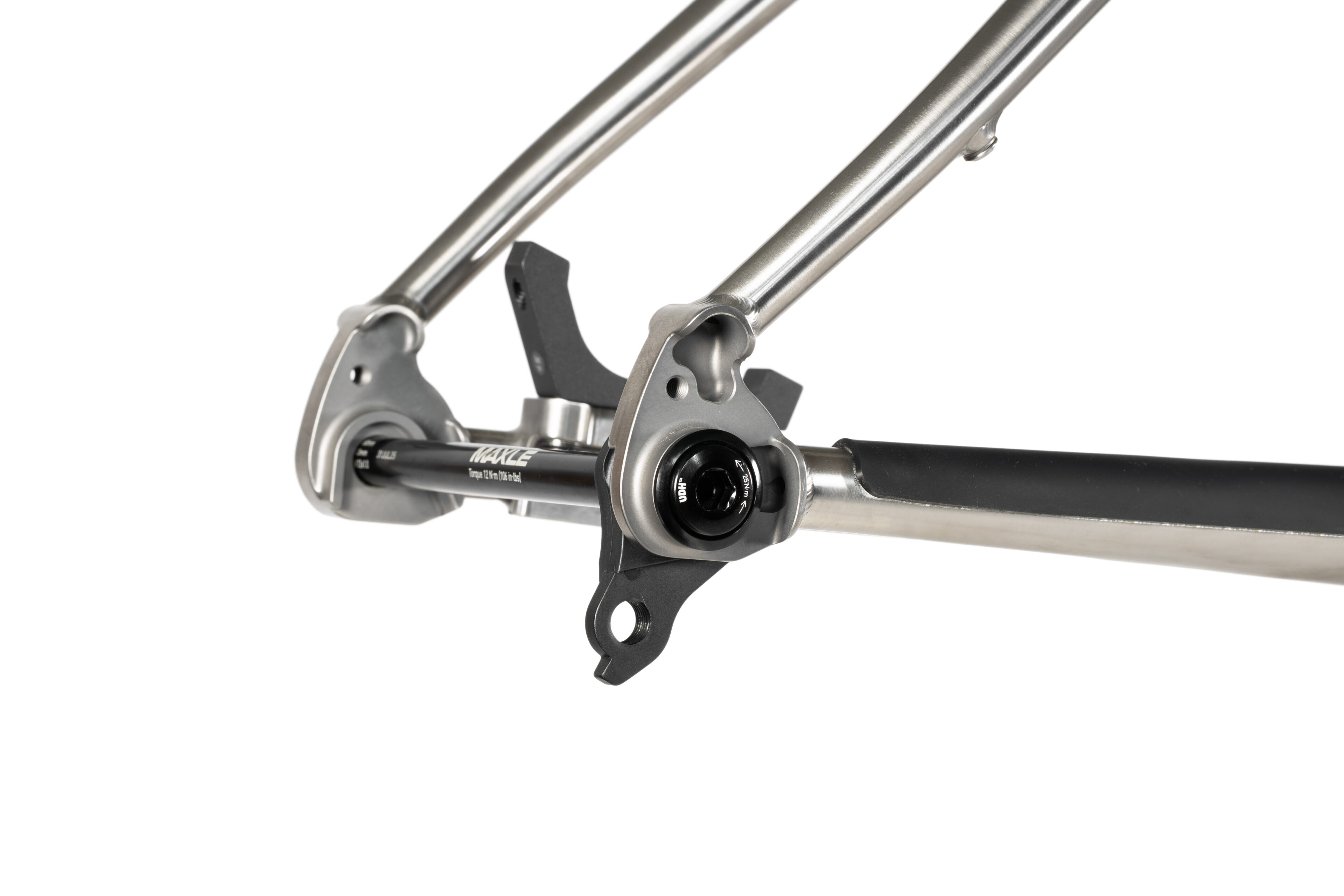

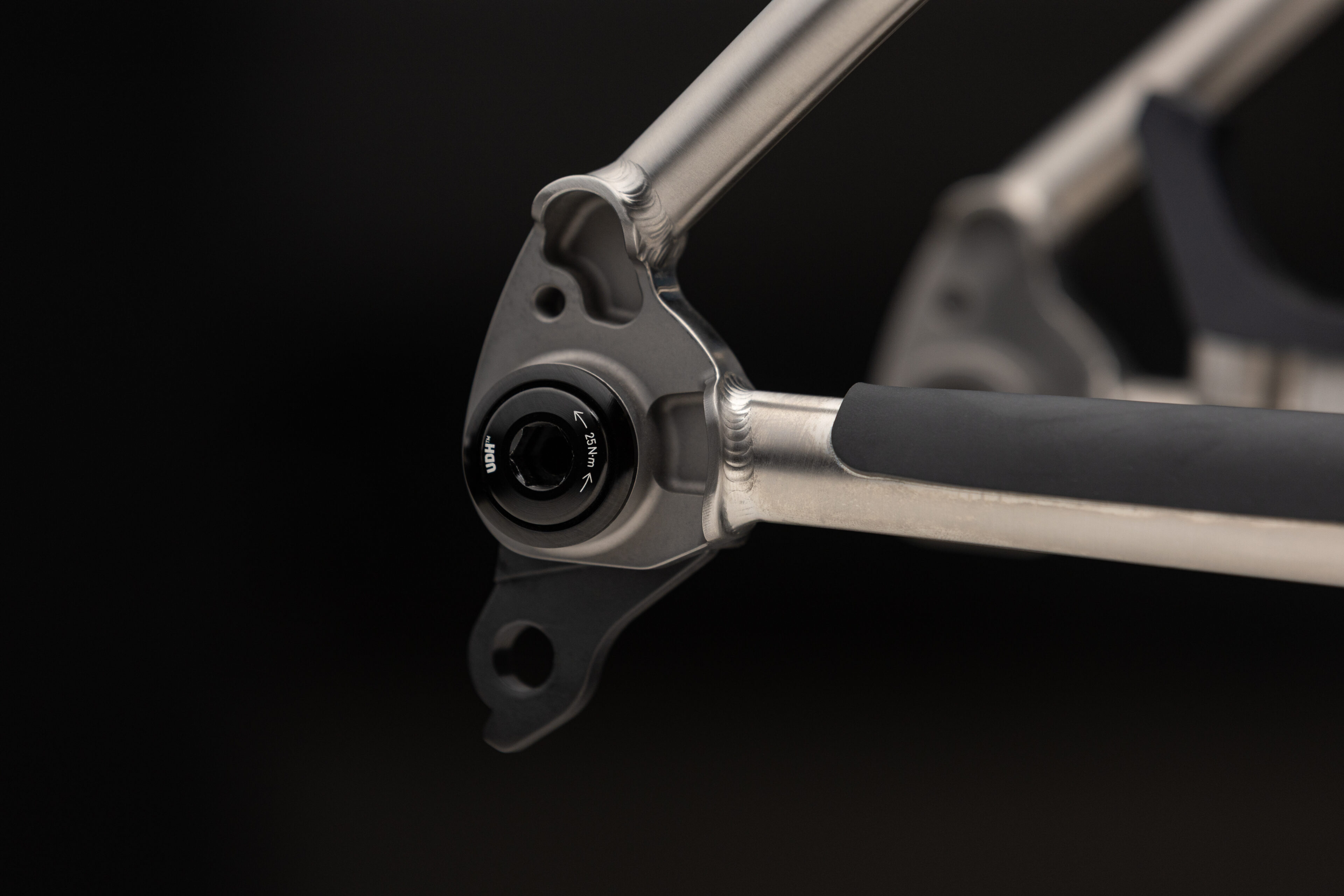

  • Rear Hub Spacing

    148mm x 12mm

  • Recommended Tire Size

    S1 & S2: 27.5 x 2.4 | S3 & S4: 29 x 2.4

  • Max. Tire Size

    S1 & S2: 27.5 x 2.4 | S3 & S4: 29 x 2.4

The industry’s only TRULY
PROPORTIONAL geometry.

The industry’s only TRULY PROPORTIONAL geometry.

Learn More

Things You Should Know

Things You Should Know

Things You
Should Know

Things You Should Know

01 Metal Head Tube Badge 02 Accessory Mount 03 Sensible Standards 04 Water Bottle Fitment 05 Cable Management
01

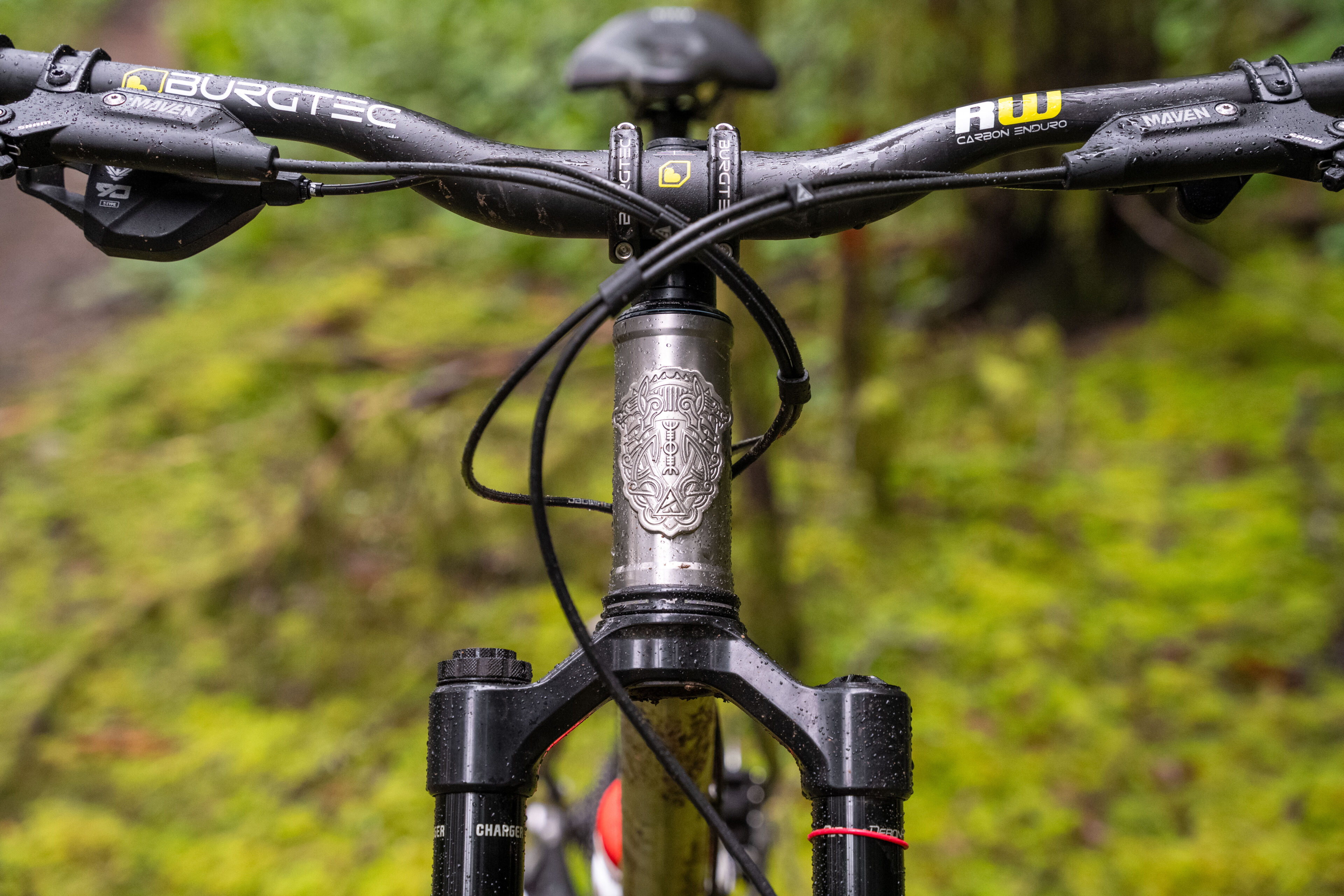

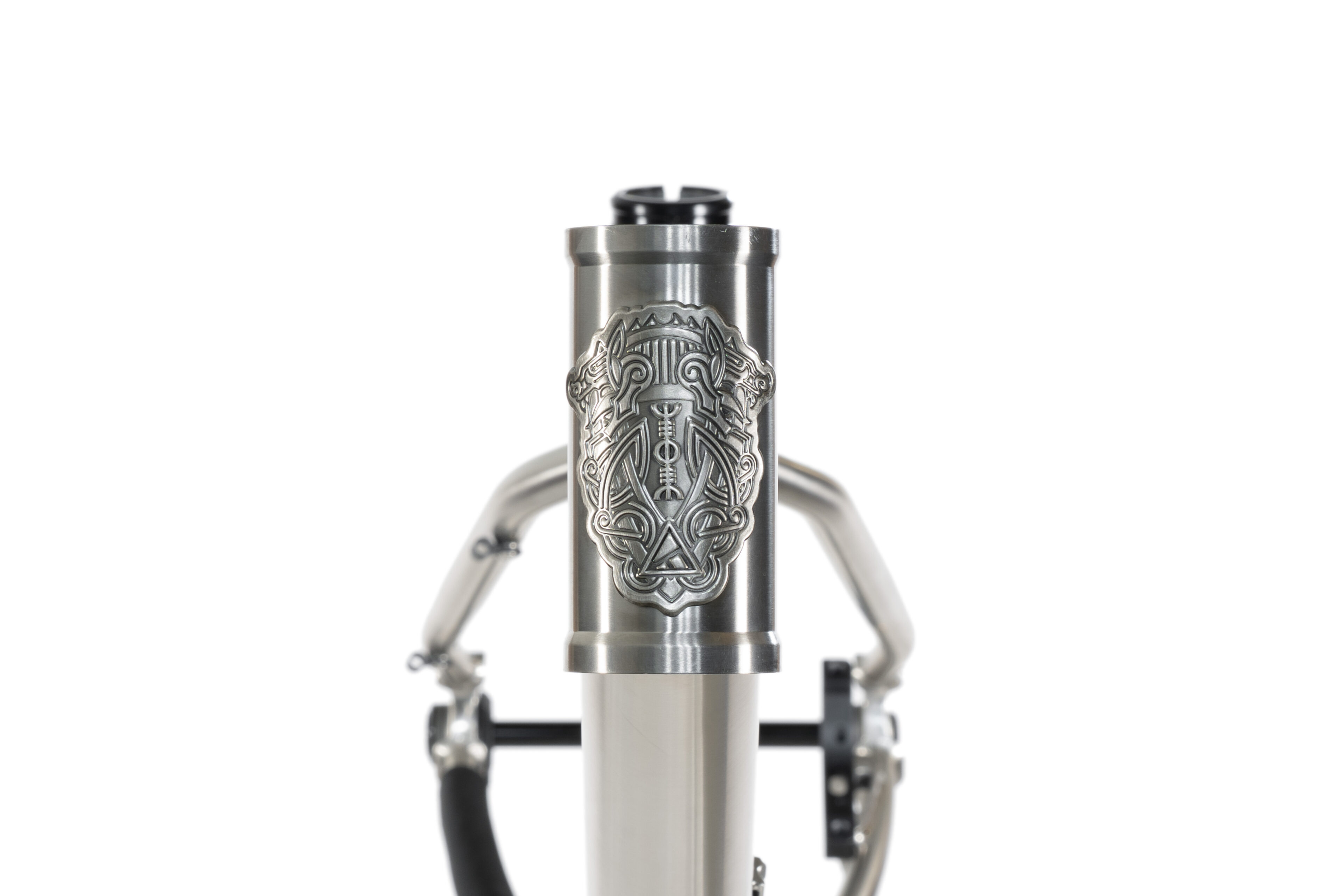

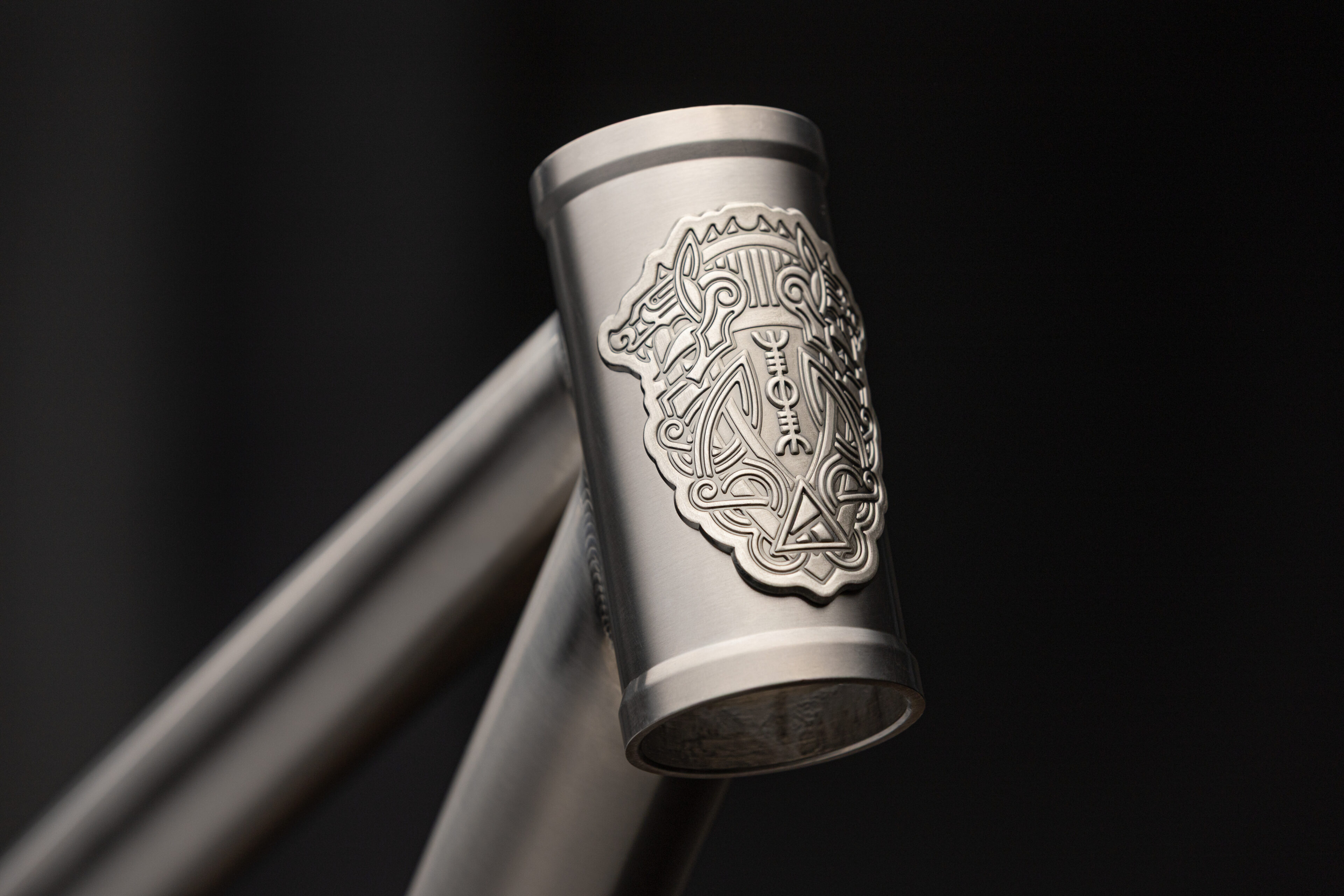

Metal Head Tube Badge

Metal Head Tube Badge

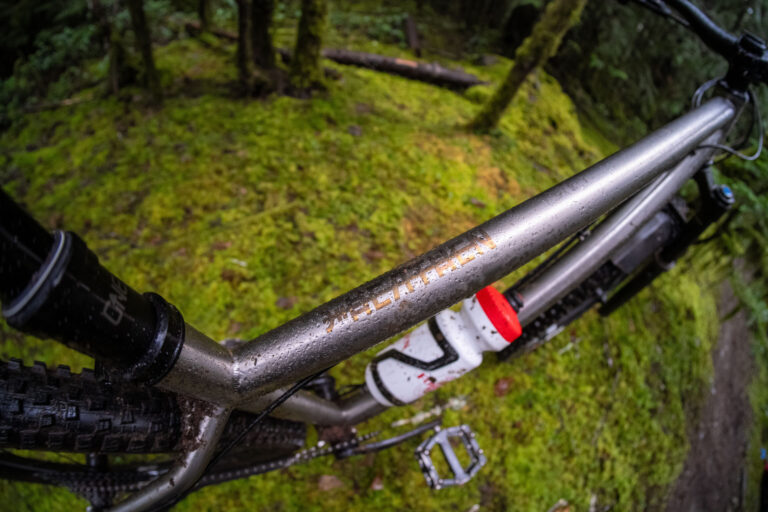

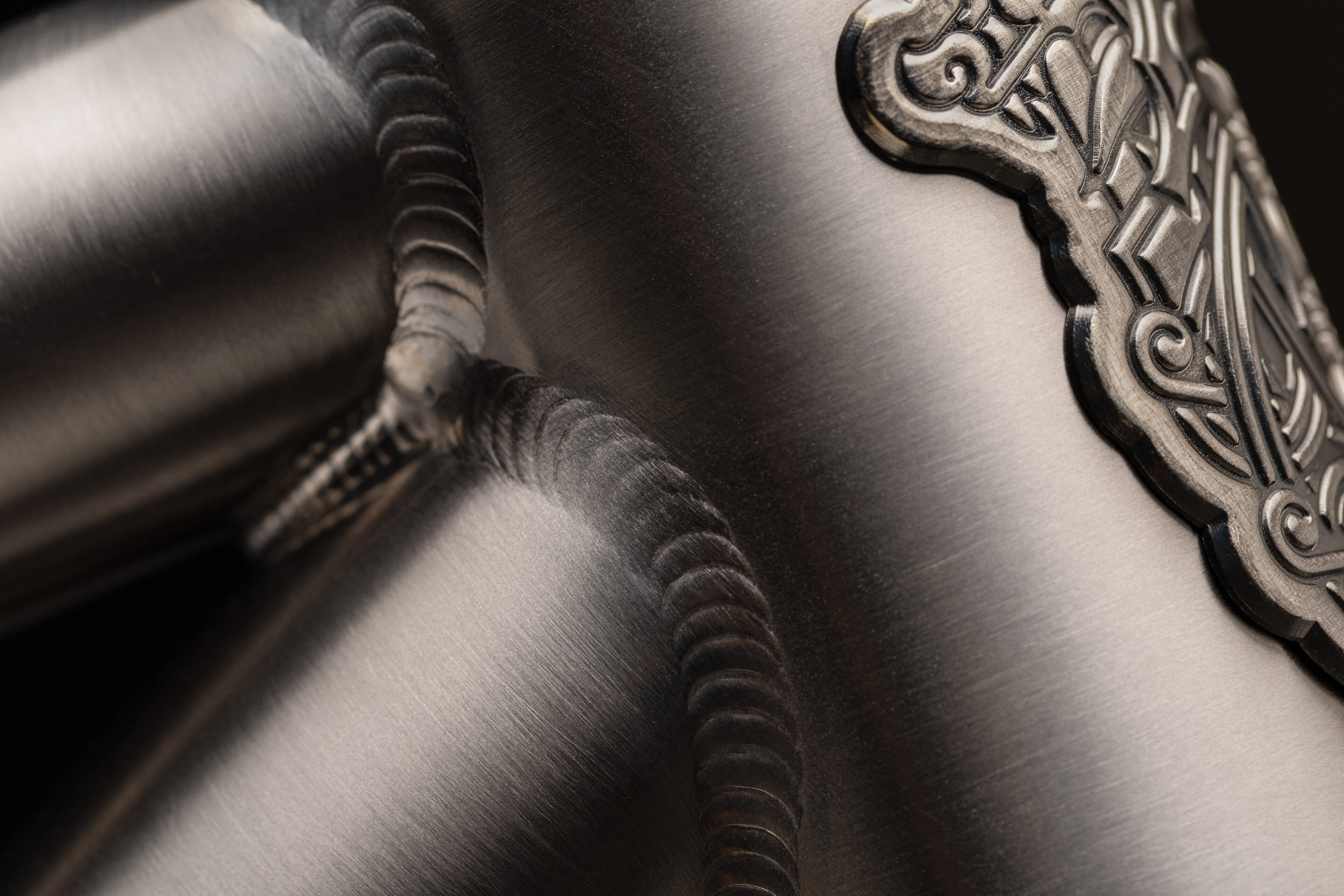

The Heathen sports a one of a kind metal head tube badge designed in collaboration with Tom Bunney.

The Heathen sports a one of a kind metal head tube badge designed in collaboration with Tom Bunney.

02

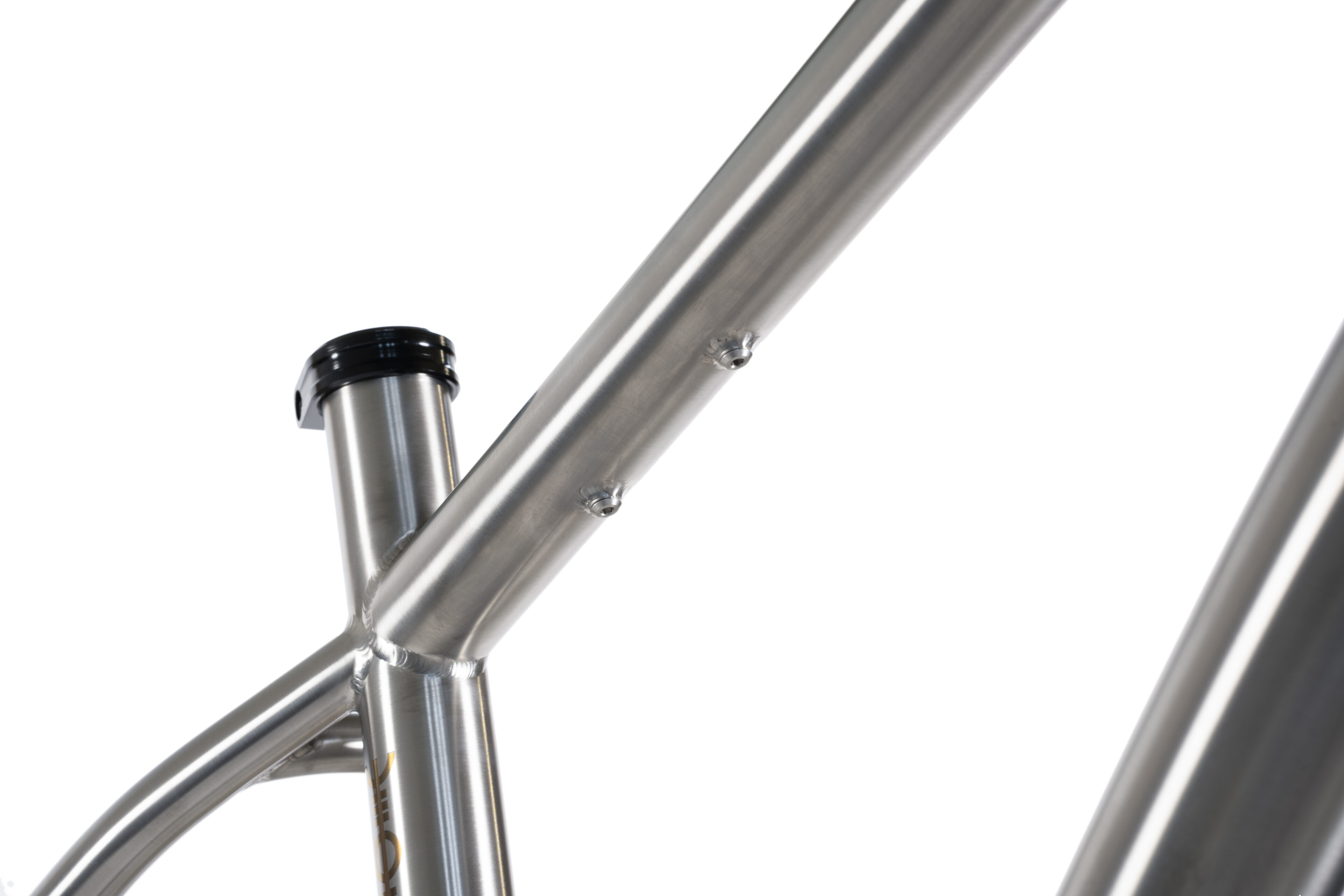

Accessory Mount

Accessory Mount

The ‘under the top tube’ mounting screws allow for the attachment of various accessory mounting solutions; pump, tools, a banana, the kitchen sink, go crazy, just don’t hang a water bottle there.

The ‘under the top tube’ mounting screws allow for the attachment of various accessory mounting solutions; pump, tools, a banana, the kitchen sink, go crazy, just don’t hang a water bottle there.

03

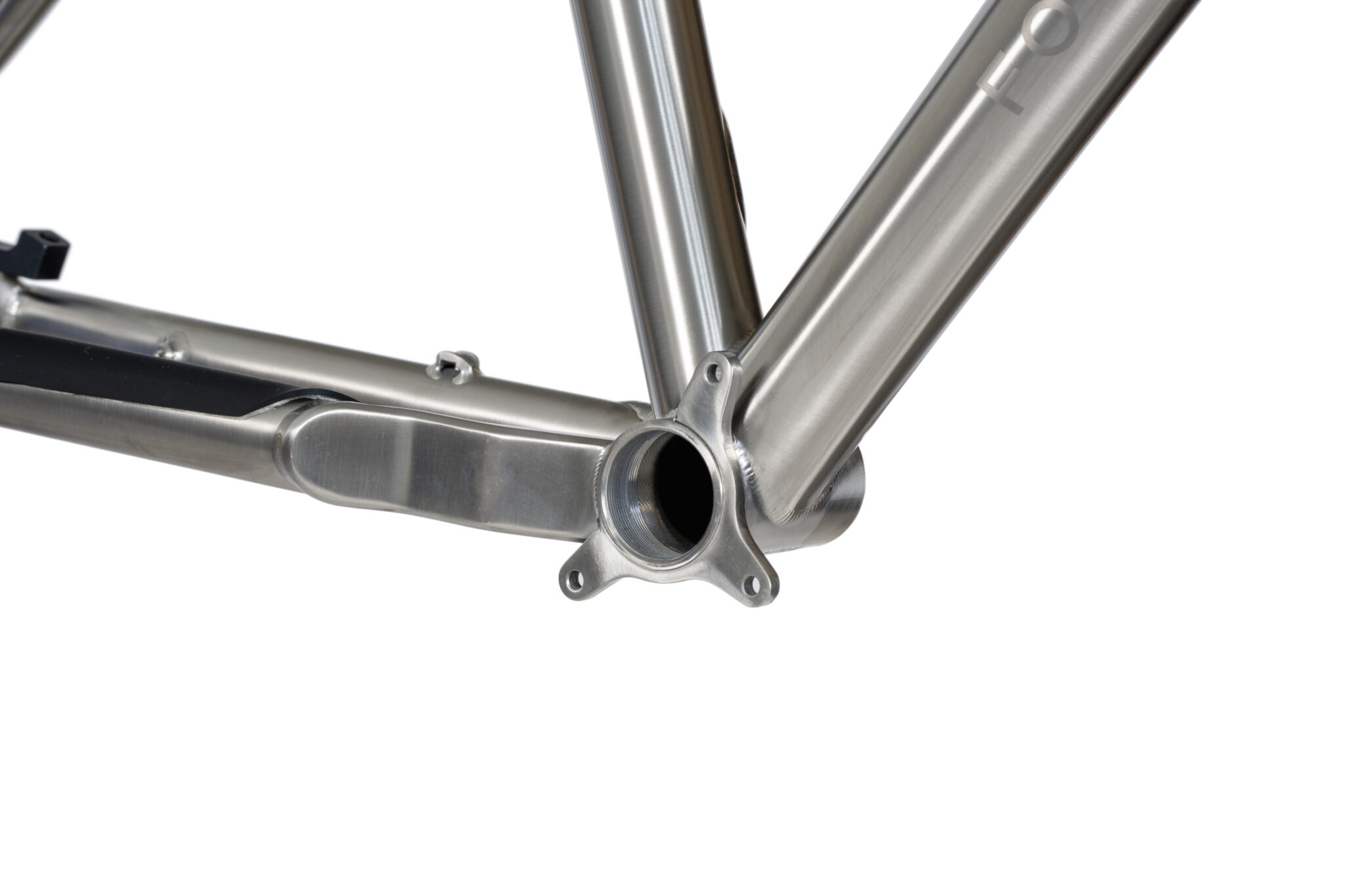

Sensible Standards

Sensible Standards

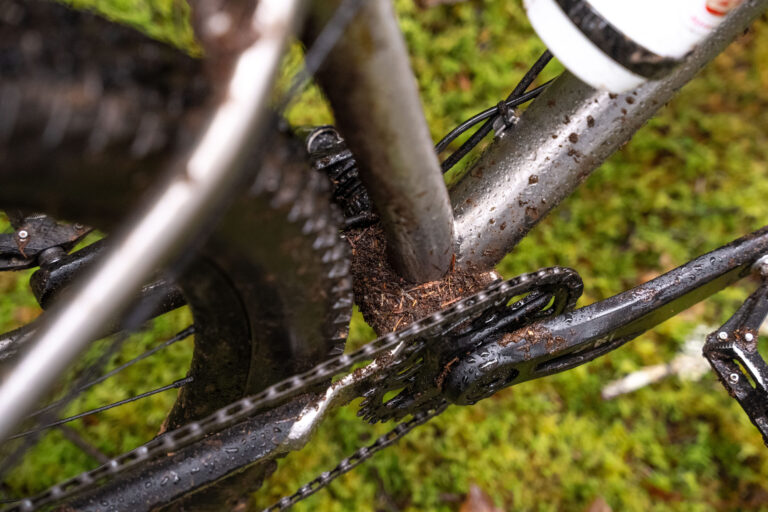

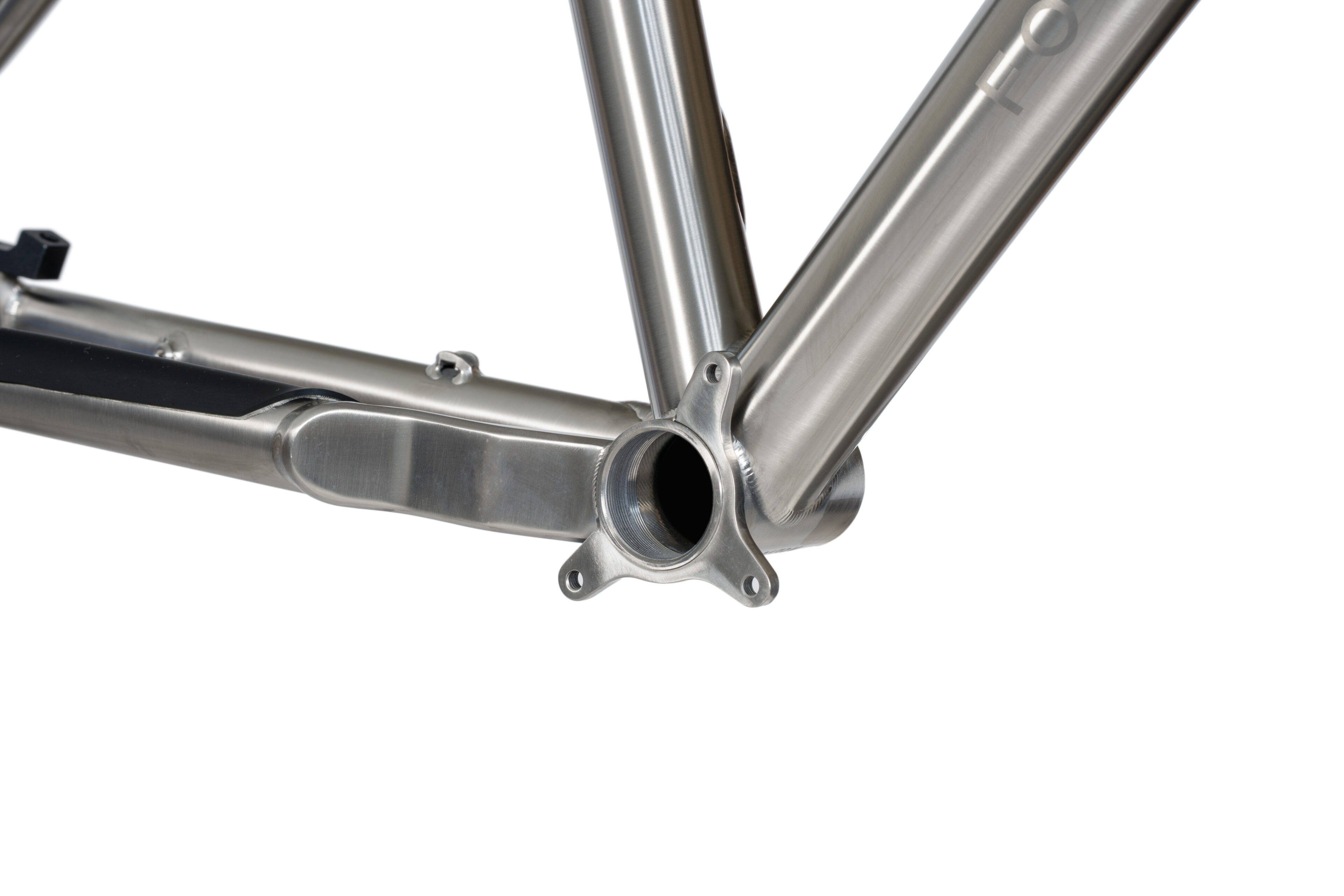

Threaded BB, ISCG tabs, press in headset cups – we only use what makes sense from a design and durability standpoint. You won’t find any questionable trends here.

Threaded BB, ISCG tabs, press in headset cups – we only use what makes sense from a design and durability standpoint. You won’t find any questionable trends here.

04

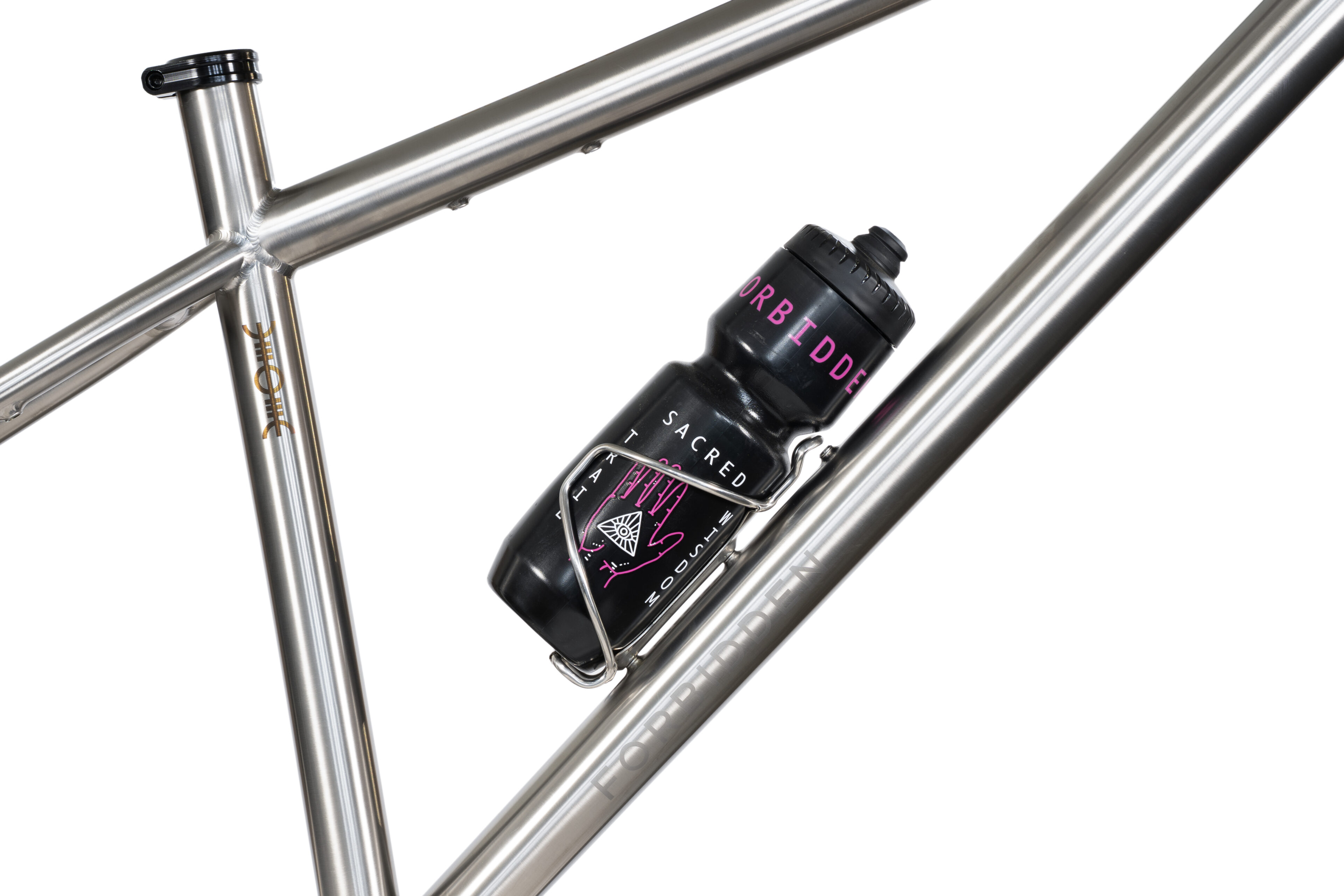

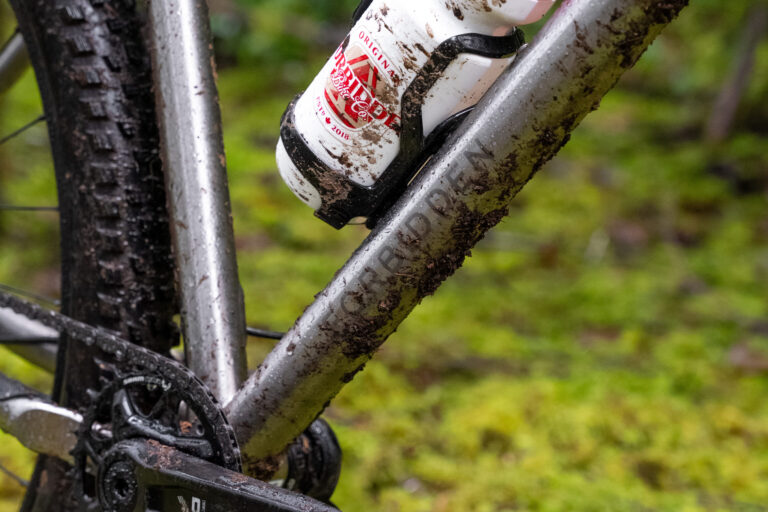

Water Bottle Fitment

Water Bottle Fitment

Even our smallest Heathen frame size can fit at least a full-size 26oz water bottle. Remember, hydration is your friend, but sweaty backs most definitely are not.

Even our smallest Heathen frame size can fit at least a full-size 26oz water bottle. Remember, hydration is your friend, but sweaty backs most definitely are not.

05

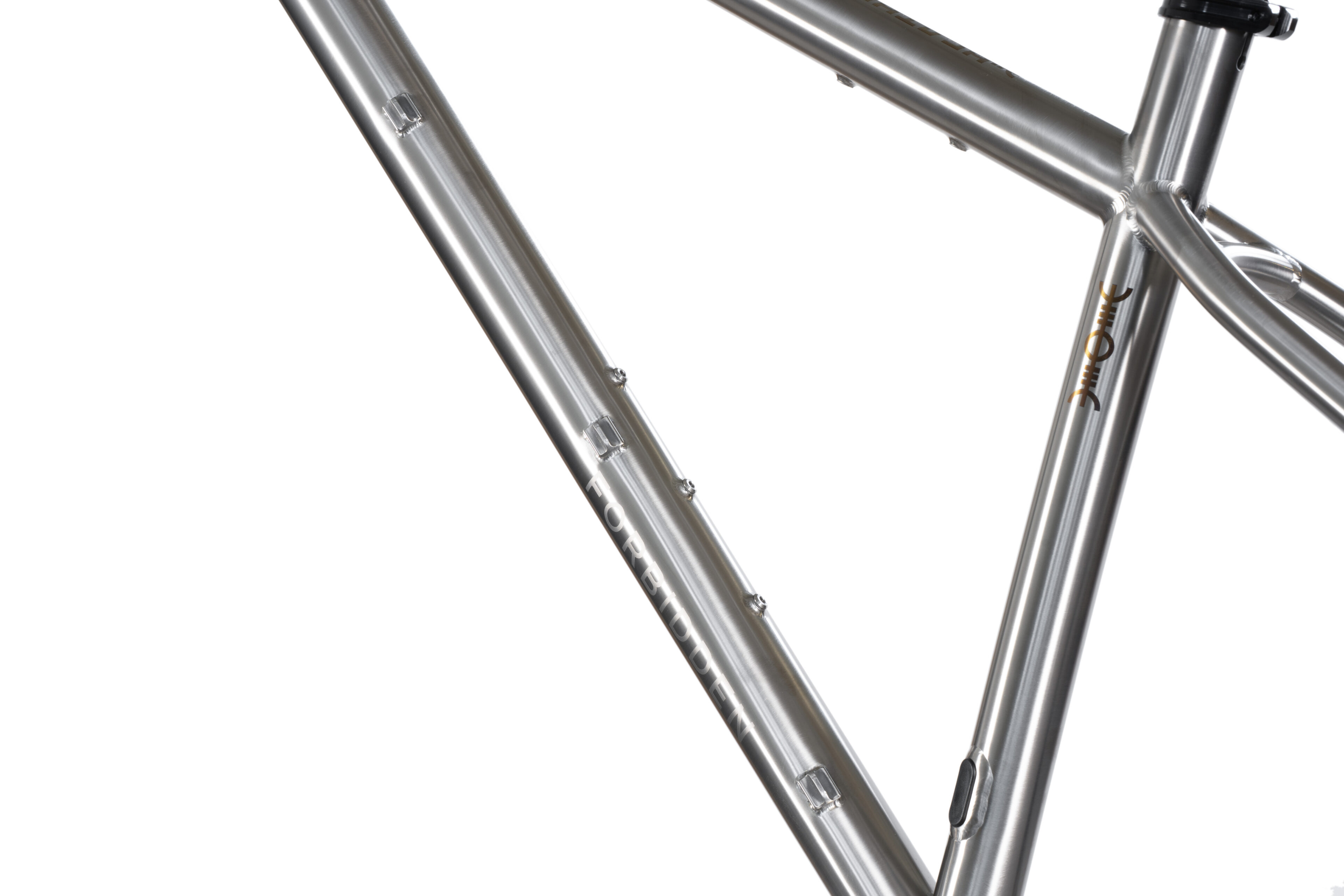

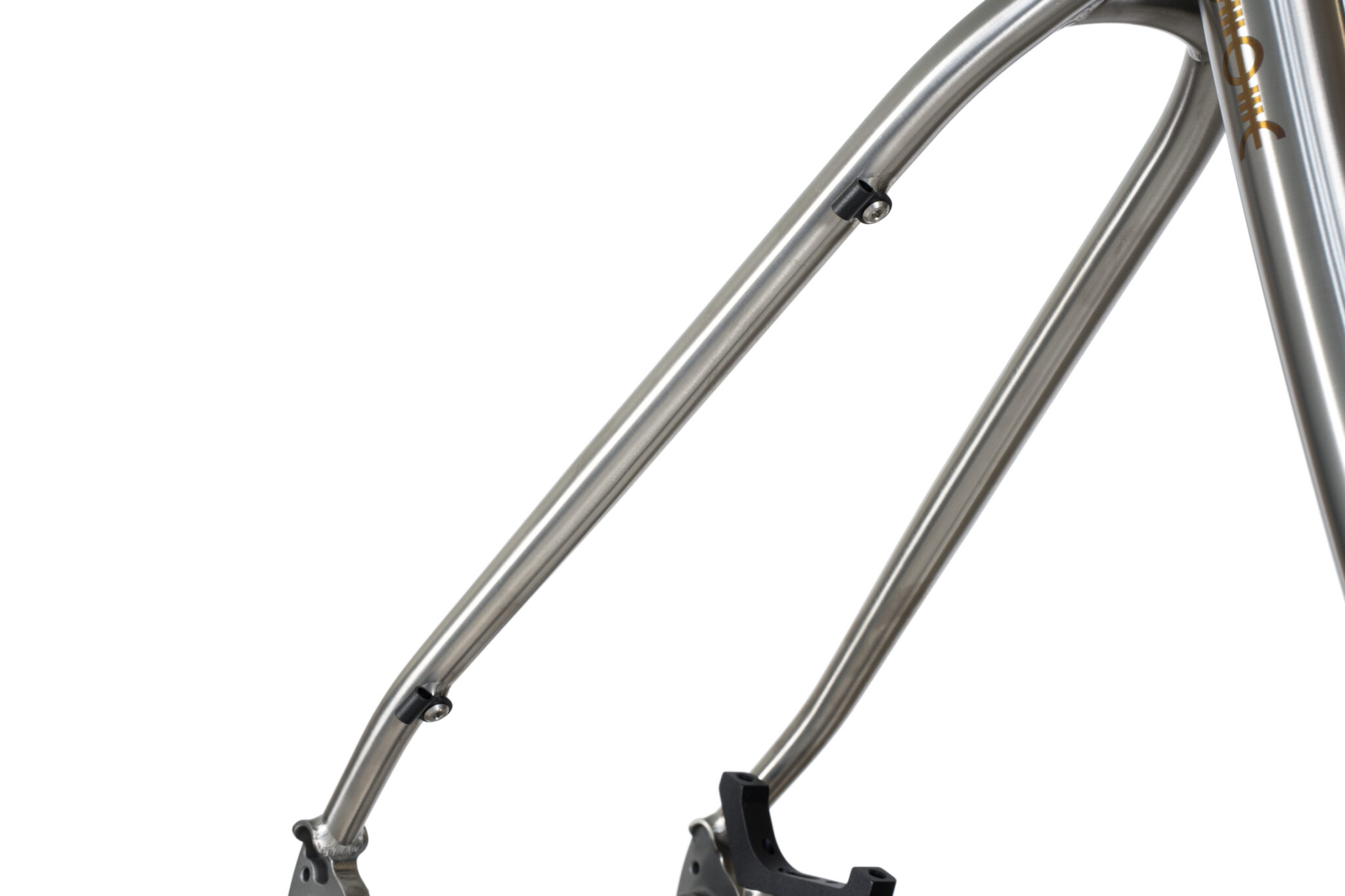

Cable Management

Cable Management

Thoughtfully placed external cable mounting points keep hoses and housing in place and rattle free. A dropper post cable port on the seat tube makes for easy routing and a clean finish.

Thoughtfully placed external cable mounting points keep hoses and housing in place and rattle free. A dropper post cable port on the seat tube makes for easy routing and a clean finish.
