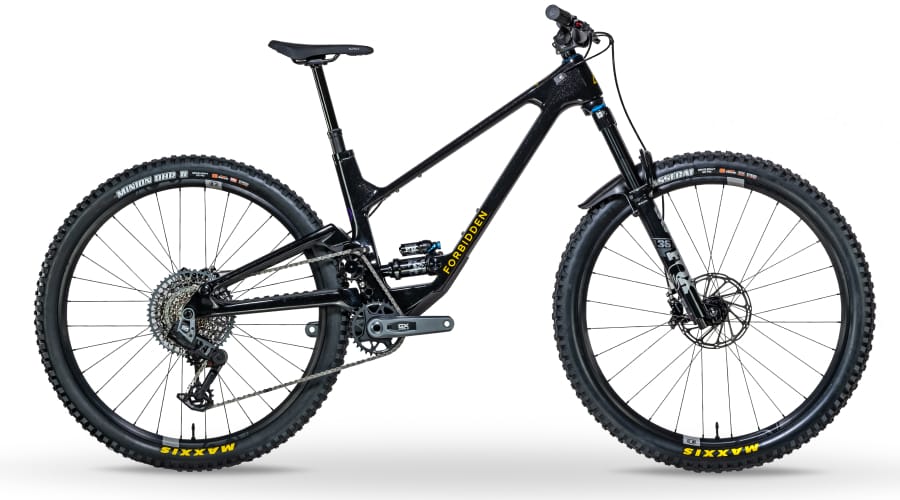

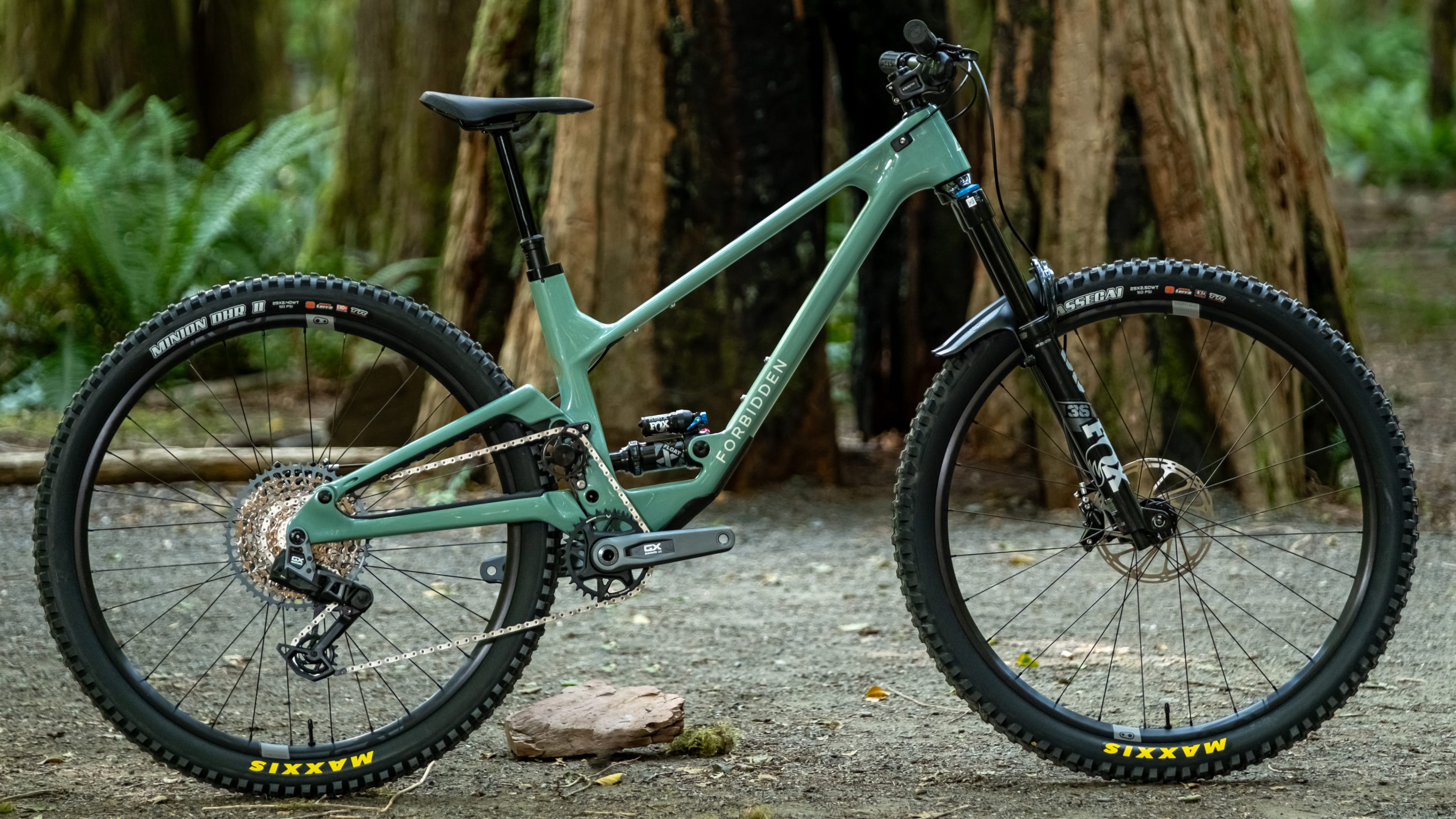

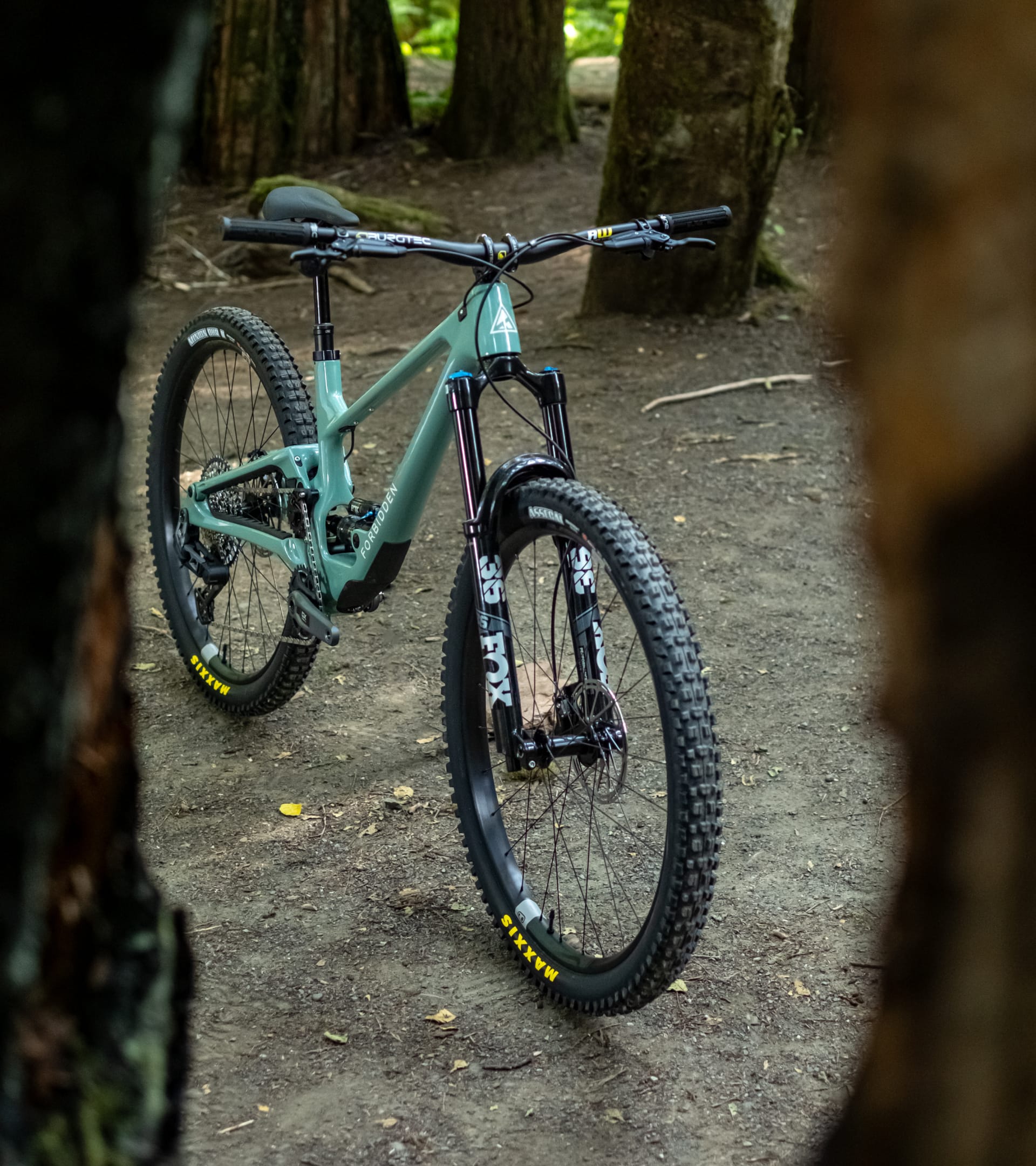

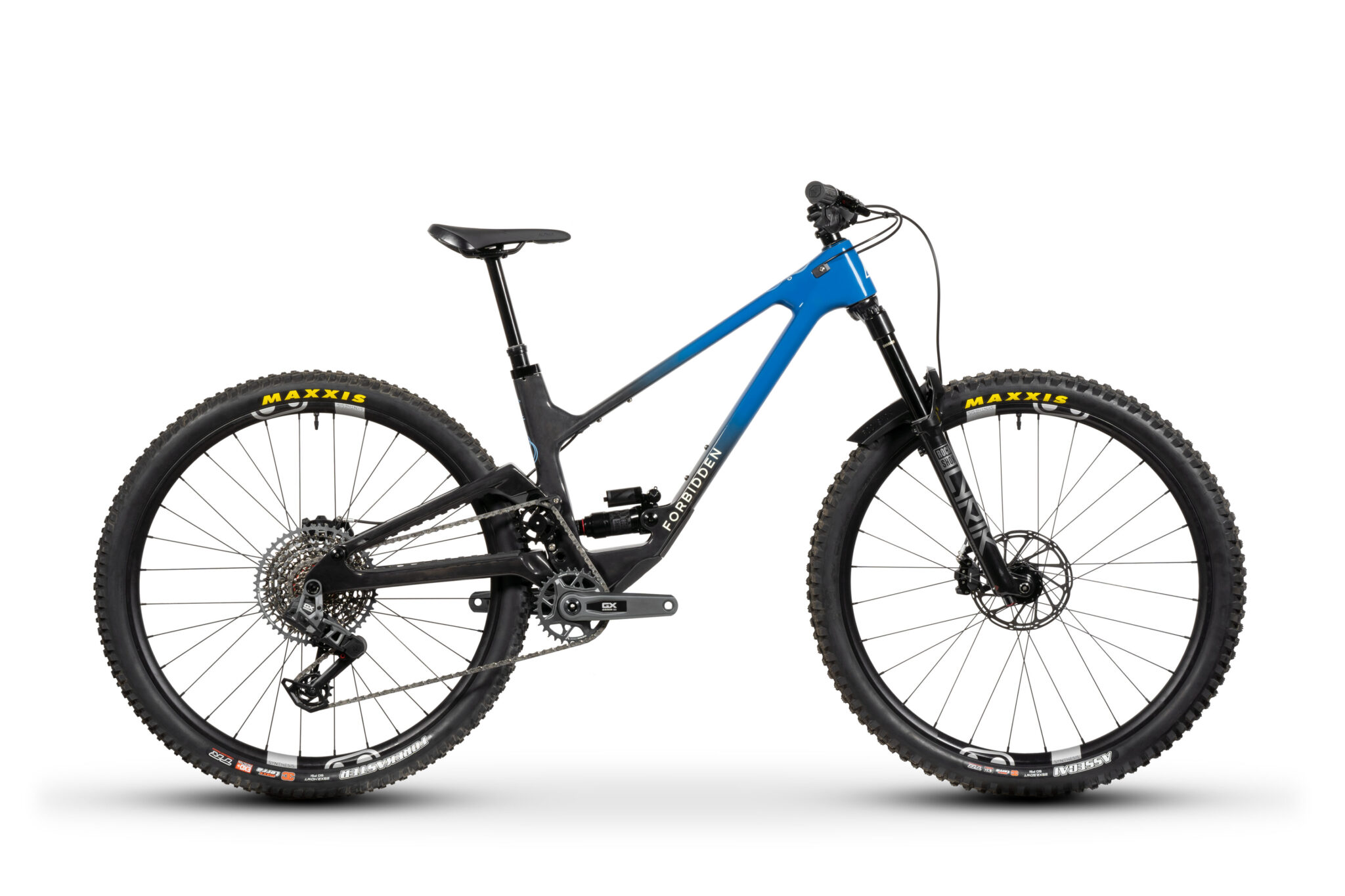

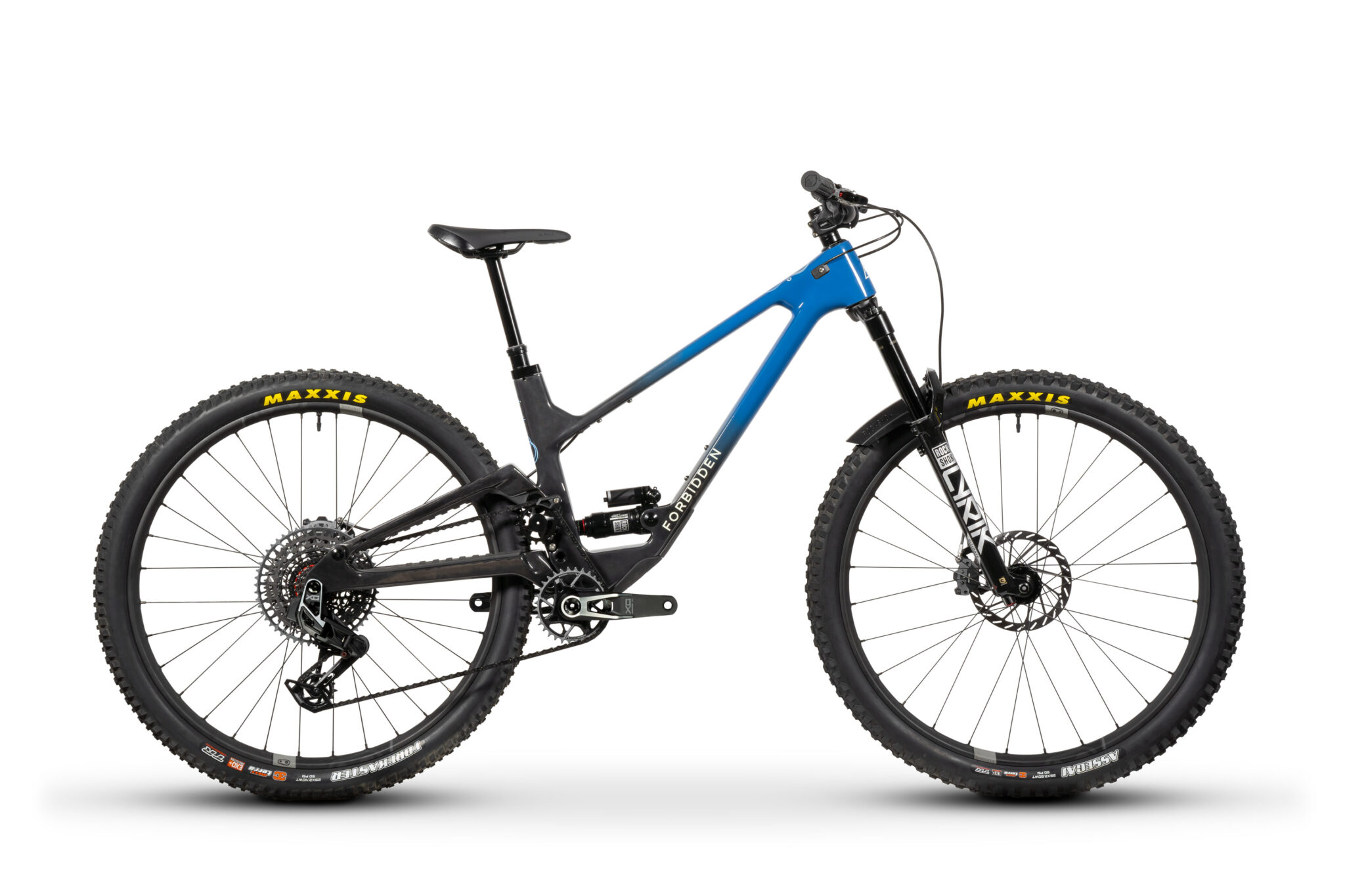

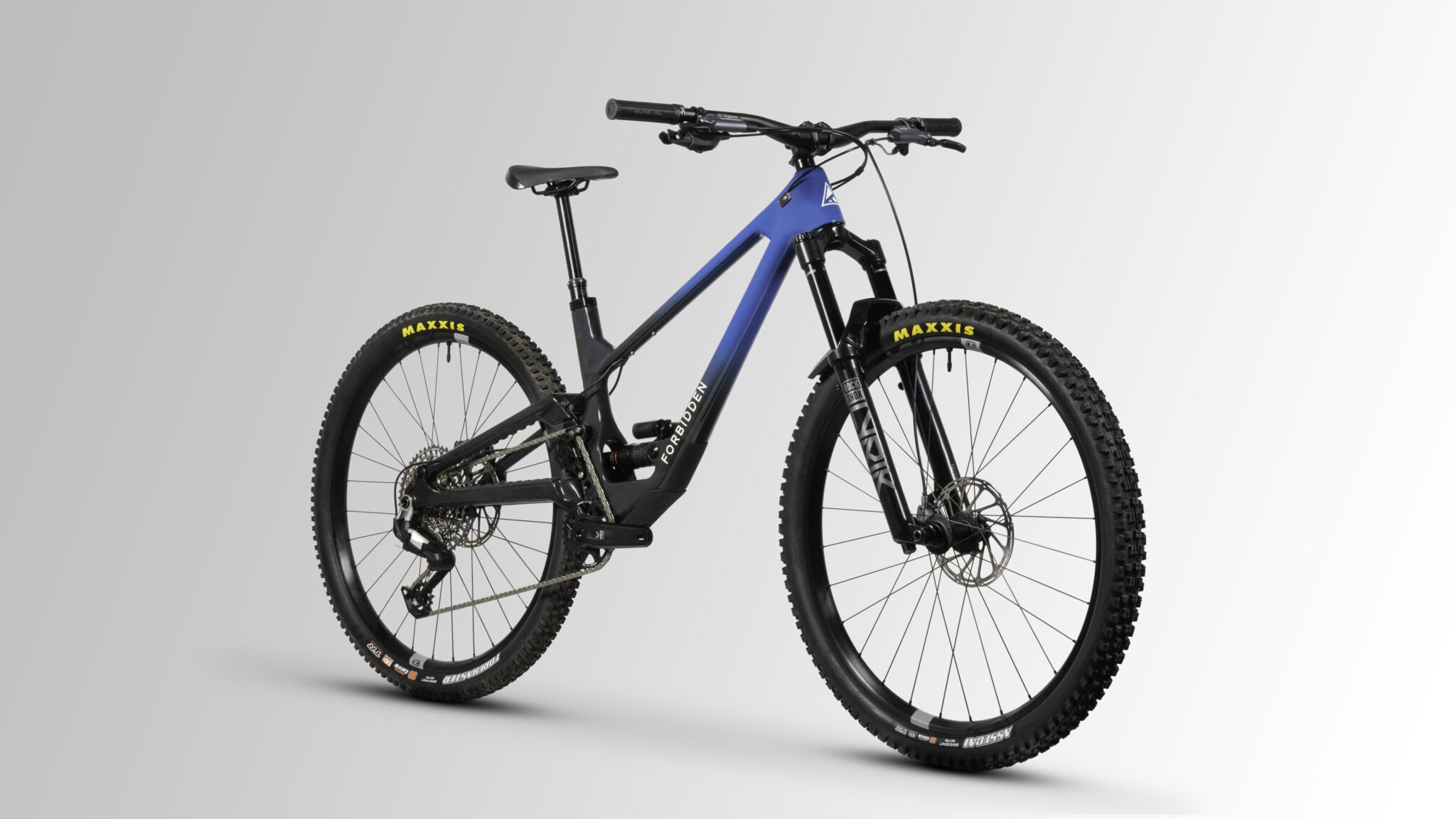

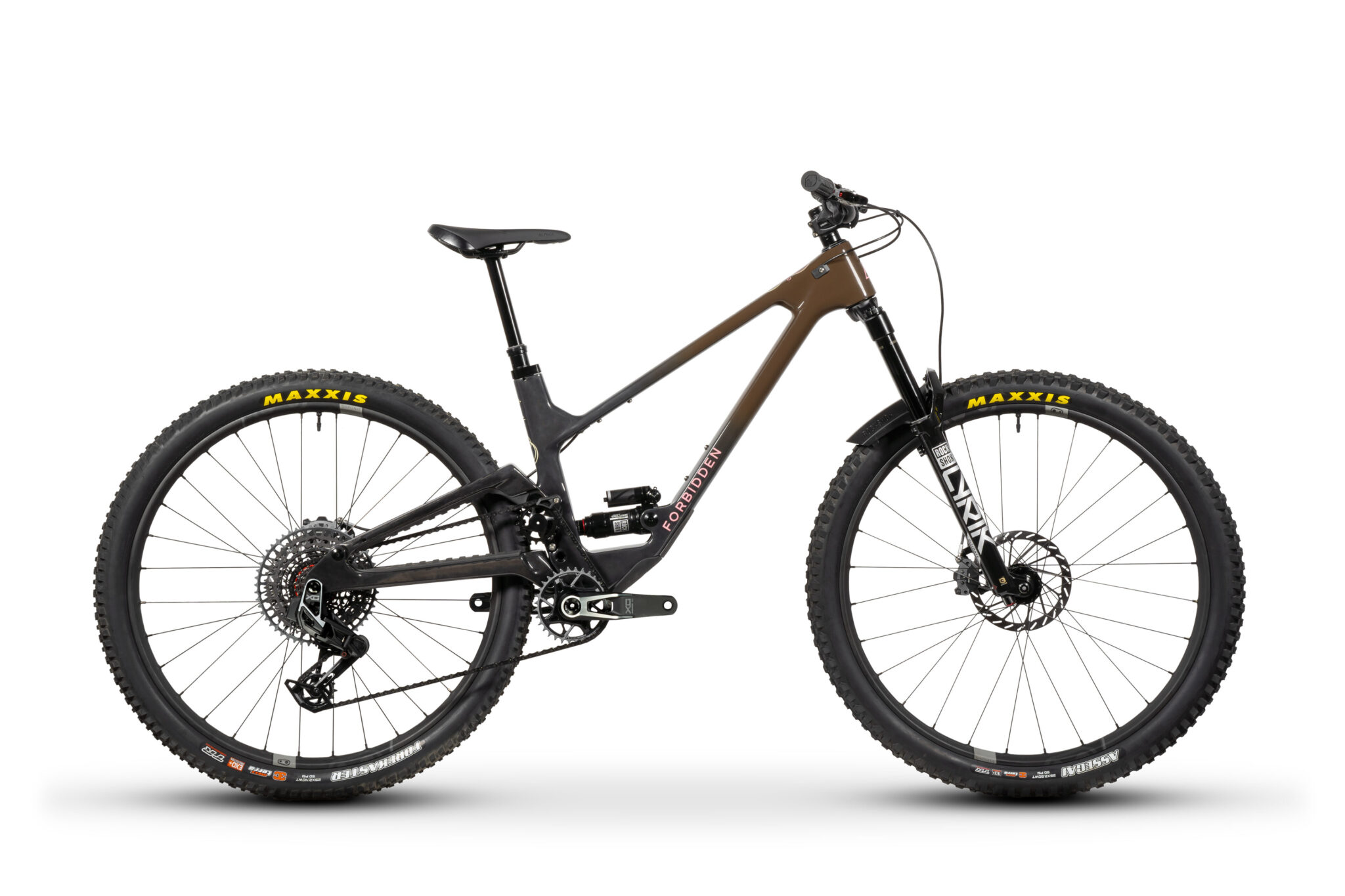

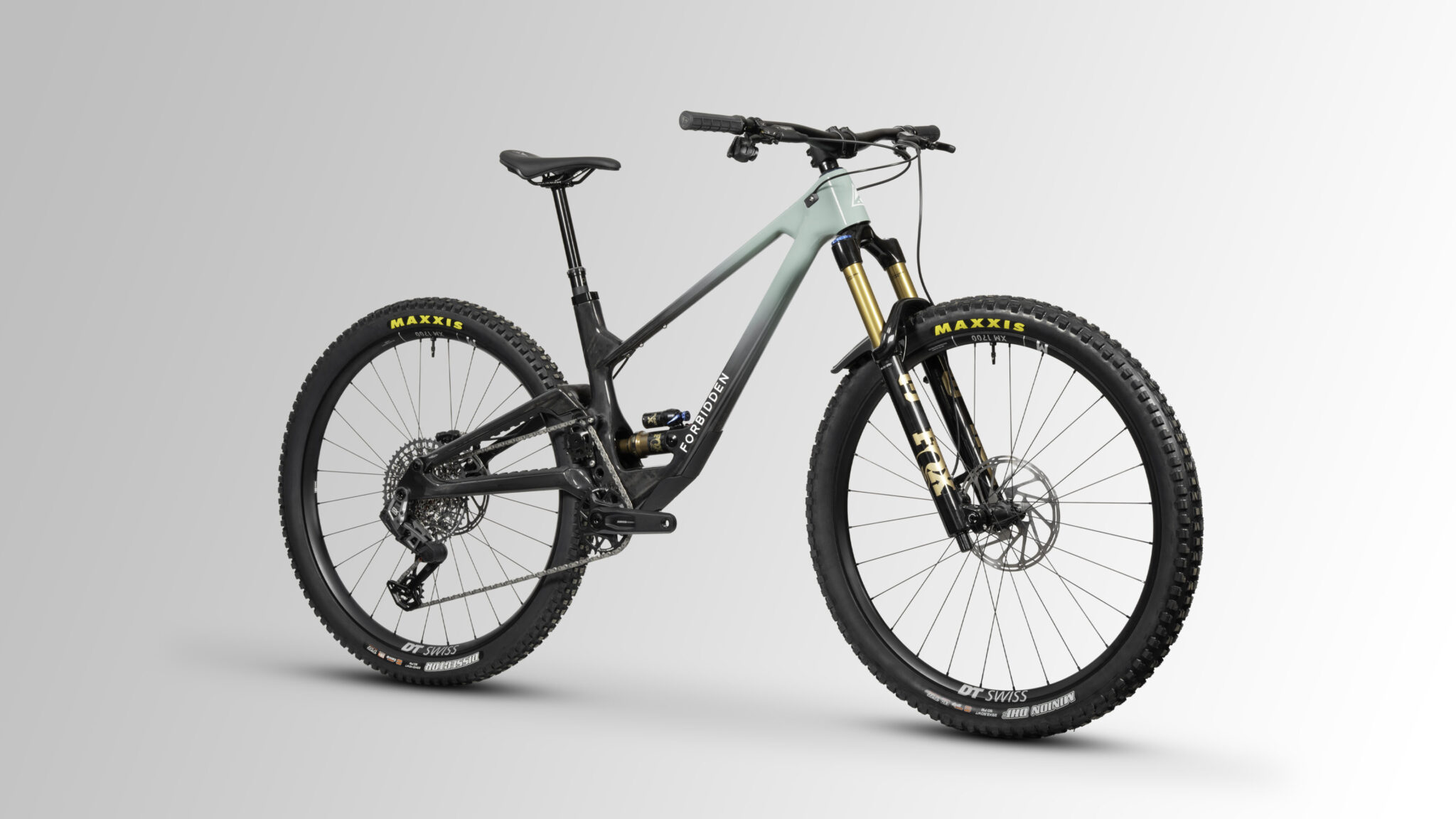

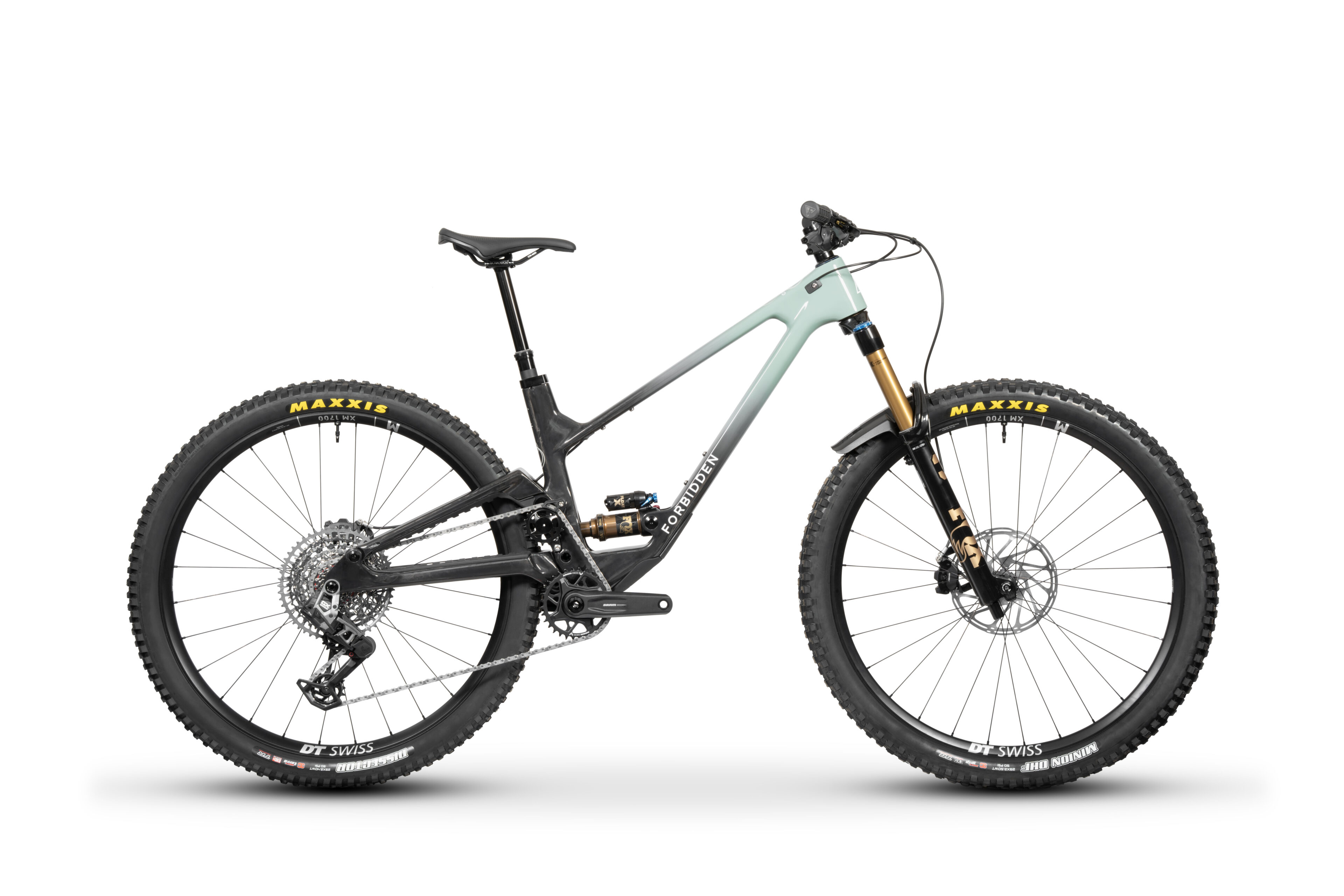

Druid is the modern wolf in sheep’s clothing. Its high pivot Trifecta suspension platform defies logic. Simultaneously generating predictable traction and playful pop while offering an otherworldly ability to devour chunky terrain. With geometry that effortlessly balances stability and agility, the Druid is a trail bike through and through. This bike is equally at home hammering out trail rides after work, ripping weekend shuttle laps, and crushing epic alpine traverses. This humble (on paper) trail bike boasts on-trail characteristics that don’t just punch above their class they defy classification altogether. A bike that delivers pedal-all-day efficiency when you want it and tech-descent-tackling confidence when you need it. A short travel trail bike by definition but a kilometer-crushing, chunder-devouring, fun machine by any other description.
Druid is the modern wolf in sheep’s clothing. Its high pivot Trifecta suspension platform defies logic. Simultaneously generating predictable traction and playful pop while offering an otherworldly ability to devour chunky terrain. With geometry that effortlessly balances stability and agility, the Druid is a trail bike through and through. This bike is equally at home hammering out trail rides after work, ripping weekend shuttle laps, and crushing epic alpine traverses. This humble (on paper) trail bike boasts on-trail characteristics that don’t just punch above their class they defy classification altogether. A bike that delivers pedal-all-day efficiency when you want it and tech-descent-tackling confidence when you need it. A short travel trail bike by definition but a kilometer-crushing, chunder-devouring, fun machine by any other description.
-
Intended Use
Trail / All Mountain
-
Suspension
130mm Rear / 150mm Front
-
Wheel Size
Full 29er or Mixed (MX)
Do you want to understand thescience behind the witchcraft?
Do you want to understand the science behind the witchcraft?
Druid Specs
Druid Specs

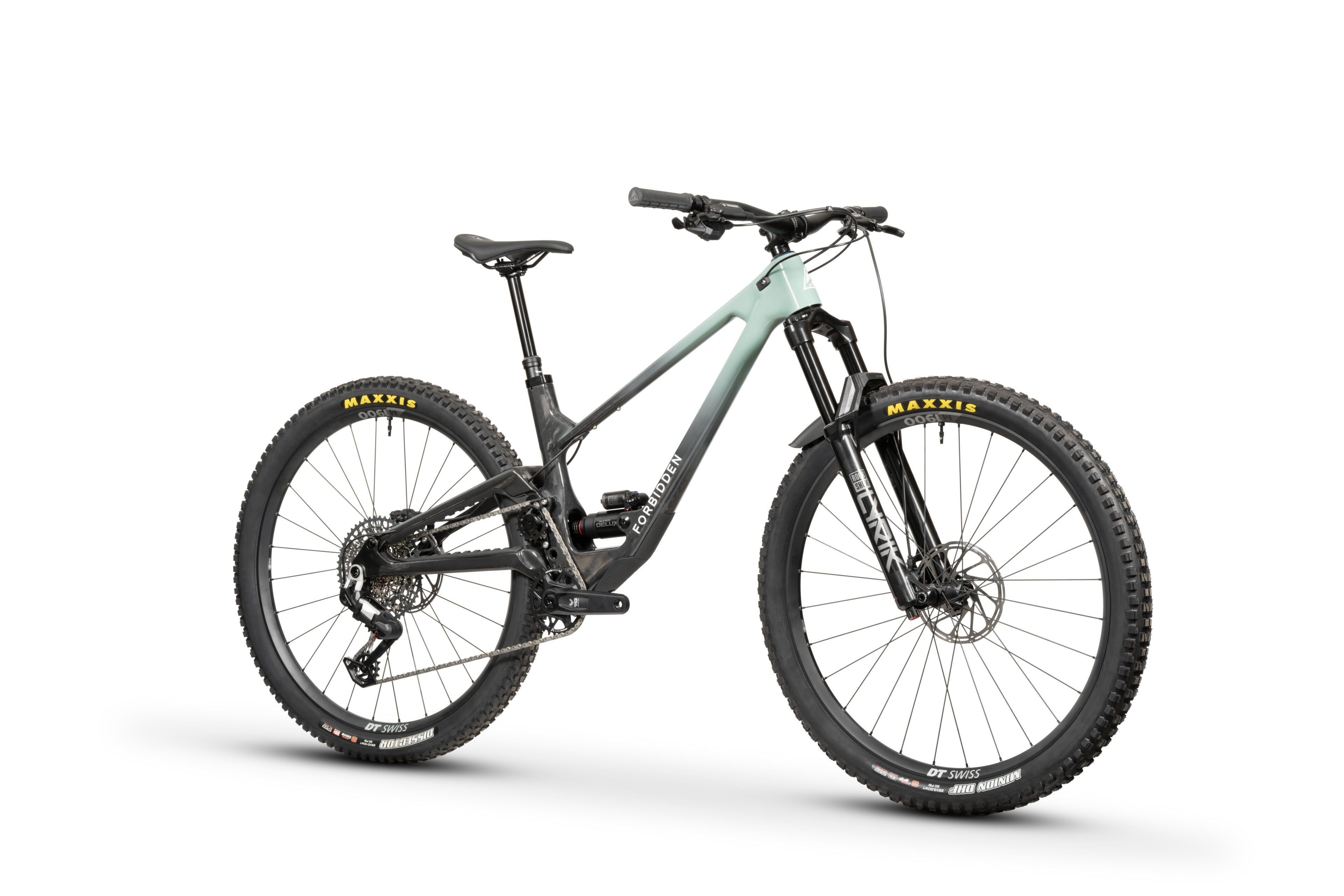

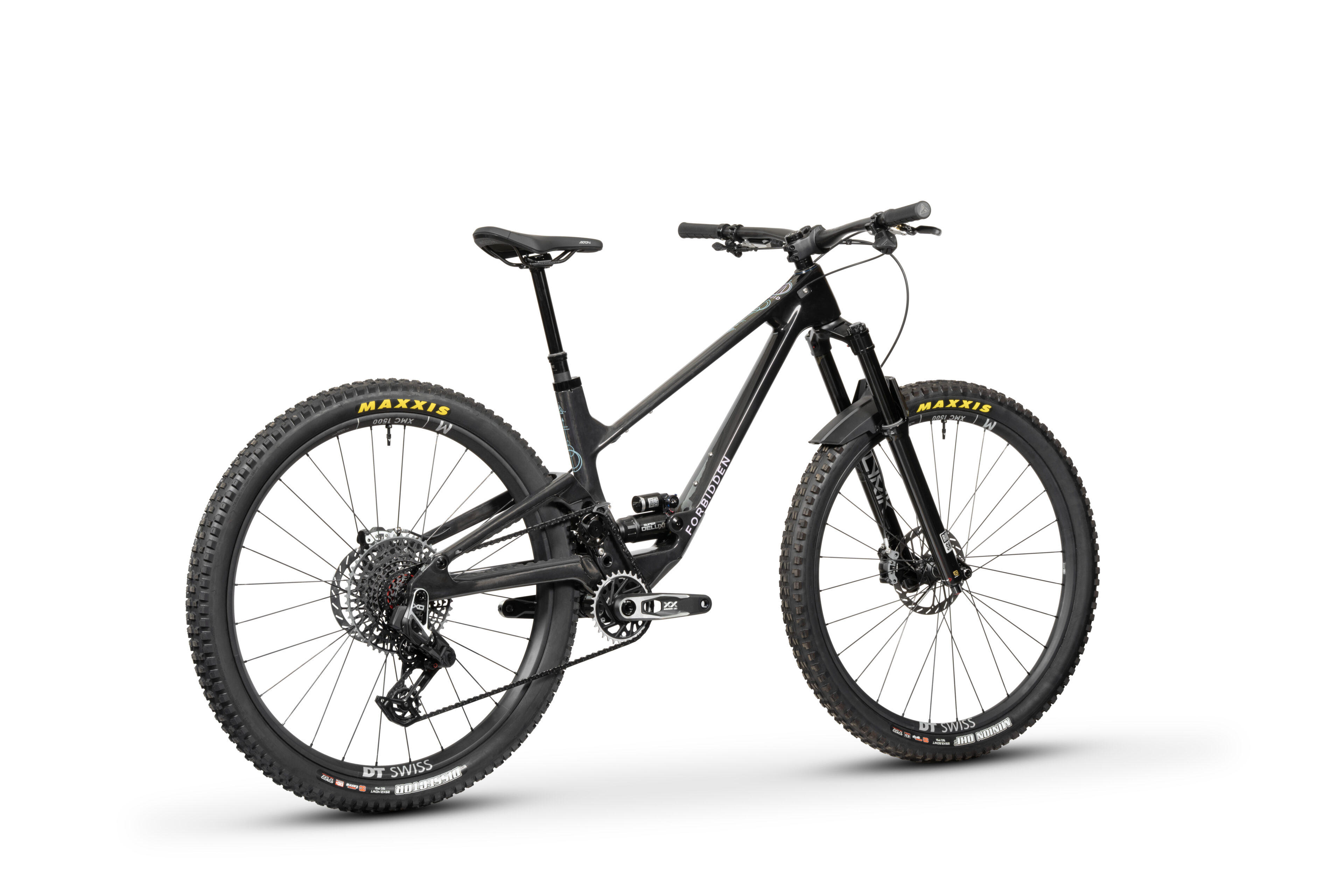

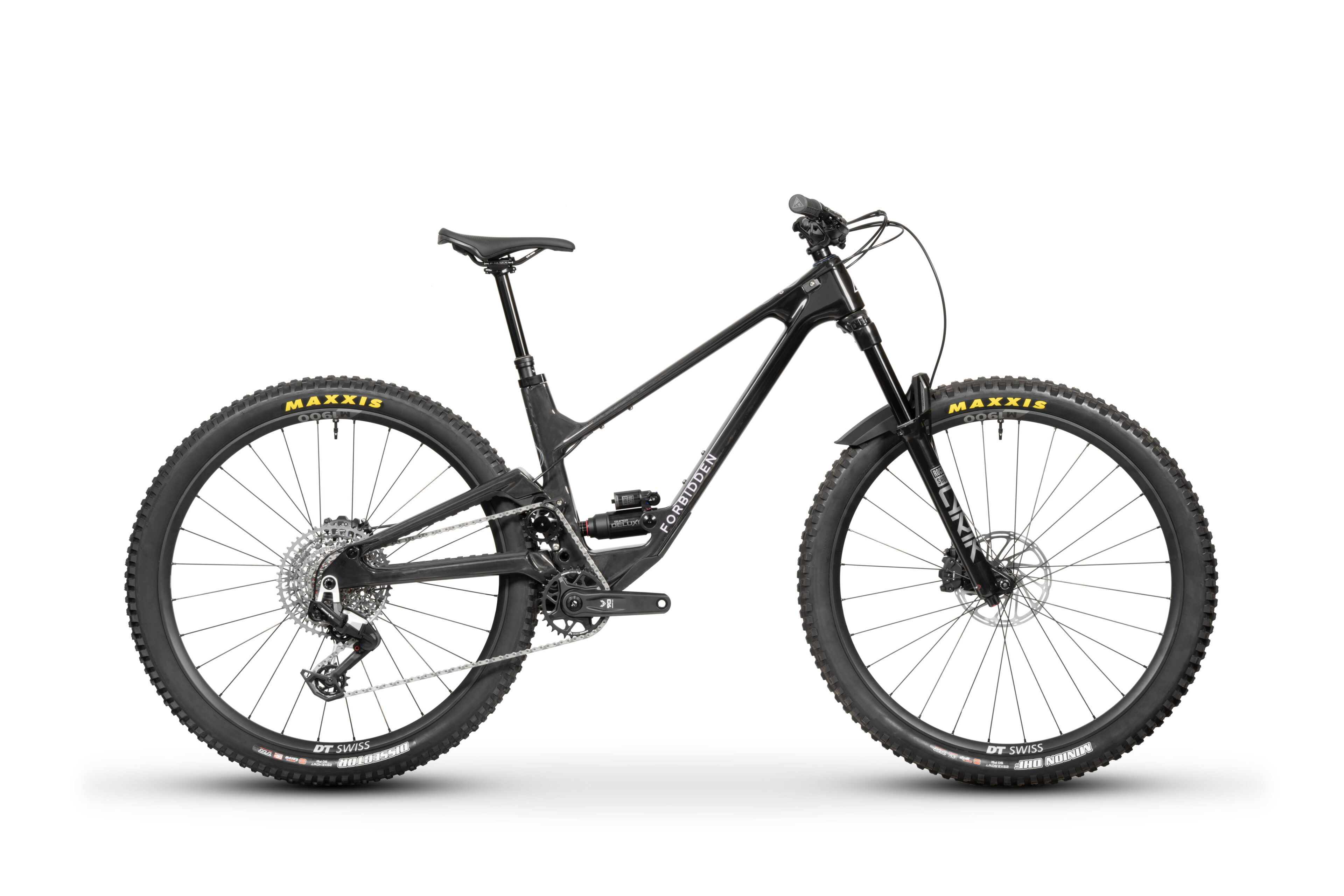

Druid X0 RS U$11,499 CAD |
GX AXS RS S Plus$6,299 CAD |
GX AXS RS S$7,899 CAD |

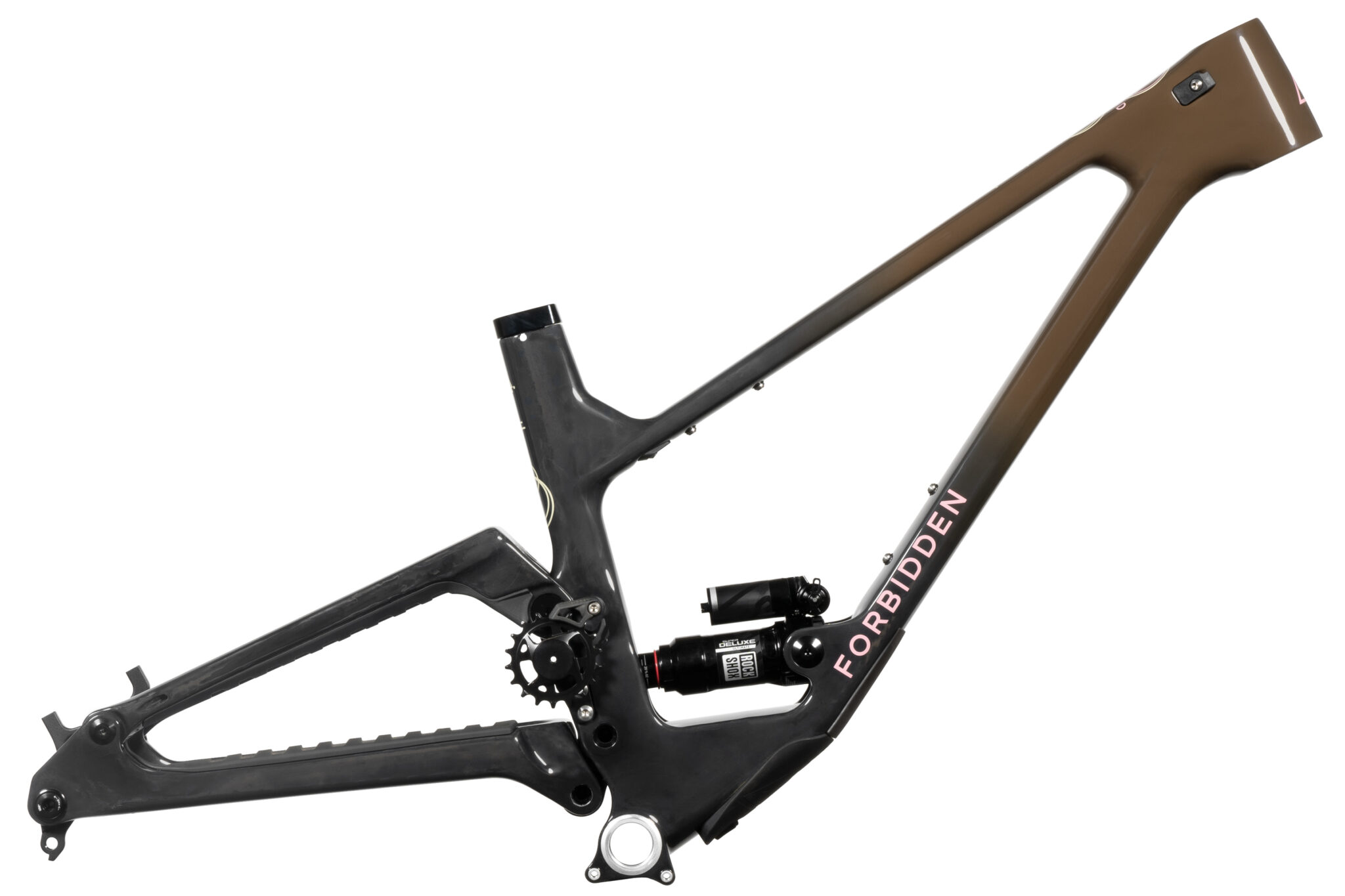

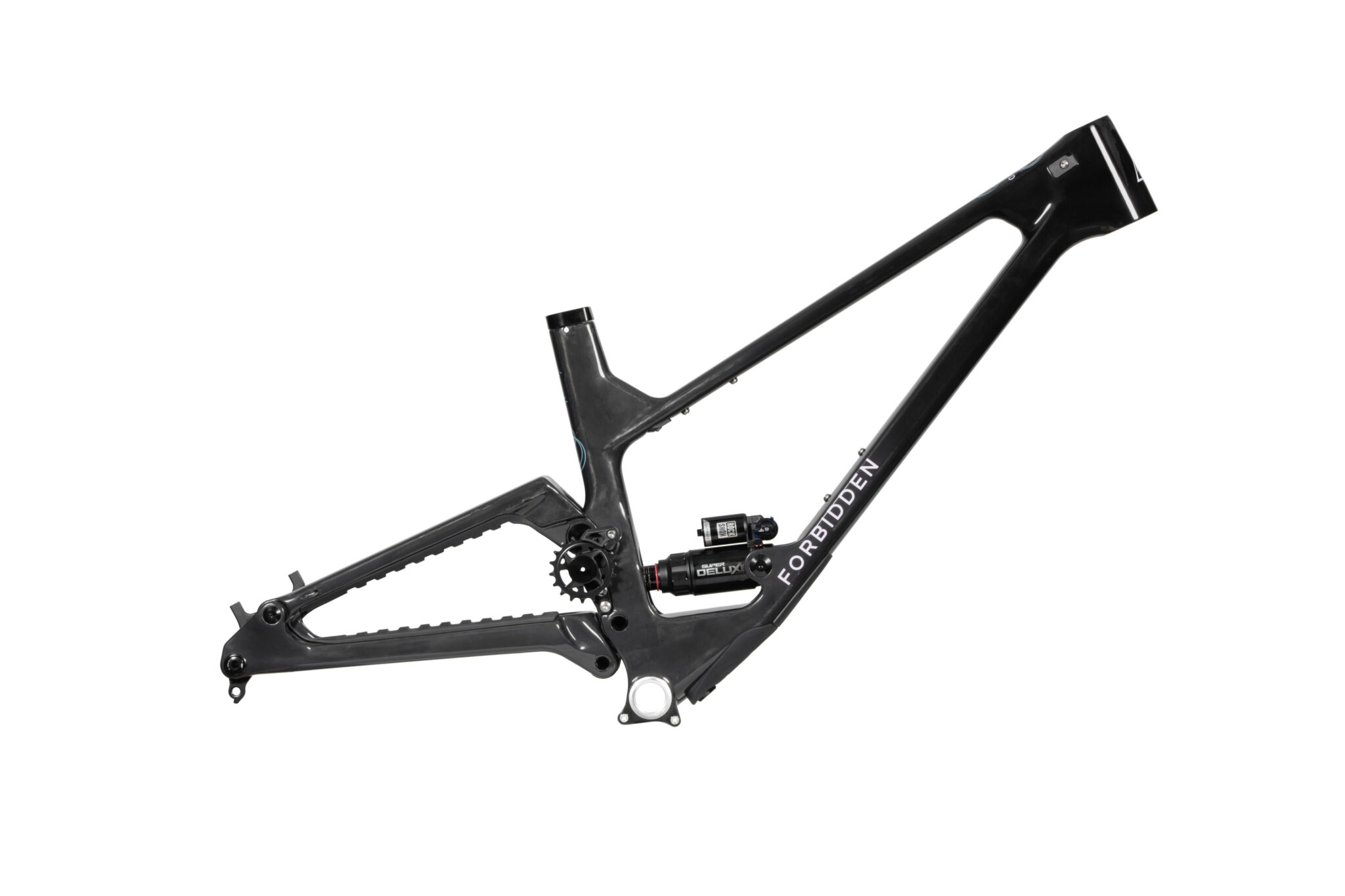

Framekit$3,429 CAD |
|
---|---|---|---|---|

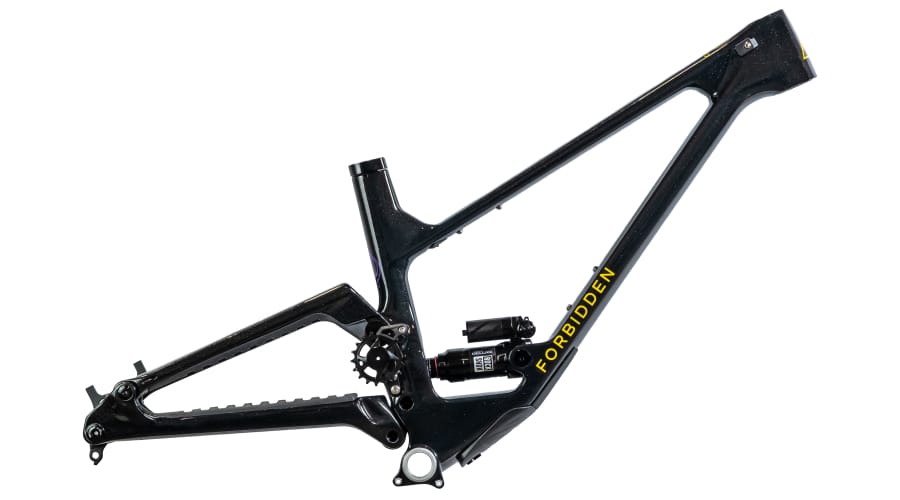

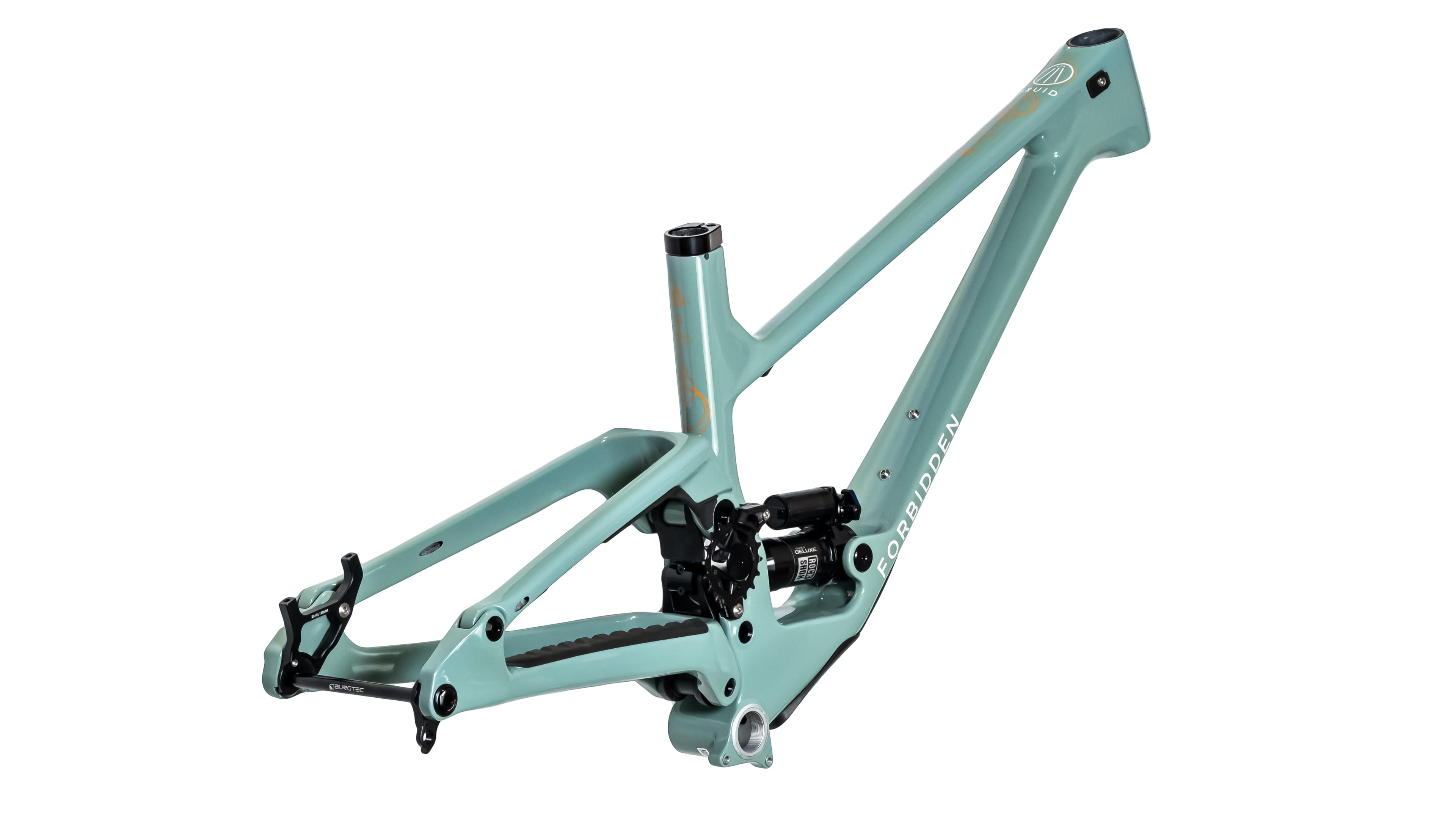

FRAME |

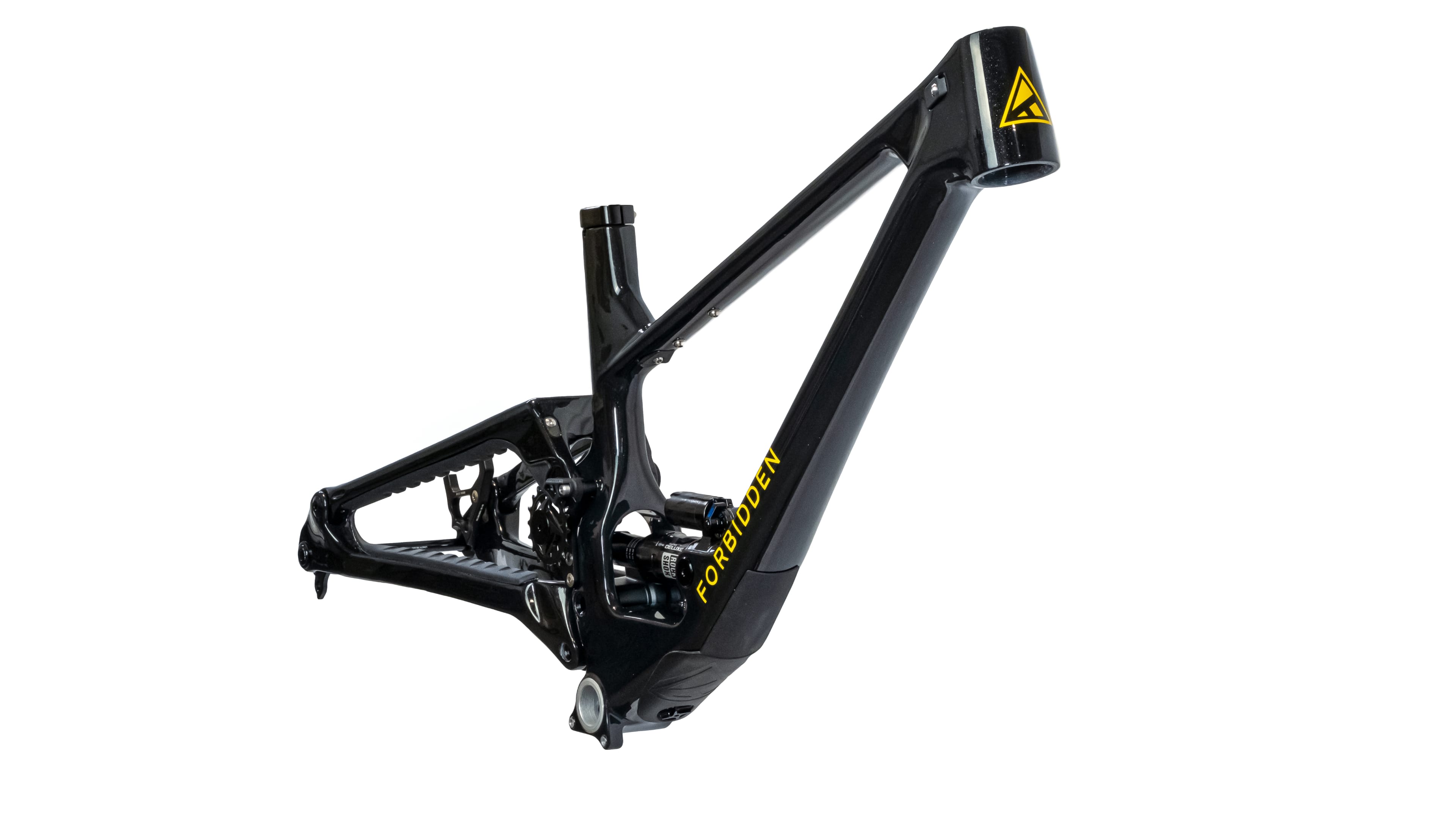

FRAME Druid V2 Full Carbon - 130mm Travel High-Modulus Carbon Fiber | Trifecta V2 High Pivot 4-Bar Suspension | One Ride Geometry | Enduro Max Bearings | 73mm Threaded BSA Bottom Bracket |
FRAME Druid V2 Full Carbon - 130mm Travel High-Modulus Carbon Fiber | Trifecta V2 High Pivot 4-Bar Suspension | One Ride Geometry | Enduro Max Bearings | 73mm Threaded BSA Bottom Bracket |
FRAME Druid V2 Full Carbon - 130mm Travel High-Modulus Carbon Fiber | Trifecta V2 High Pivot 4-Bar Suspension | One Ride Geometry | Enduro Max Bearings | 73mm Threaded BSA Bottom Bracket |
FRAME Druid V2 Full Carbon - 130mm Travel High-Modulus Carbon Fiber | Trifecta V2 High Pivot 4-Bar Suspension | One Ride Geometry | Enduro Max Bearings | 73mm Threaded BSA Bottom Bracket |

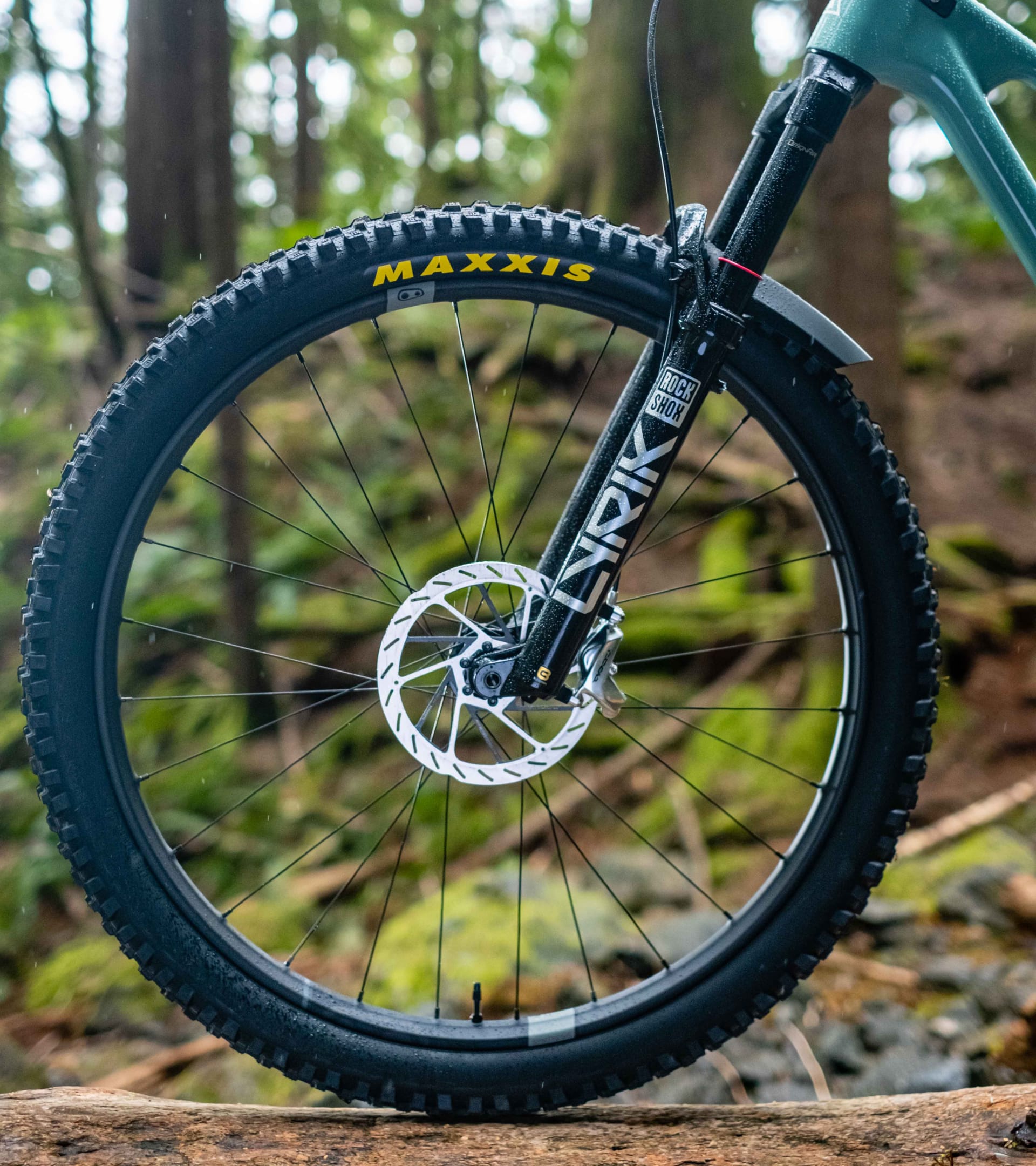

FORK |
FORK RockShox Lyrik Ultimate 150mm Travel | Charger 3 RC2 W/ButterCup | Debonair + | Rebound, HSC/LSC Adjust | Pressure Relief Valves | 44mm Offset | Maxle Stealth Thru-Axle | Gloss Black |
FORK RockShox Lyrik Select+ 150mm Travel | Charger RC2 | Debonair + | Rebound, HSC/LSC Adjust | 44mm Offset | Maxle Stealth Thru-Axle | Gloss Black |
FORK RockShox Lyrik Select 150mm Travel | Charger RC | Debonair + | LSR/LSC Adjust | 44mm Offset | Maxle Stealth Thru-Axle | Gloss Black |
FORK |

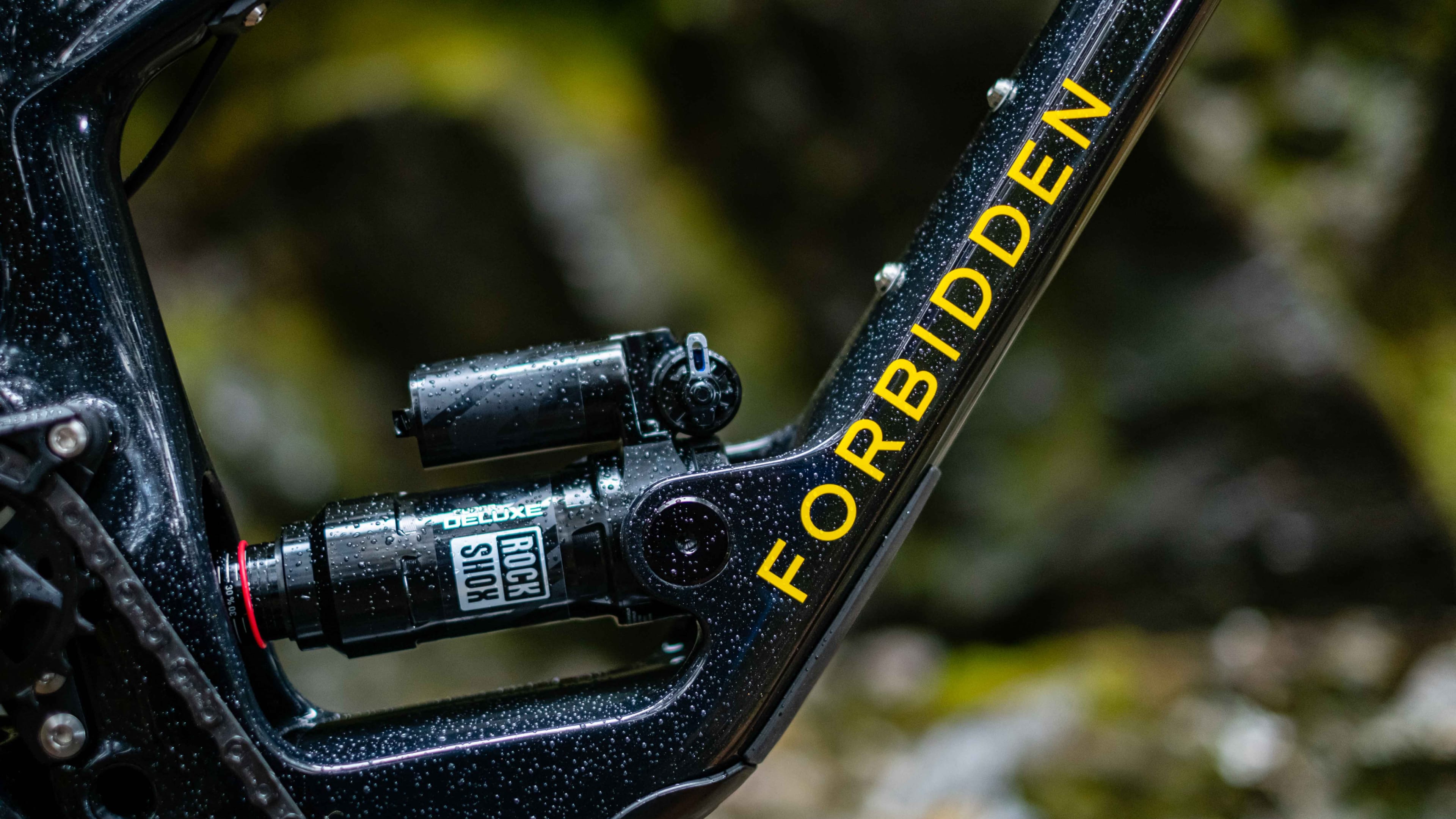

REAR SHOCK |
REAR SHOCK RockShox Super Deluxe Ultimate DebonAir+ | RC2T Damper | Rebound, HSC LSC Adjust | Threshold Lever | Trunnion/Bearing Mount | DLC 0P0 w/ Hydraulic Bottom Out | 185x50mm |
REAR SHOCK RockShox Super Deluxe Select+ DebonAir+ | Rebound Adjust | Threshold Lever | Trunnion/Bearing Mount | DLC 0P0 Tune w/ Hydraulic Bottom Out | 185x50mm |
REAR SHOCK RockShox Super Deluxe R DebonAir+ | Rebound Adjust | Trunnion/Bearing Mount | DLC 0P0 Tune w/ Hydraulic Bottom Out | 185x50mm |
REAR SHOCK Rock Shox Super Deluxe Ultimate 2 Position Adjuster | DebonAir+ | RC2T Damper | Trunnion/Bearing Mount | DLC 0P0 w/ Hydraulic Bottom Out | Tune 185x50mm |
HEADSET |
HEADSET Cane Creek Hellbender 70 SHIS: ZS44/28.6|ZS56/40 | Sealed Cartridge Bearings | 6000 Series Alloy Cups And Materials | Sealed Steel Crown Race |
HEADSET Cane Creek 40 SHIS: ZS44/28.6|ZS56/40 | Sealed Cartridge Bearings | 6000 Series Alloy Cups And Materials | Sealed Steel Crown Race |
HEADSET Cane Creek 40 SHIS: ZS44/28.6|ZS56/40 | Sealed Cartridge Bearings | 6000 Series Alloy Cups And Materials | Sealed Steel Crown Race |
HEADSET |
GRIPS |
GRIPS Burgtec Bartender Pro 135mm length | Single Sided Lock-On | Black |
GRIPS Burgtec Bartender Pro 135mm length | Single Sided Lock-On | Black |
GRIPS Burgtec Bartender Pro 135mm length | Single Sided Lock-On | Black |
GRIPS |

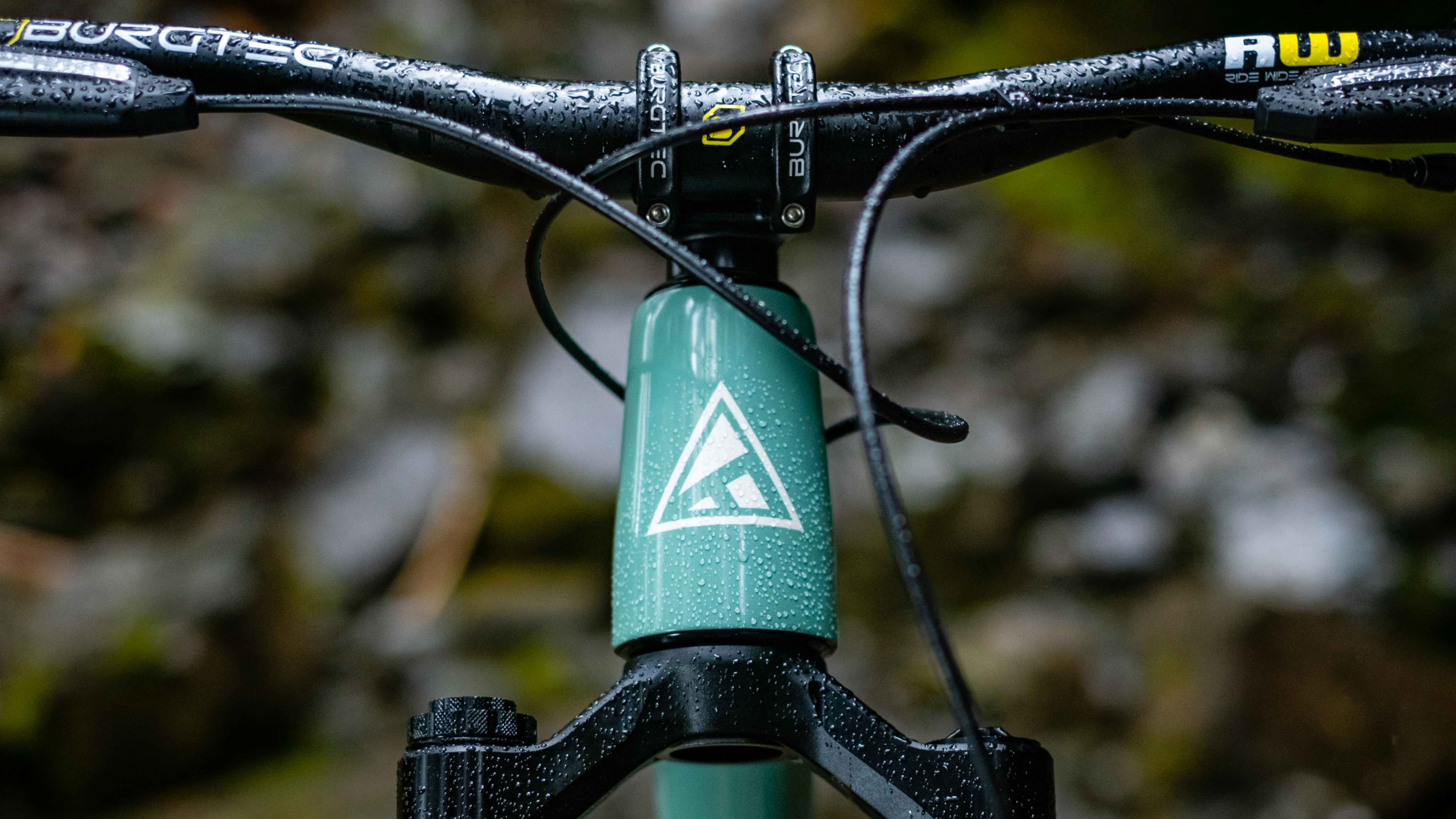

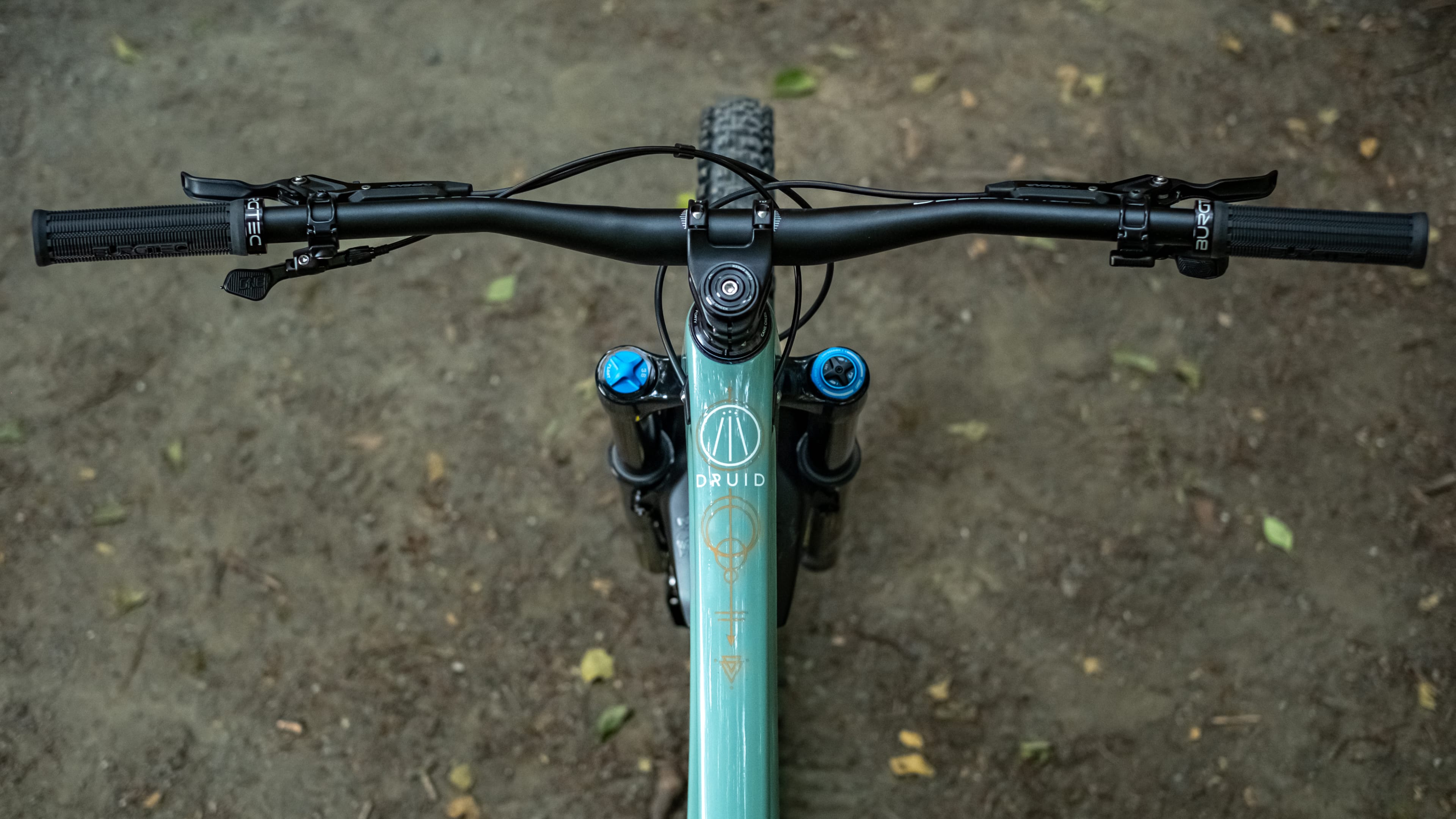

HANDLE BARS |
HANDLE BARS Burgtec Ride Wide Enduro Carbon 800mm Width | S1-S2:22.5 / S3-S4:30 Rise | 9° Backsweep 5° Upward | 35mm Bar Bore | Black |
HANDLE BARS Burgtec Ride Wide Enduro Alloy 800mm Width | S1-S2:22.5 / S3-S4:30 Rise | 9° Backsweep 5° Upward | 35mm Bar Bore | Black |
HANDLE BARS Forbidden 800mm Width | S1-S2:22.5 / S3-S4:30 Rise | 9° Backsweep 5° Upward | 35mm Bar Bore | Black |
HANDLE BARS |
STEM |
STEM Burgtec OE MK3 Enduro 42.5mm Length | 35mm Bar Clamp | Black |
STEM Forbidden 40mm Length | 35mm Bar Clamp | Black |
STEM Forbidden 40mm Length | 35mm Bar Clamp | Black |
STEM |

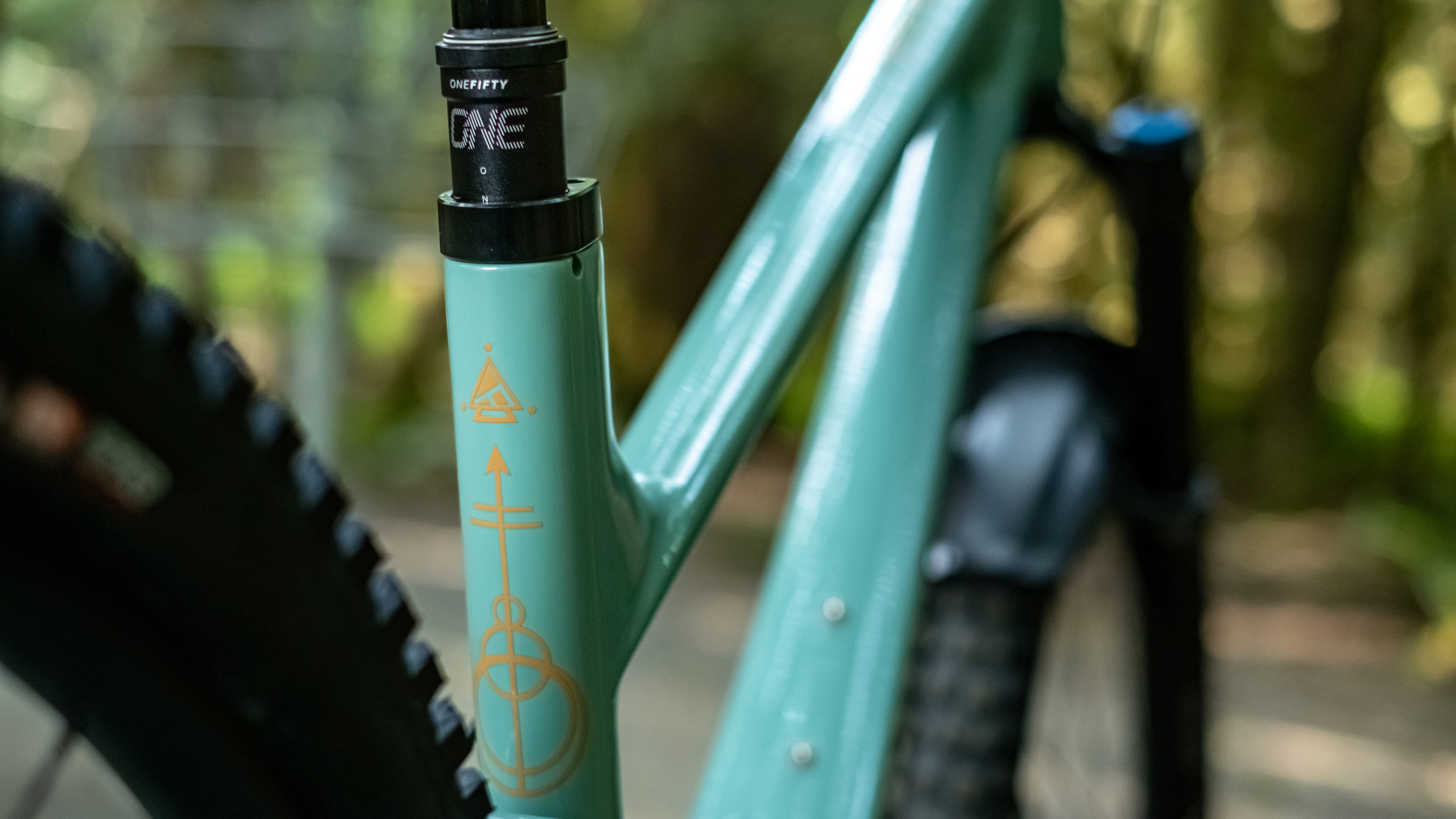

SEAT POST |
SEAT POST OneUp Dropper Post 31.6mm | Size Specific Travel S1:120mm / S2:150mm / S3:180mm / S4:210mm |
SEAT POST OneUp Dropper Post 31.6mm | Size Specific Travel S1:120mm / S2:150mm / S3:180mm / S4:210mm |
SEAT POST OneUp Dropper Post 31.6mm | Size Specific Travel S1:120mm / S2:150mm / S3:180mm / S4:210mm |
SEAT POST |
SEAT POST REMOTE |
SEAT POST REMOTE OneUp MMX UFT Lever Aluminum Remote | Oversized Bearing | MatchMaker X Integrated Dropper Remote |
SEAT POST REMOTE OneUp MMX UFT Lever Aluminum Remote | Oversized Bearing | MatchMaker X Integrated Dropper Remote |
SEAT POST REMOTE OneUp MMX UFT Lever Aluminum Remote | Oversized Bearing | MatchMaker X Integrated Dropper Remote |
SEAT POST REMOTE |
SEAT POST CLAMP |
SEAT POST CLAMP Forbidden 7075 CNC Aluminum | 34.9mm | Black Anodized |
SEAT POST CLAMP Forbidden 7075 CNC Aluminum | 34.9mm | Black Anodized |
SEAT POST CLAMP Forbidden 7075 CNC Aluminum | 34.9mm | Black Anodized |
SEAT POST CLAMP Forbidden 7075 CNC Aluminum | 34.9mm | Black Anodized |
SADDLE |
SADDLE Fizik Terra Alpaca X5 145mm Width | X5: Ride-Compliant Fiber Reinforced Nylon Shell And S-Alloy Rail | Black |
SADDLE Fizik Terra Alpaca X5 145mm Width | X5: Ride-Compliant Fiber Reinforced Nylon Shell And S-Alloy Rail | Black |
SADDLE Fizik Terra Alpaca X5 145mm Width | X5: Ride-Compliant Fiber Reinforced Nylon Shell And S-Alloy Rail | Black |
SADDLE |
FRONT BRAKE |

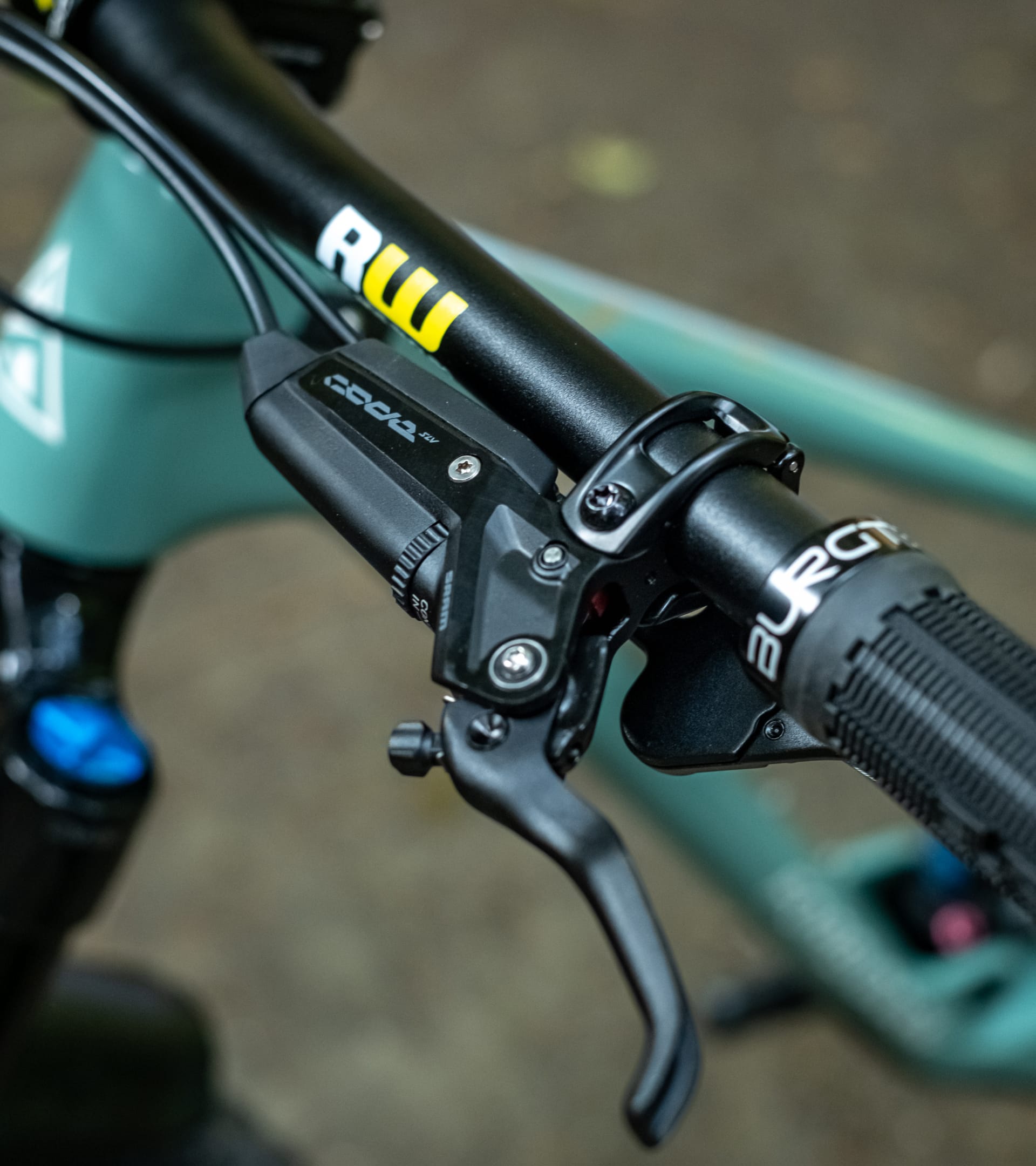

FRONT BRAKE SRAM Code Stealth Ultimate 4-Piston Stealth Body | Carbon Lever Blade | SwingLink | Reach & Contact Adjustment | Steel Backed Metal Sintered |
FRONT BRAKE SRAM Code Stealth Silver 4-Piston Stealth Body | SwingLink | Reach & Contact Adjustment | Steel Backed Metal Sintered |
FRONT BRAKE SRAM Code Bronze Stealth 4-Piston Stealth Body | SwingLink | Reach Adjustment | Steel Backed Metal Sintered |
FRONT BRAKE |
FRONT BRAKE ROTOR |
FRONT BRAKE ROTOR SRAM HS2 - 180mm 6-Bolt |
FRONT BRAKE ROTOR SRAM CenterLine - 180mm 6-Bolt |
FRONT BRAKE ROTOR SRAM Centerline - 180mm 6-Bolt |
FRONT BRAKE ROTOR |
REAR BRAKE |
REAR BRAKE SRAM Code Stealth Ultimate 4-Piston Stealth Body | Carbon Lever Blade | SwingLink | Reach & Contact Adjustment | Steel Backed Metal Sintered |
REAR BRAKE SRAM Code Stealth Silver 4-Piston Stealth Body | SwingLink | Reach & Contact Adjustment | Steel Backed Metal Sintered |
REAR BRAKE SRAM Code Bronze Stealth 4-Piston Stealth Body | SwingLink | Reach Adjustment | Steel Backed Metal Sintered |
REAR BRAKE |
REAR BRAKE ROTOR |
REAR BRAKE ROTOR SRAM HS2 - 180mm 6-Bolt |
REAR BRAKE ROTOR SRAM CenterLine - 180mm 6-Bolt |
REAR BRAKE ROTOR SRAM Centerline - 180mm 6-Bolt |
REAR BRAKE ROTOR |
REAR SHIFTER |
REAR SHIFTER SRAM Pod Ultimate With MMX Clamp | AXS controller | Two Button Design |
REAR SHIFTER SRAM POD With MMX Clamp | AXS Controller | Two Button Design |
REAR SHIFTER SRAM POD With MMX Clamp | AXS Controller | Two Button Design |
REAR SHIFTER |

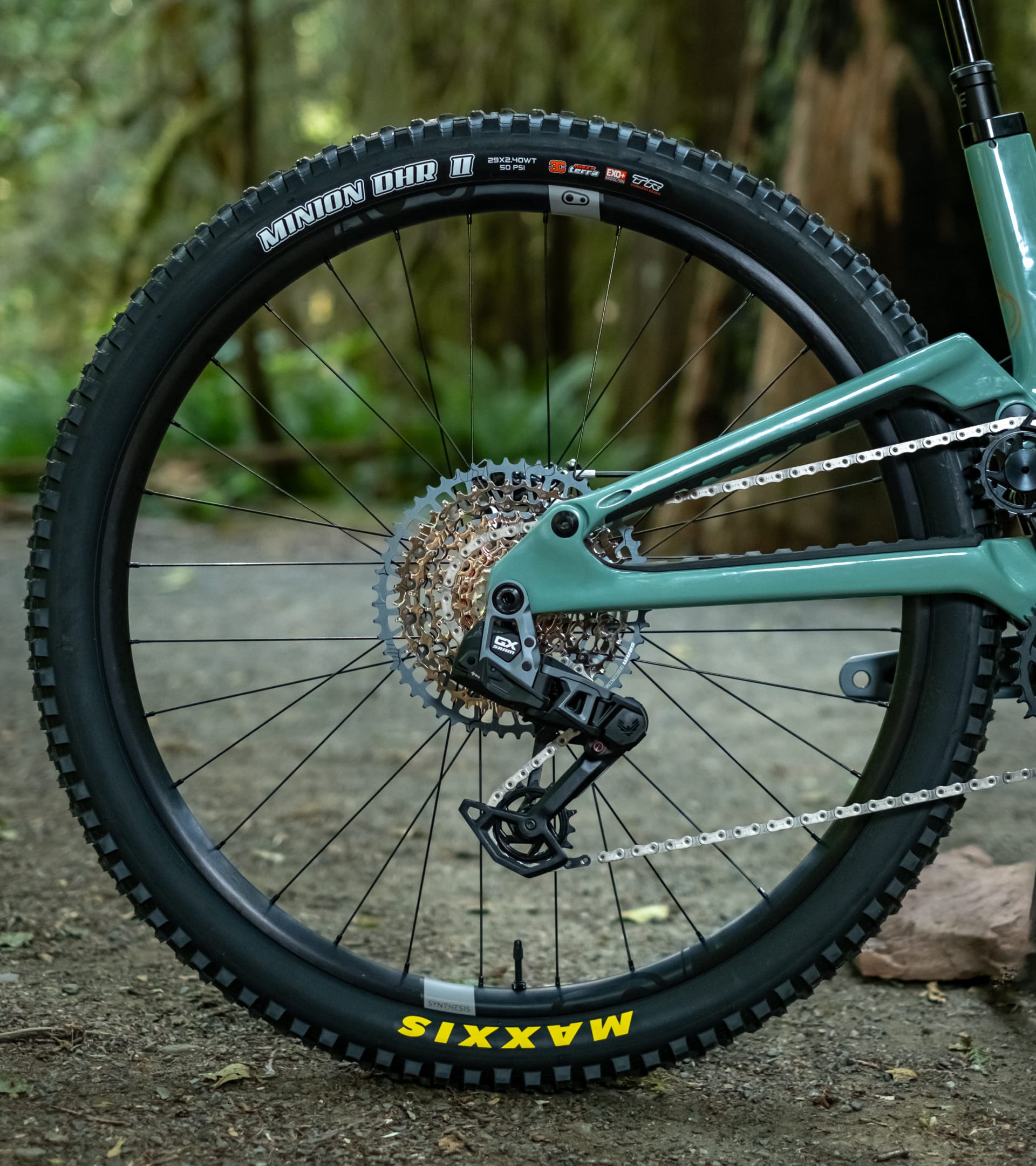

REAR DERAILLEUR |
REAR DERAILLEUR SRAM X0 AXS T-Type 12speed Hangerless Interface | Magic Wheel | Overload Clutch | Replaceable Skid Plates |
REAR DERAILLEUR SRAM GX AXS T-Type 12speed Hangerless Interface | Overload Clutch | Replaceable Skid Plates |
REAR DERAILLEUR SRAM GX AXS T-Type 12speed Hangerless Interface | Overload Clutch | Replaceable Skid Plates |
REAR DERAILLEUR |
CASSETTE |
CASSETTE SRAM X0 T-Type 10-52T 12speed 12speed | XD Fit | 10-12-14-16-18-21-24-28-32-38-44-52T |
CASSETTE SRAM GX T-Type 10-52T 12speed 12speed | XD Fit | 10-12-14-16-18-21-24-28-32-38-44-52T |
CASSETTE SRAM GX T-Type 10-52T 12speed 12speed | XD Fit | 10-12-14-16-18-21-24-28-32-38-44-52T |
CASSETTE |
CHAIN |
CHAIN SRAM X0 Transmission Flattop 12speed 12speed | Links = S1:120 / S2:122 / S3:124 / S4:126 |
CHAIN SRAM GX Transmission Flattop - 12speed 12speed | Links = S1:120 / S2:122 / S3:124 / S4:126 |
CHAIN SRAM GX Transmission Flattop - 12speed 12speed | Links = S1:120 / S2:122 / S3:124 / S4:126 |
CHAIN |

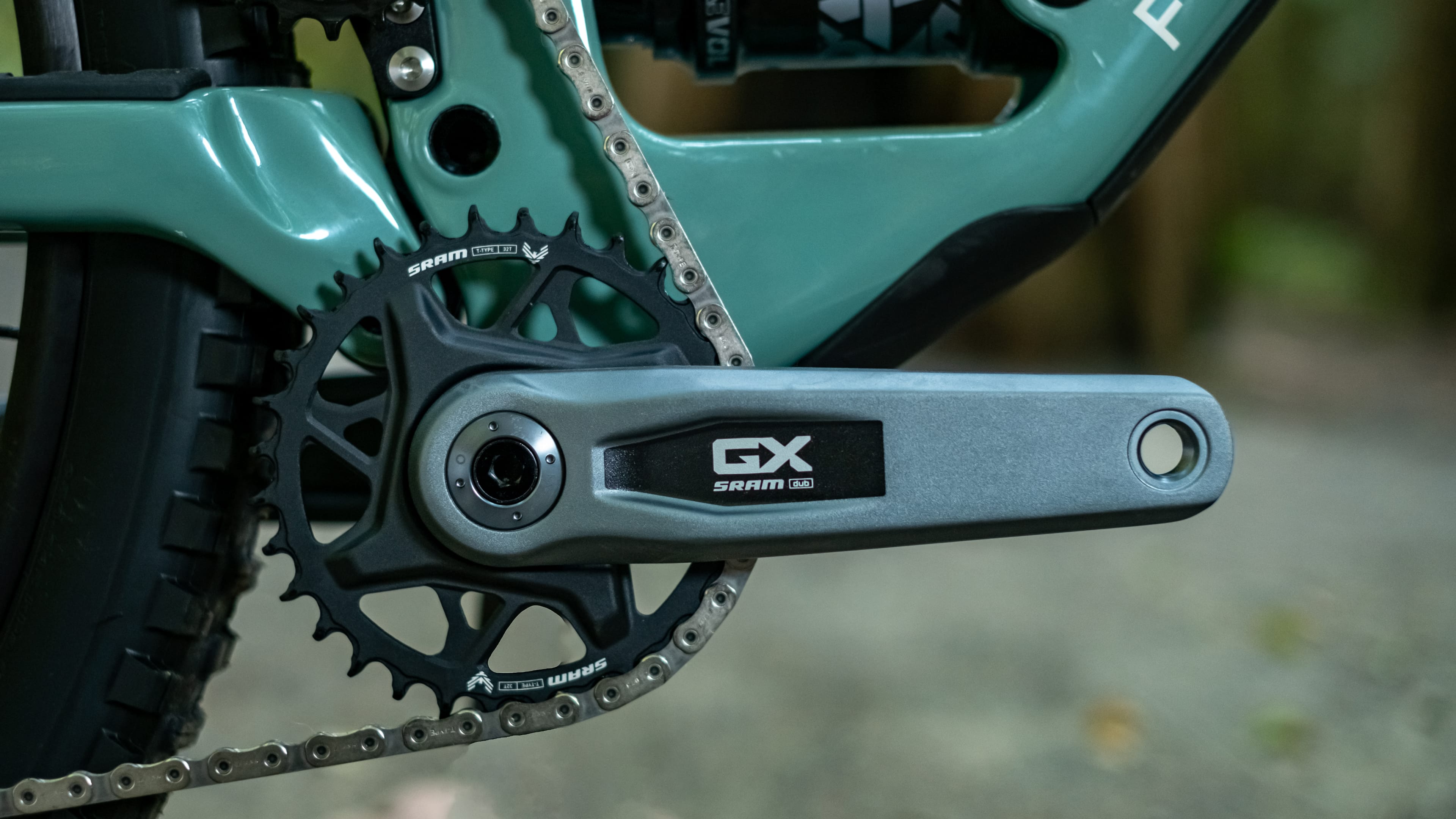

CRANKSET |
CRANKSET SRAM X0 Eagle 32T - 165mm 165mm All Sizes | 32T | 55mm Chainline | Black |
CRANKSET SRAM GX Eagle 32T - 165mm 165mm All Sizes | 32T | 55mm Chainline | Grey |
CRANKSET SRAM GX Eagle 32T - 165mm 165mm All Sizes | 32T | 55mm Chainline | Grey |
CRANKSET |
PEDALS |
PEDALS Not included |
PEDALS Not included |
PEDALS Not included |
PEDALS |
UPPER CHAIN GUIDE |
UPPER CHAIN GUIDE Forbidden Trail Guide |
UPPER CHAIN GUIDE Forbidden Trail Guide |
UPPER CHAIN GUIDE Forbidden Trail Guide |
UPPER CHAIN GUIDE Forbidden Lite Guide |
LOWER CHAIN GUIDE |
LOWER CHAIN GUIDE |
LOWER CHAIN GUIDE |
LOWER CHAIN GUIDE |
LOWER CHAIN GUIDE |
BOTTOM BRACKET |
BOTTOM BRACKET SRAM DUB Threaded BSA Wide 28.99mm Spindle | DUB | Threaded BSA |
BOTTOM BRACKET SRAM DUB Threaded BSA 28.99mm Spindle | DUB | Threaded BSA |
BOTTOM BRACKET SRAM DUB Threaded BSA 28.99mm Spindle | DUB | Threaded BSA |
BOTTOM BRACKET |
FRONT HUB |
FRONT HUB Crank Brothers 110x15mm | 28hole | 6-Bolt | Black Anodized |
FRONT HUB Crankbrothers Synthesis Enduro Std 110 x 15mm | 28-Hole | 6-Bolt | Black Anodized |
FRONT HUB Crankbrothers Synthesis Enduro Std 110 x 15mm | 28-Hole | 6-Bolt | Black Anodized |
FRONT HUB |
FRONT AXLE |
FRONT AXLE Maxle Stealth Included With Fork |
FRONT AXLE Maxle Stealth Included With Fork |
FRONT AXLE Maxle Stealth Included With Fork |
FRONT AXLE |
REAR HUB |
REAR HUB Crank Brothers Ratchet Internals | XD Driver | 148x12mm | 32hole | 6-Bolt | Black Anodized Decal |
REAR HUB Crankbrothers Synthesis Enduro Std XD Driver | 148 x 12mm | 32-Hole | 6-Bolt | Black Anodized Decal |
REAR HUB Crankbrothers Synthesis Enduro Std XD Driver | 148 x 12mm | 32-Hole | 6-Bolt | Black Anodized Decal |
REAR HUB |

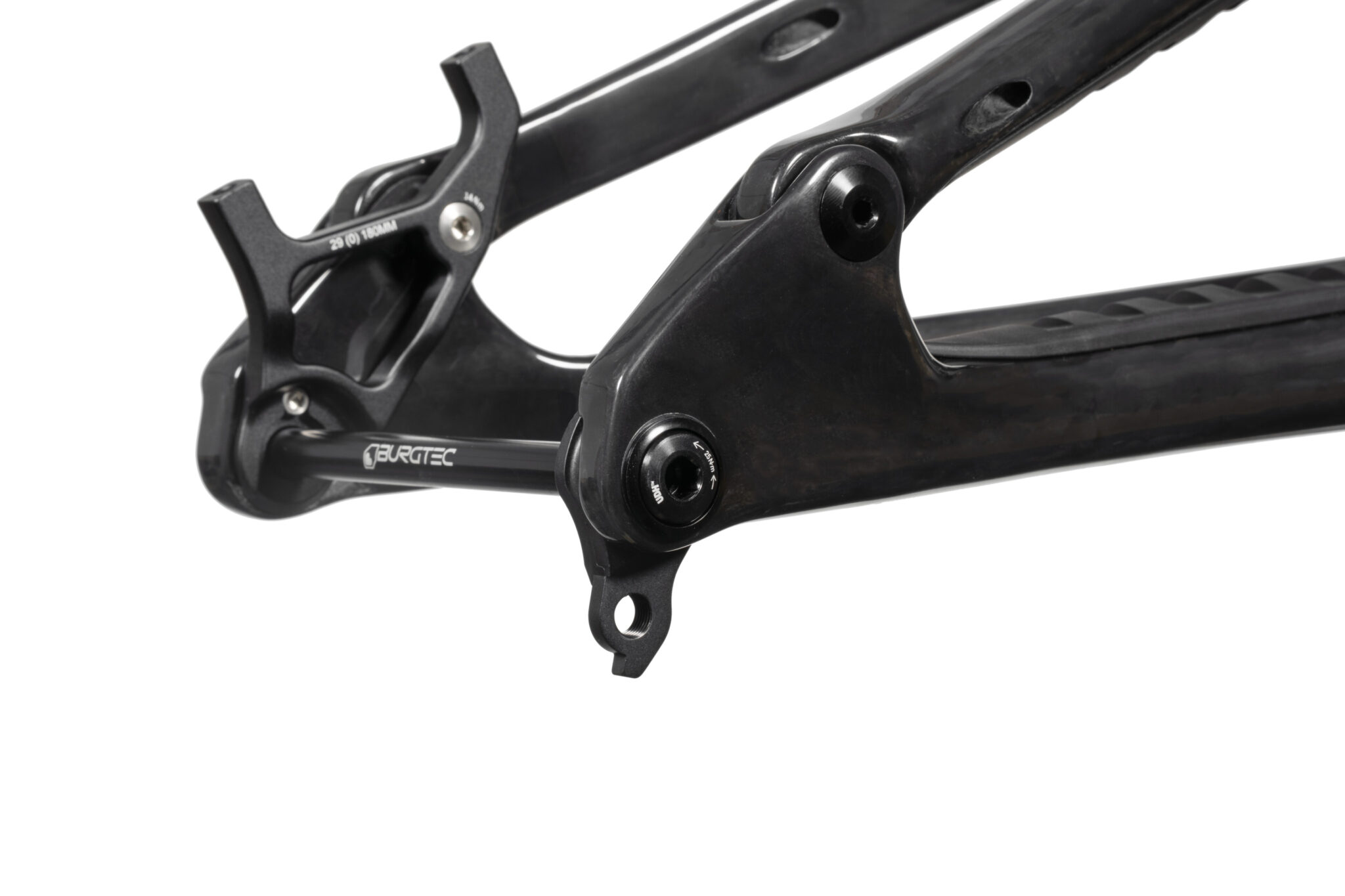

REAR AXLE |
REAR AXLE Burgtec 180 x 1.0mm Axle UDH |
REAR AXLE Burgtec 180 x 1.0mm Axle UDH |
REAR AXLE Burgtec 180 x 1.0mm Axle UDH |
REAR AXLE Burgtec 180 x 1.0mm Axle UDH |
SPOKES |
SPOKES Sapim CX Ray (fr) / CX Sprint (rr) Front: CX Ray 2.0/0.9/2.2/2.0mm / Rear: Race 2.0/1.25/2.25/2.0mm | Aero | Black ED Coated Stainless | Black Brass 14mm Nipples |
SPOKES Sapim Race Race 2.0/1.8/2.0mm | Double Butted | Black ED Coated Stainless | Black Brass 14mm Nipples |
SPOKES Sapim Race Race 2.0/1.8/2.0mm | Double Butted | Black ED Coated Stainless | Black Brass 14mm Nipples |
SPOKES |
RIMS |
RIMS Crankbrothers Synthesis 11 - Carbon Front 31.5mm / Rear 29.5mm Internal Width | Tubeless Ready | Black with Grey Graphics |
RIMS Crankbrothers Synthesis Enduro - Alloy Front 31.5mm / Rear 29.5mm Internal Width | Tubeless Ready | Black with Grey Graphics |
RIMS Crankbrothers Synthesis Enduro - Alloy Front 31.5mm / Rear 29.5mm Internal Width | Tubeless Ready | Black with Grey Graphics |
RIMS |
FRONT TIRE |

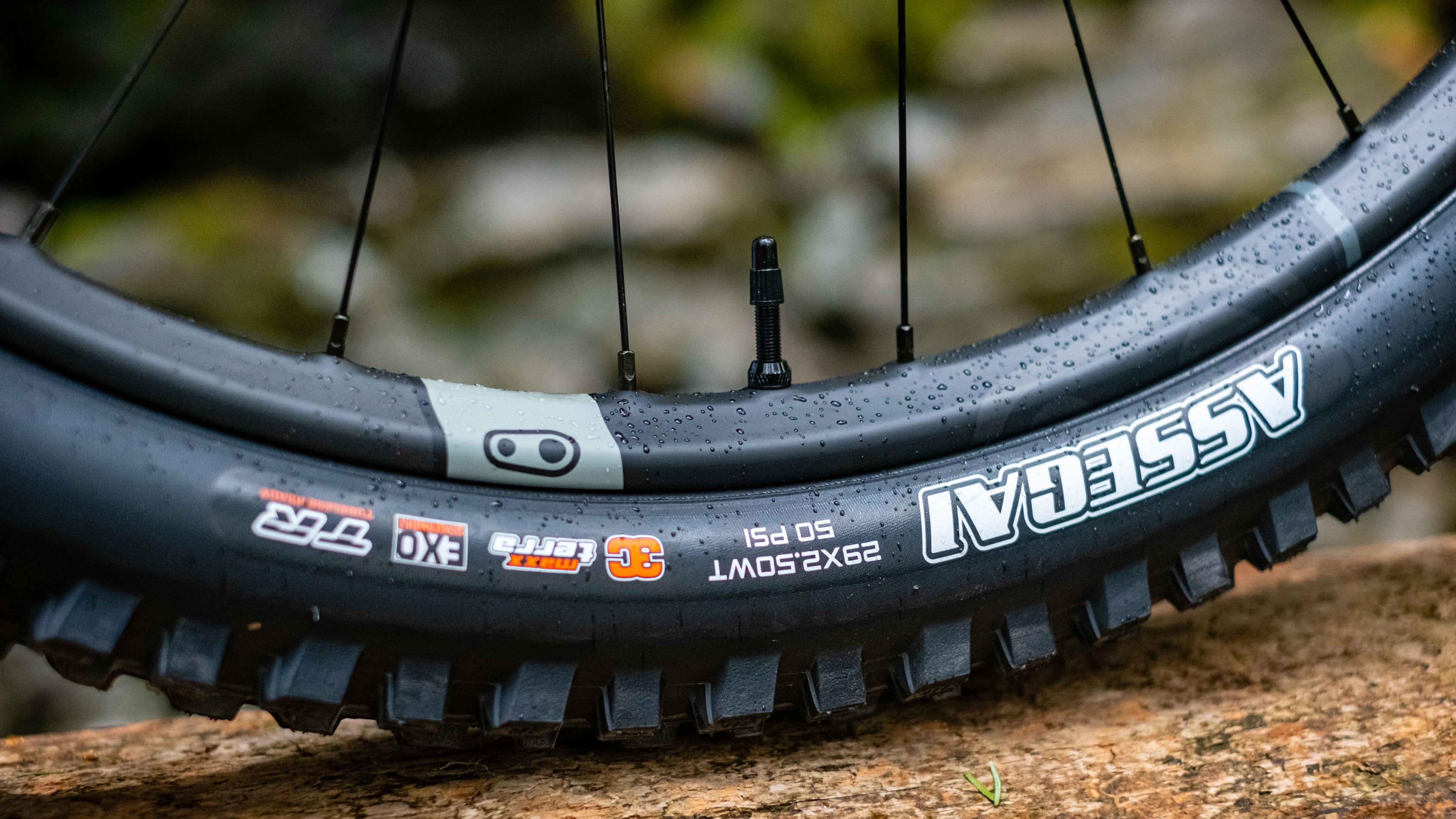

FRONT TIRE Maxxis Assegai - 3C MaxxTerra - EXO 29 x 2.5 | 3C MaxxTerra Rubber Compound | 60tpi | Folding | Tubeless Ready | EXO Casing |
FRONT TIRE Maxxis Assegai - 3C MaxxTerra - EXO 29 x 2.5 | 3C MaxxTerra Rubber Compound | 60tpi | Folding | Tubeless Ready | EXO Casing |
FRONT TIRE Maxxis Assegai - 3C MaxxTerra - EXO 29 x 2.5 | 3C MaxxTerra Rubber Compound | 60tpi | Folding | Tubeless Ready | EXO Casing |
FRONT TIRE |
REAR TIRE |
REAR TIRE Maxxis Forekaster - 3C MaxxTerra - EXO+ 29/27.5 x 2.4 | 3C MaxxTerra Rubber Compound | 120tpi | Folding | Tubeless Ready | EXO+ Casing |
REAR TIRE Maxxis Forekaster - 3C MaxxTerra - EXO+ 29/27.5 x 2.4 | 3C MaxxTerra Rubber Compound | 120tpi | Folding | Tubeless Ready | EXO+ Casing |
REAR TIRE Maxxis Forekaster - 3C MaxxTerra - EXO+ 29/27.5 x 2.4 | 3C MaxxTerra Rubber Compound | 120tpi | Folding | Tubeless Ready | EXO+ Casing |
REAR TIRE |
Included |
Included Stans Sealant - 200ml |
Included Stans Sealant - 200ml |
Included Stans Sealant - 200ml |
Included SRAM Universal Derailieur Hanger |
Included |
Included SRAM AXS EP Powerpack 1 Battery |
Included SRAM AXS EP Powerpack 1 Battery |
Included SRAM AXS EP Powerpack 1 Battery |
Included |
*Please note: we make every effort to ensure accuracy of the Spec Information, but they are subject to change.
*Please note: we make every effort to ensure accuracy of the Spec Information, but they are subject to change.
Size Guide
Size Guide
S1
S1
S2
S2
S3
S3
S4
S4
5'2
158cm
5'6
168cm
5'6
168cm
5'10
178cm
5'10
178cm
6'2
188cm
6'2
188cm
6'6
198cm
29" Geometry
29" Geometry
Fork Size 150mm | S1 | S2 | S3 | S4 | |
---|---|---|---|---|---|
A | Reach | 440 | 460 | 480 | 500 |
B | Stack | 610 | 624 | 637 | 651 |
C | Hori. Top Tube Length | 581 | 604 | 627 | 650 |
D | Seat Tube Length | 400 | 420 | 440 | 470 |
E | Seat Tube Angle (Effective) | 77 | 77 | 77 | 77 |
F | Seat Tube Angle (Actual) | 73.8 | 76.6 | 77.0 | 77.0 |
G | Head Tube Length | 90 | 105 | 120 | 135 |
H | Head Tube Angle | 65.0 | 65.0 | 65.0 | 65.0 |
I | Front Center | 754 | 781 | 807 | 833 |
J | Rear Center | 423 | 437 | 452 | 466 |
K | Wheel base | 1177 | 1218 | 1259 | 1300 |
L | BB Drop | -35 | -35 | -35 | -35 |
M | BB Height | 337 | 337 | 337 | 337 |
N | Stand Over | 720 | 725 | 728 | 730 |
O | Fork Length | 561 | 561 | 561 | 561 |
P | Fork Offset | 42 | 42 | 42 | 42 |
MX Geometry
MX Geometry
Fork Size 150mm | S1 | S2 | S3 | S4 | |
---|---|---|---|---|---|
A | Reach | 435 | 455 | 475 | 495 |
B | Stack | 614 | 627 | 641 | 654 |
C | Hori. Top Tube Length | 582 | 605 | 628 | 651 |
D | Seat Tube Length | 400 | 420 | 440 | 470 |
E | Seat Tube Angle (Effective) | 76.6 | 76.6 | 76.6 | 76.6 |
F | Seat Tube Angle (Actual) | 73.4 | 75.1 | 76.6 | 76.6 |
G | Head Tube Length | 90 | 105 | 120 | 135 |
H | Head Tube Angle | 64.5 | 64.5 | 64.5 | 64.5 |
I | Front Center | 754 | 781 | 807 | 833 |
J | Rear Center | 423 | 437 | 452 | 466 |
K | Wheel base | 1177 | 1218 | 1259 | 1300 |
L | BB Drop | -29 | -29 | -29 | -29 |
M | BB Height | 332 | 332 | 332 | 332 |
N | Stand Over | 720 | 725 | 728 | 730 |
O | Fork Length | 561 | 561 | 561 | 561 |
P | Fork Offset | 42 | 42 | 42 | 42 |
The industry’s only TRULYPROPORTIONAL geometry.
The industry’s only TRULY PROPORTIONAL geometry.
Things You Should Know
Things You Should Know
Things YouShould Know
Things You Should Know

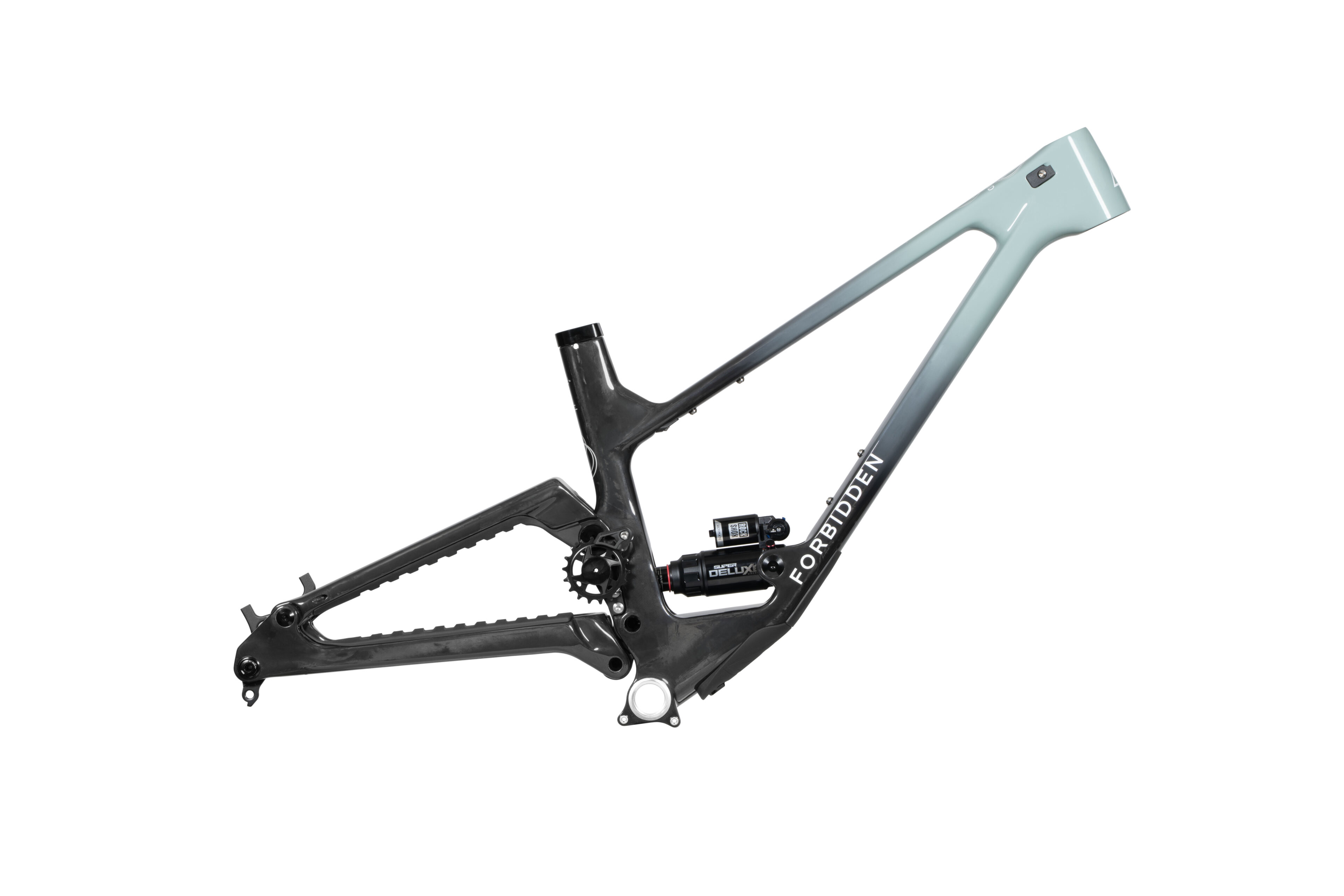

Trifecta V2 Platform
Trifecta V2 Platform
The second iteration of Druid see a shift to an inverted four-bar suspension design. This evolution was necessitated by our desire to retain the ride characteristics of the original Druid while achieving certain design goals. At the same time, we shed a little bit of weight from the main frame, whilst ensuring the bike still passes our rigorous testing regime.
The second iteration of Druid see a shift to an inverted four-bar suspension design. This evolution was necessitated by our desire to retain the ride characteristics of the original Druid while achieving certain design goals. At the same time, we shed a little bit of weight from the main frame, whilst ensuring the bike still passes our rigorous testing regime.

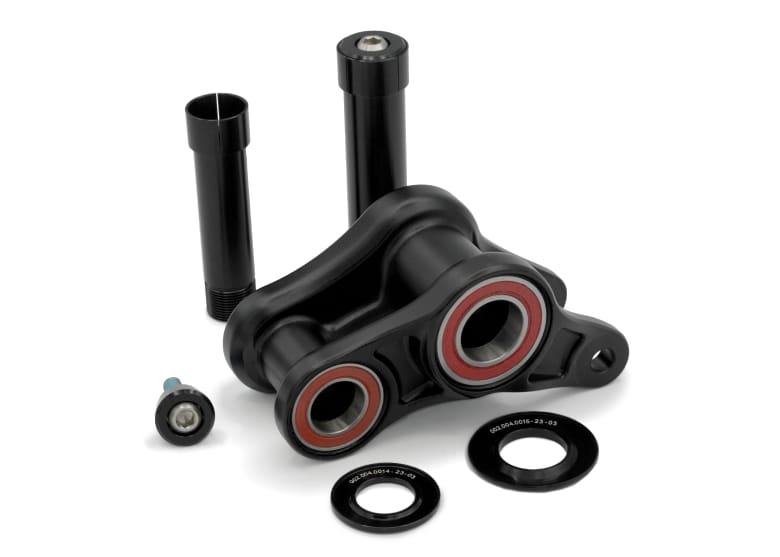

Hardware
Hardware

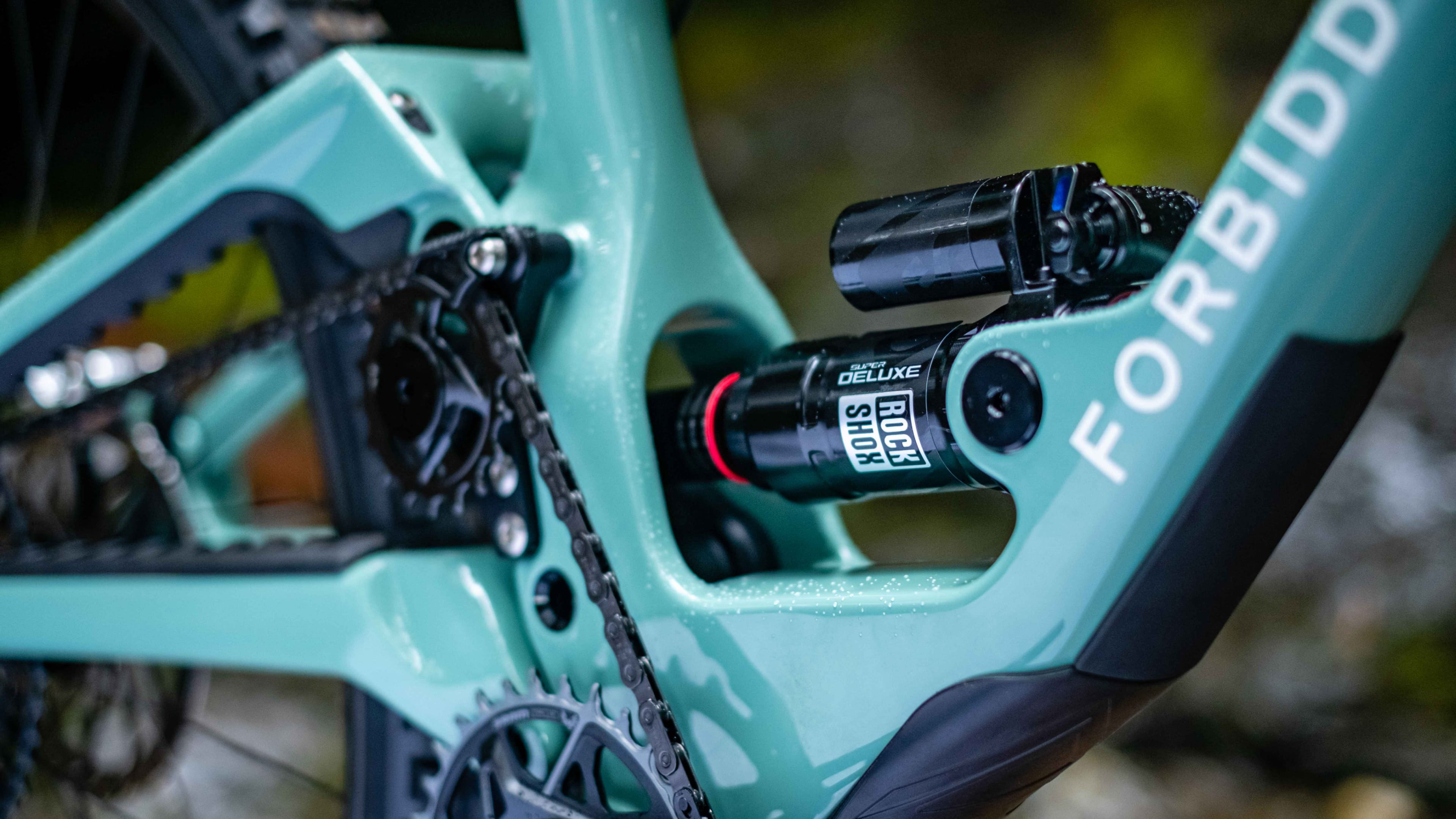

The bearing-in-rocker design of our new forged V2 Rate Control Linkage allows us to use locking collet axles and oversized bearings for easy maintenance and dependability. This option isn’t the lightest but trading a few grams for a long-lasting, easily serviced linkage, was the practical choice.
The bearing-in-rocker design of our new forged V2 Rate Control Linkage allows us to use locking collet axles and oversized bearings for easy maintenance and dependability. This option isn’t the lightest but trading a few grams for a long-lasting, easily serviced linkage, was the practical choice.

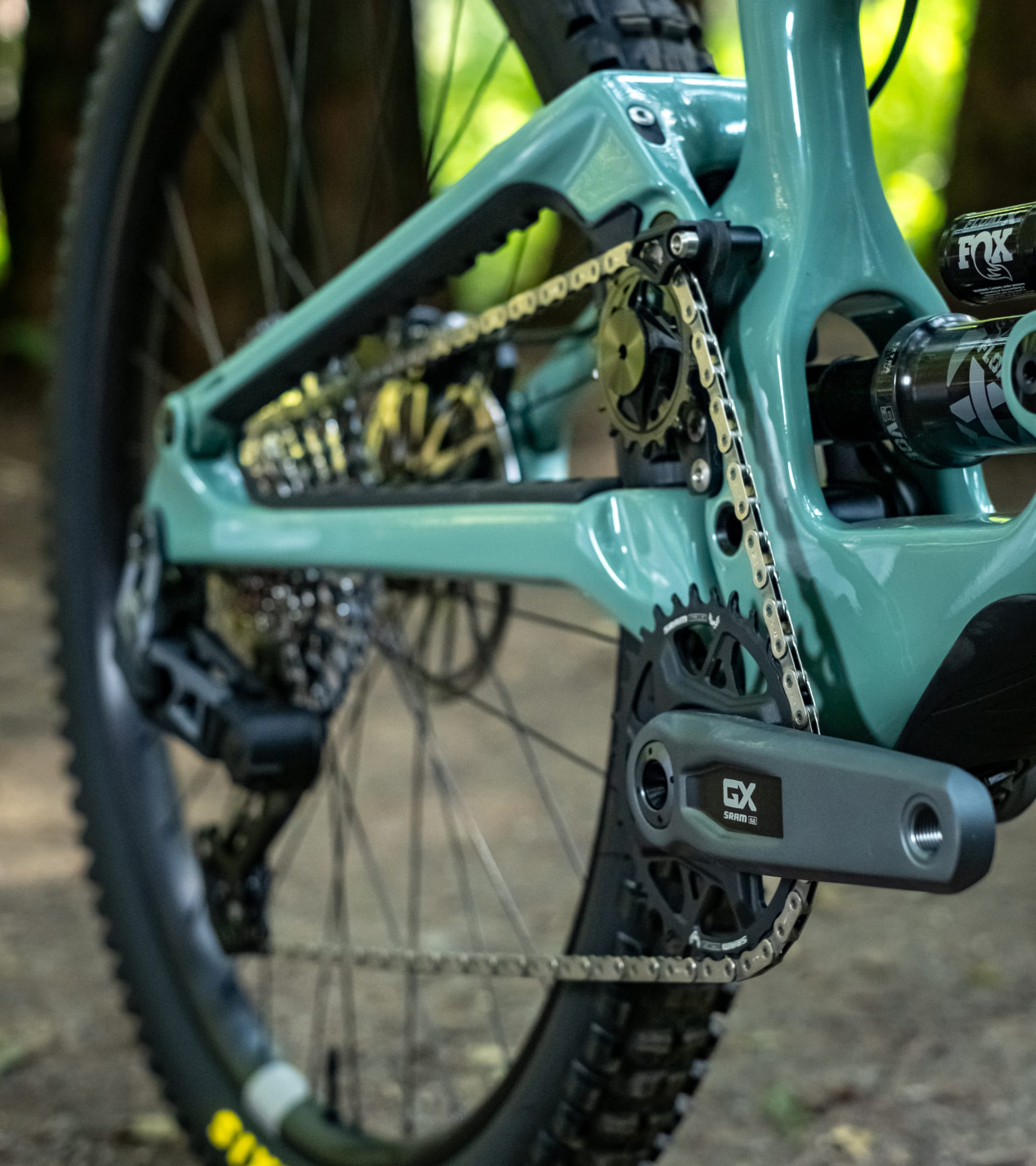

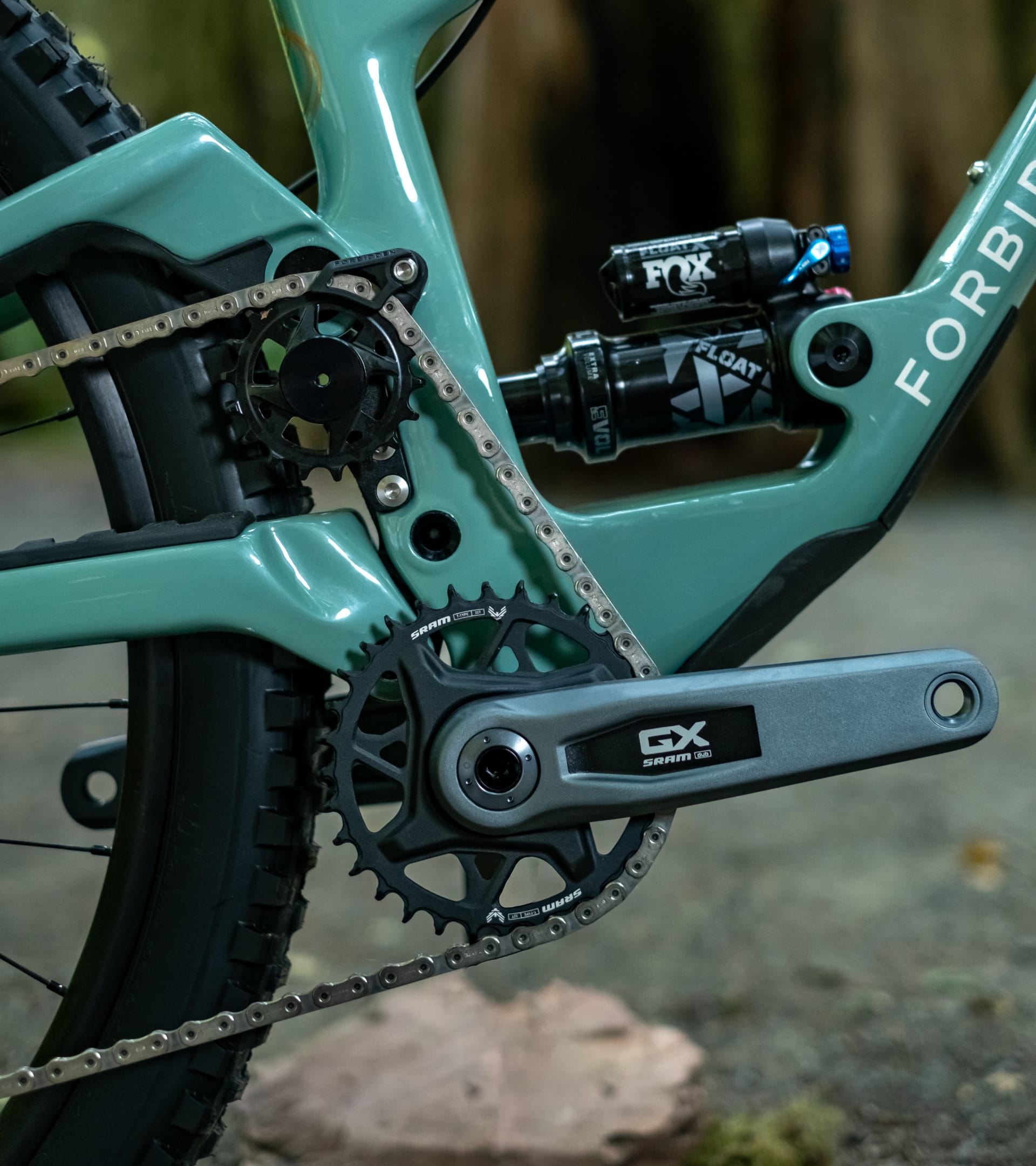

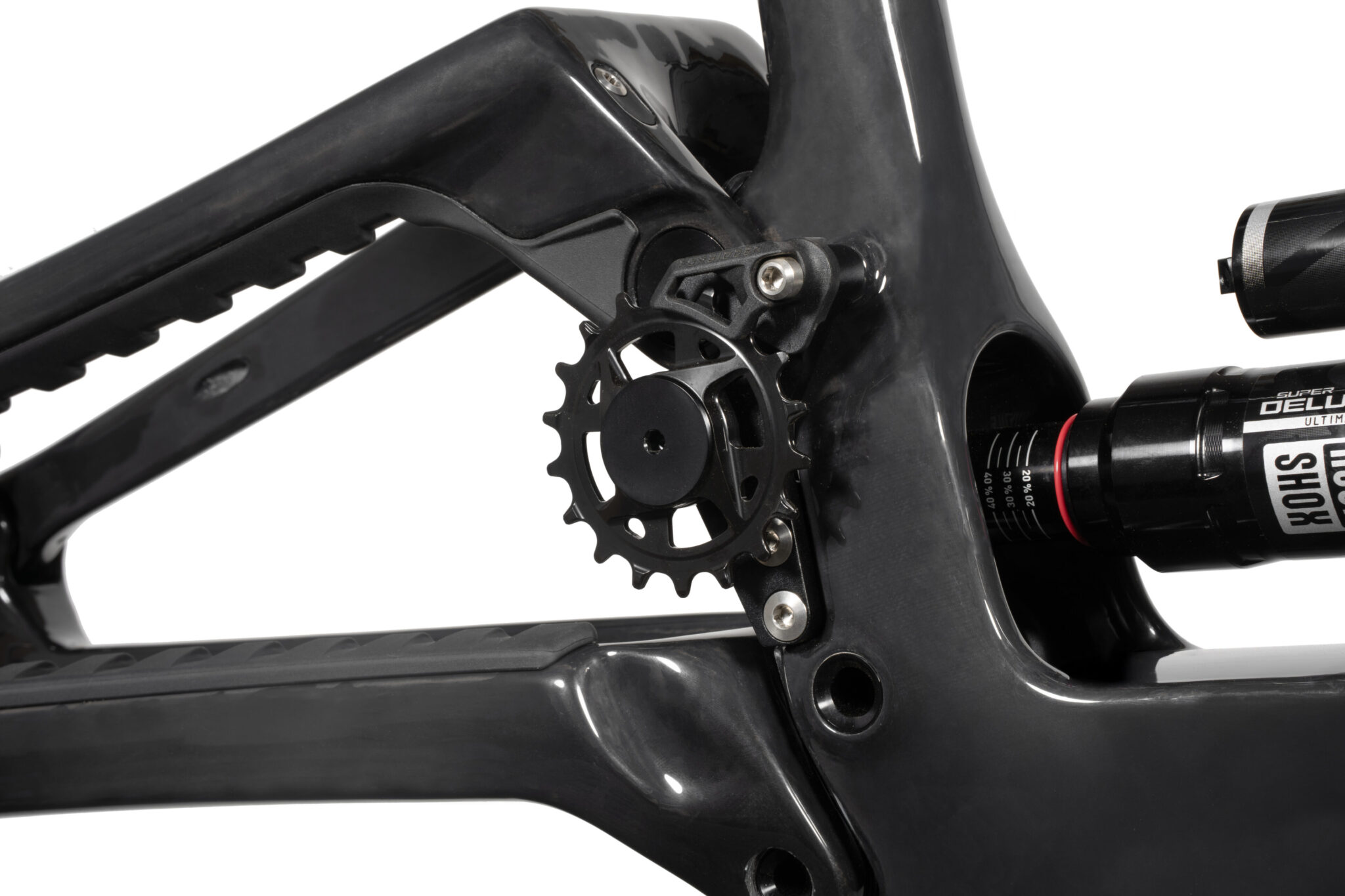

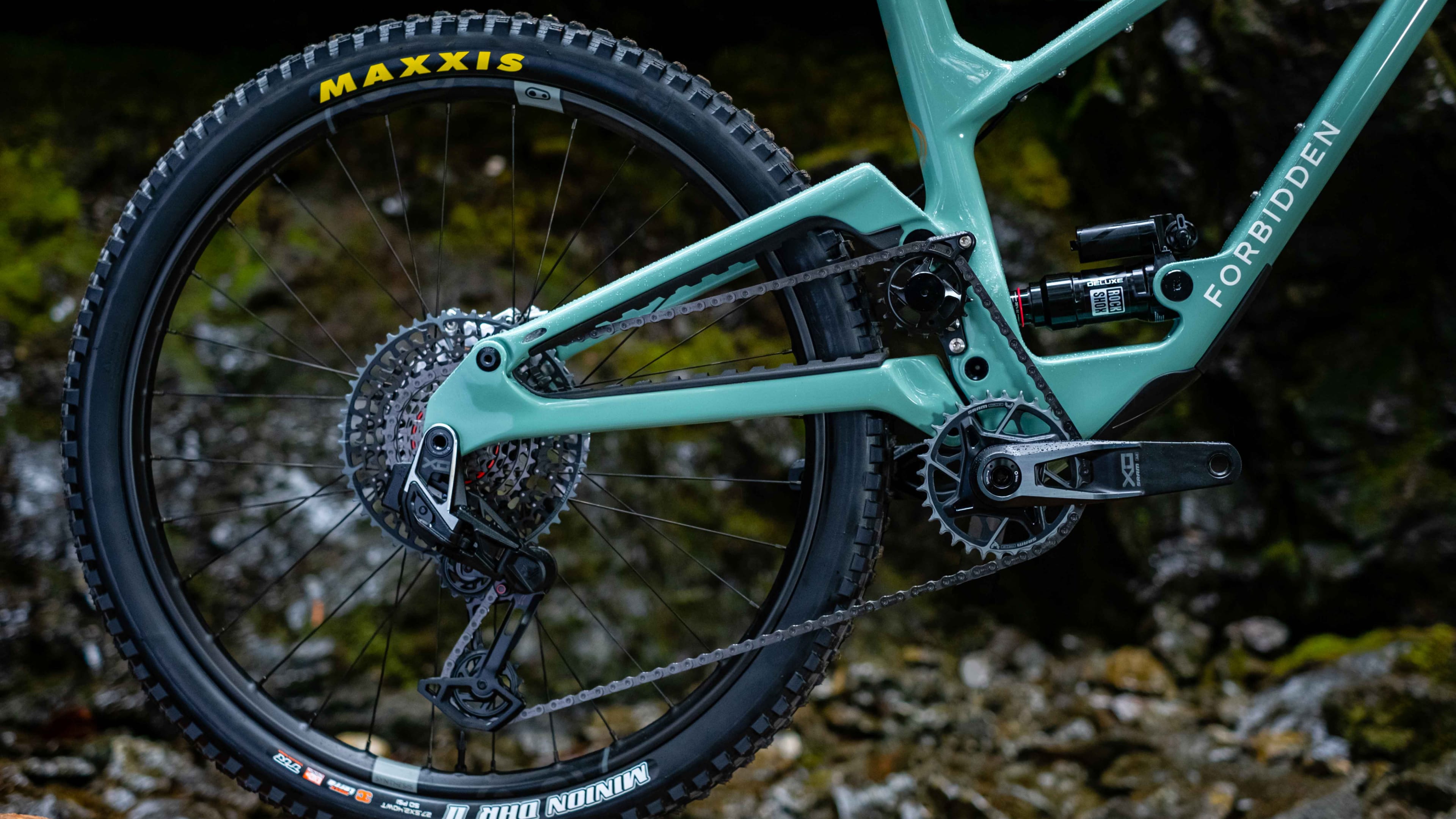

Idler Pulley System
Idler Pulley System

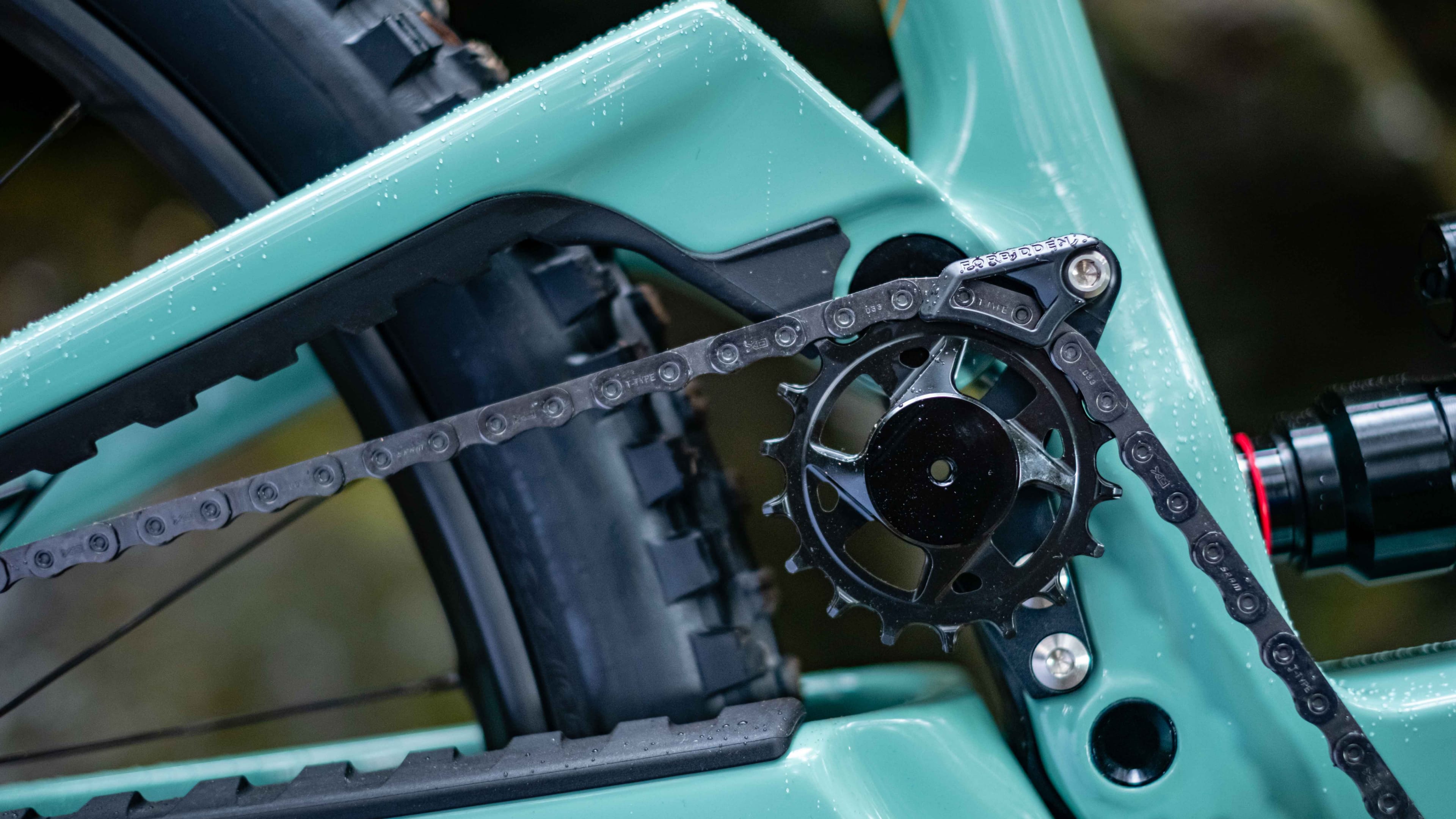

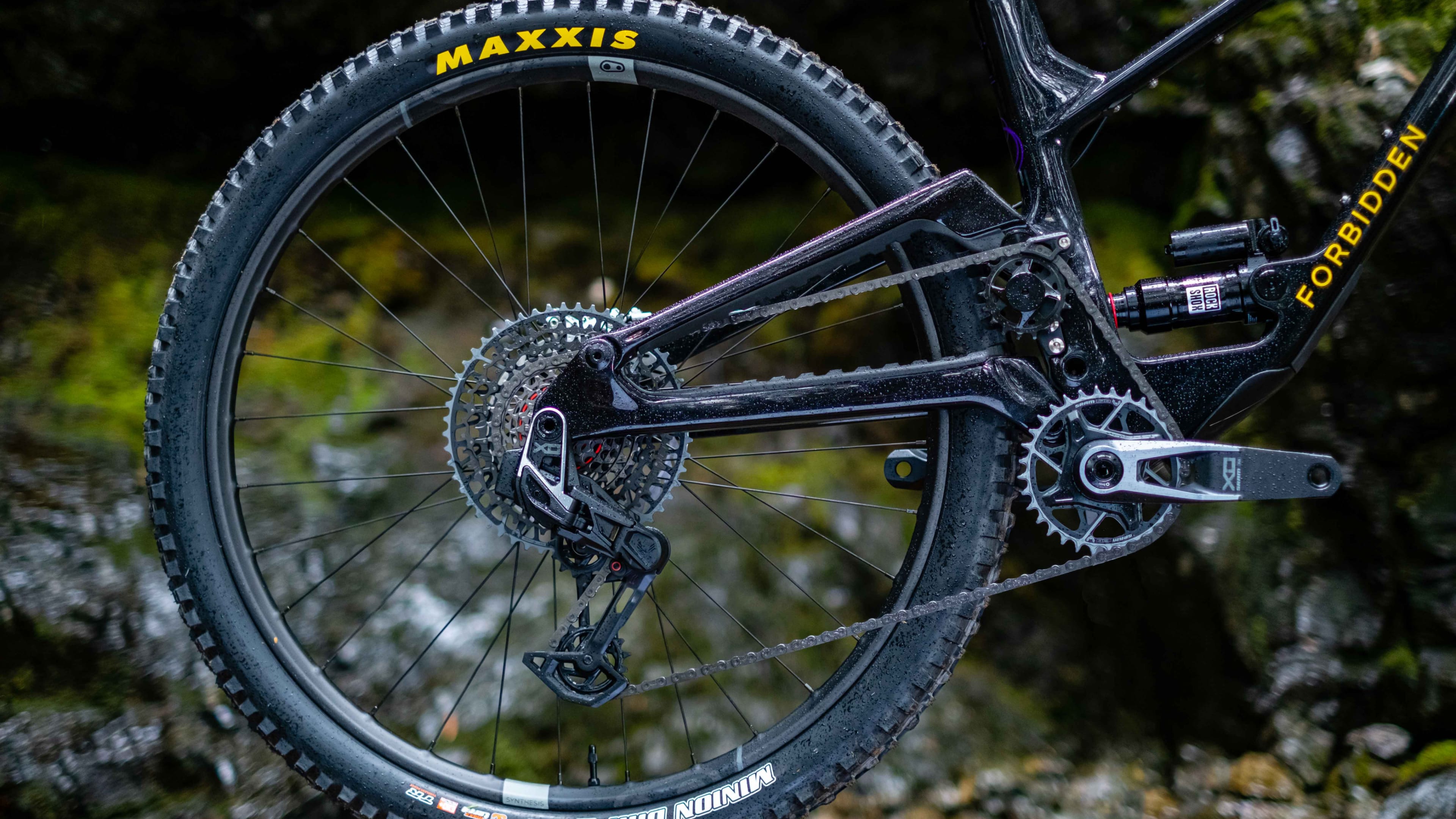

Druid now sports an 18-tooth steel idler equipped with a solid lube bearing as standard. These changes, along with a refined tooth profile increase the idler’s longevity and ensure compatibility with the latest drivetrains. Our new idler, along with its modular mounting system is compatible and optimized for use with both 52mm and 55mm chain lines.
Druid now sports an 18-tooth steel idler equipped with a solid lube bearing as standard. These changes, along with a refined tooth profile increase the idler’s longevity and ensure compatibility with the latest drivetrains. Our new idler, along with its modular mounting system is compatible and optimized for use with both 52mm and 55mm chain lines.

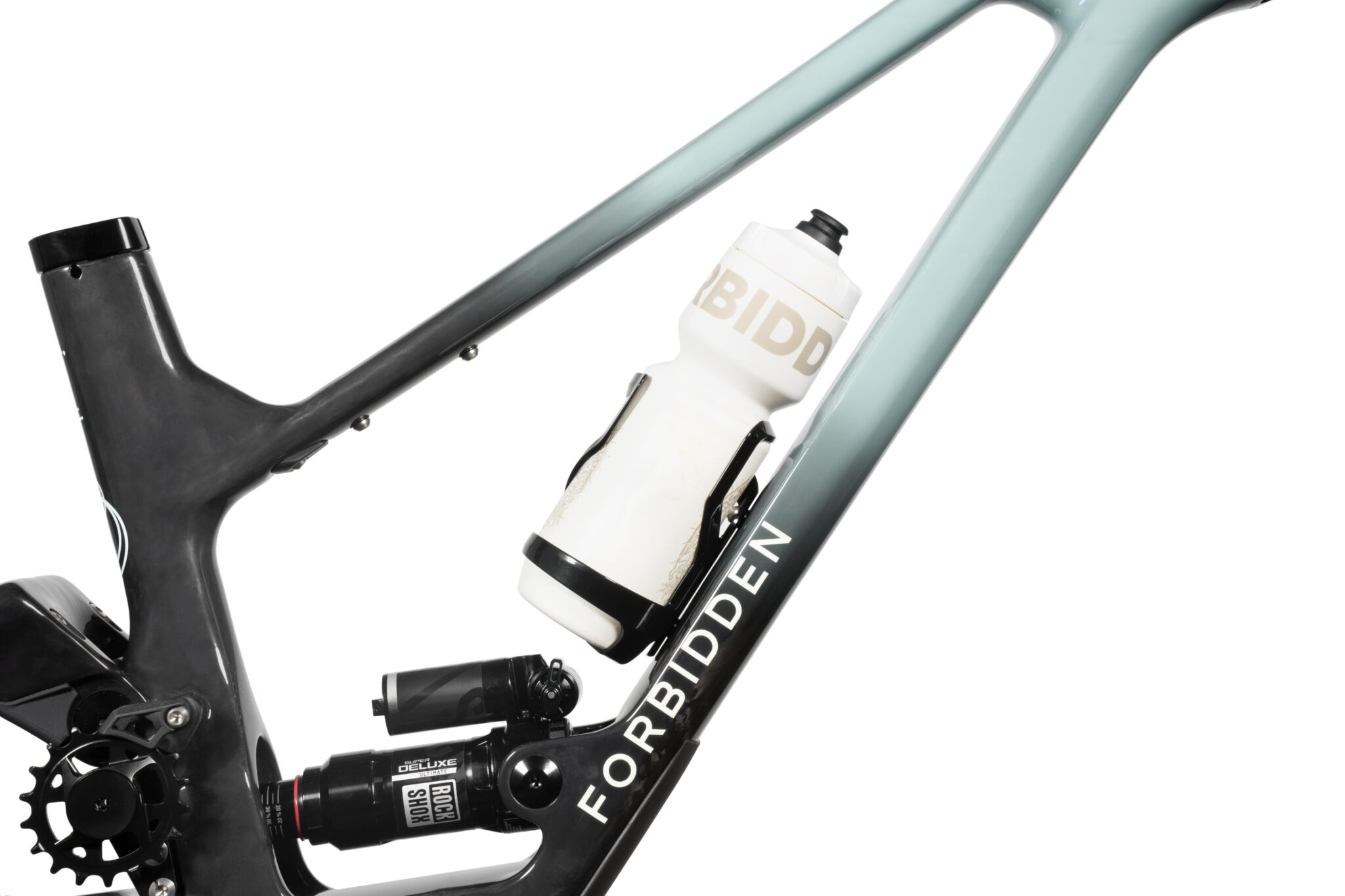

Water Bottle Fitment
Water Bottle Fitment
Even our smallest Druid frame size can fit a full-size 26oz water bottle, regardless of your rear shock reservoir. Remember, hydration is your friend, but sweaty backs most definitely are not.
Even our smallest Druid frame size can fit a full-size 26oz water bottle, regardless of your rear shock reservoir. Remember, hydration is your friend, but sweaty backs most definitely are not.
Frame Protection
Frame Protection
A quiet bike is a fast bike and a clean bike is less prone to problems, so we developed a full suite of custom frame protection to keep the noisy bits quiet and the hard to clean bits free from crud.
A quiet bike is a fast bike and a clean bike is less prone to problems, so we developed a full suite of custom frame protection to keep the noisy bits quiet and the hard to clean bits free from crud.

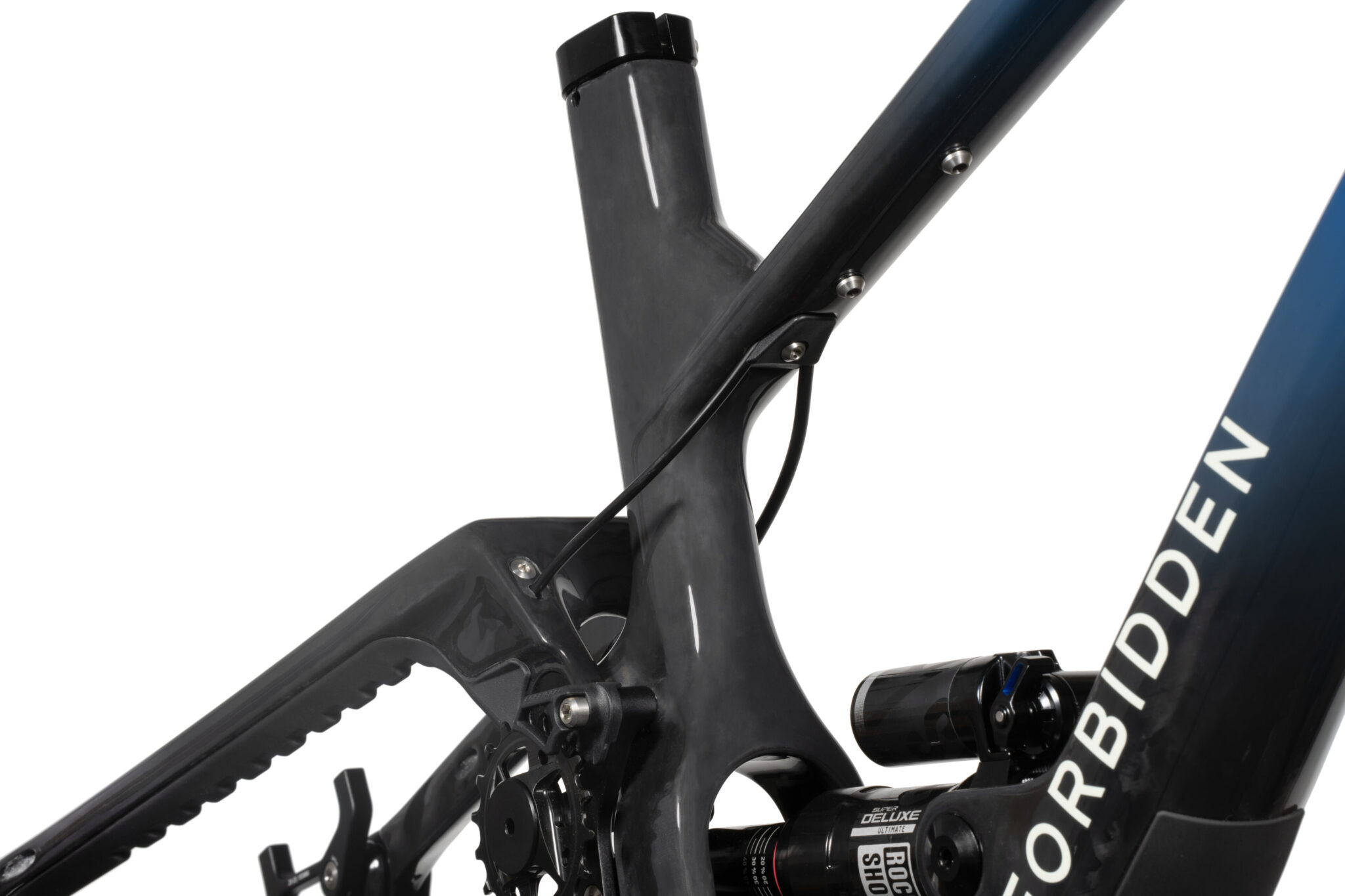

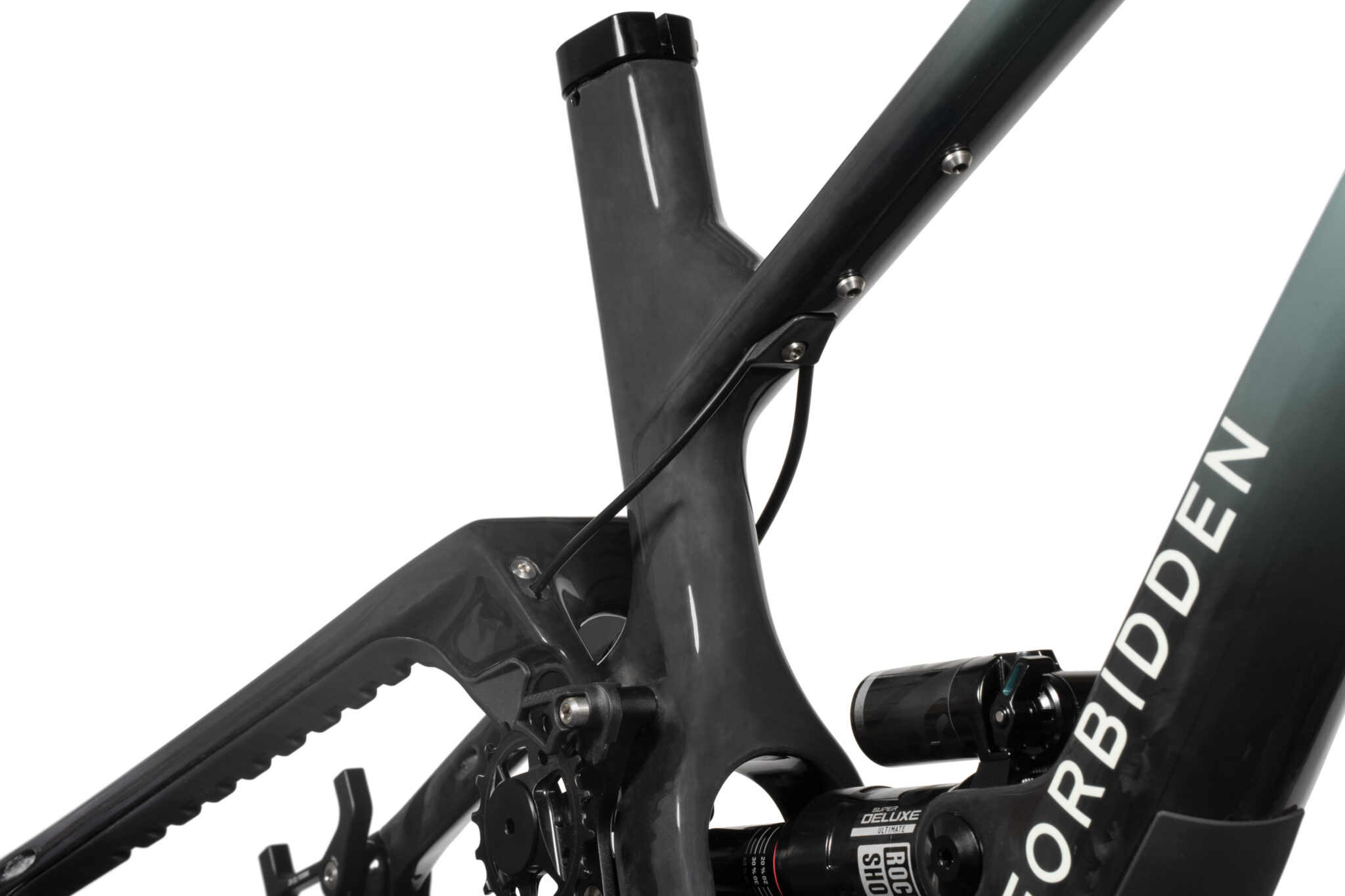

Cable Routing
Cable Routing
We don’t discriminate against rightys or leftys and our adaptable cable routing allows you to neatly route the Druid’s cables and hoses no matter where in the world you come from or with what hand you operate your rear brake with. New for V2 is the inclusion of clamping hose/cable ports on the rear triangle. This ensures no unwanted movement anywhere along the frame.
We don’t discriminate against rightys or leftys and our adaptable cable routing allows you to neatly route the Druid’s cables and hoses no matter where in the world you come from or with what hand you operate your rear brake with. New for V2 is the inclusion of clamping hose/cable ports on the rear triangle. This ensures no unwanted movement anywhere along the frame.

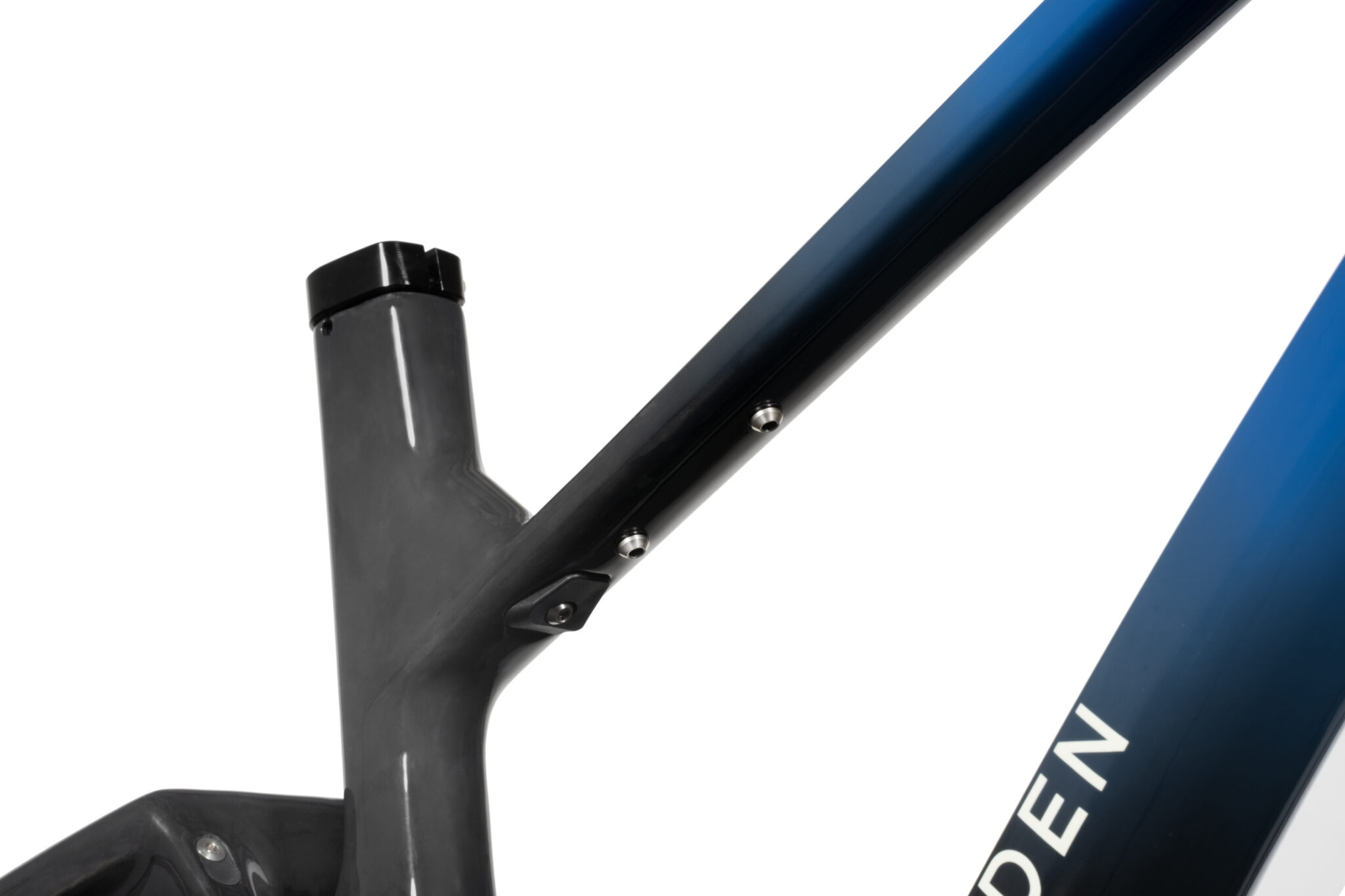

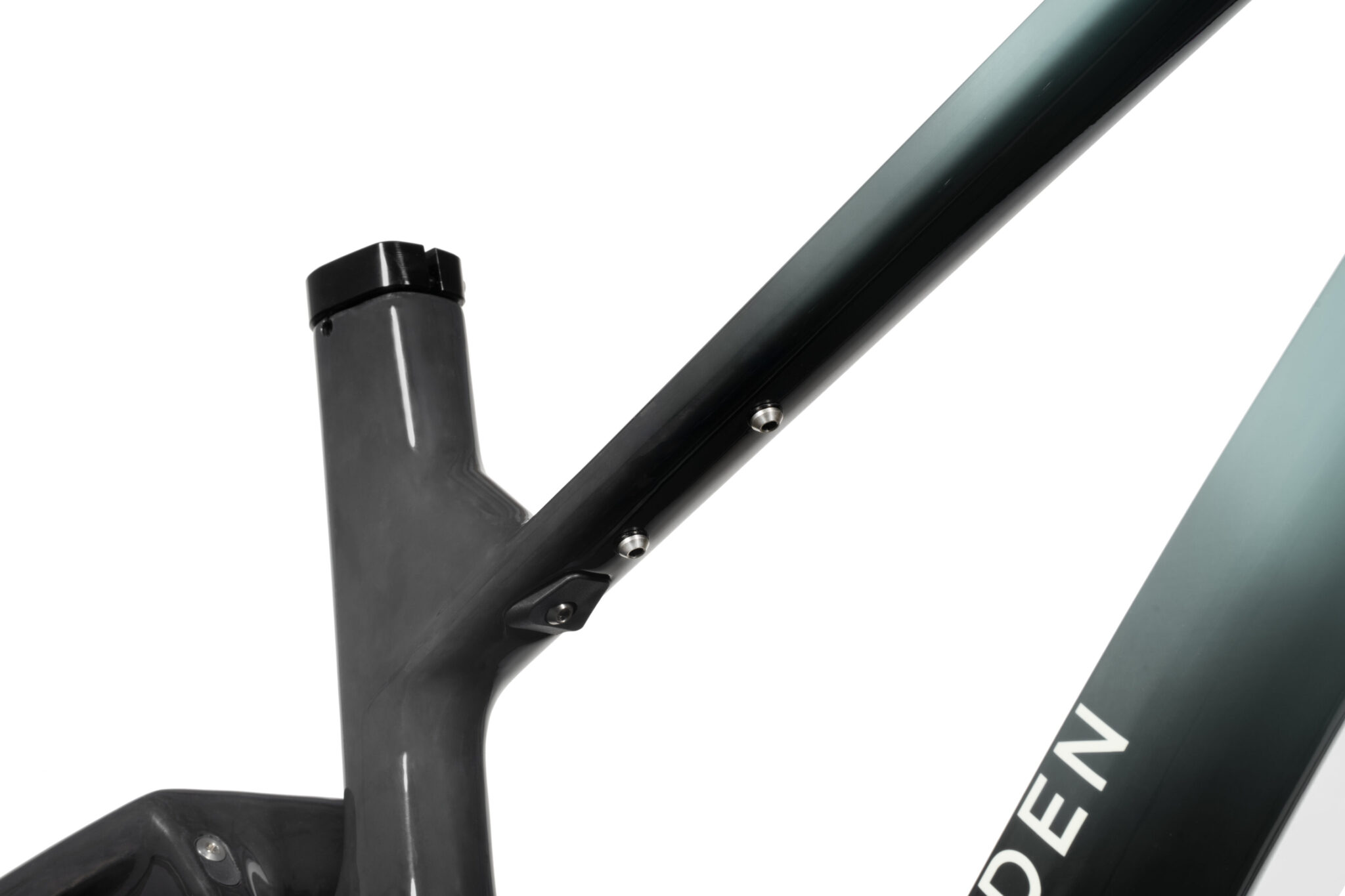

Accessory Mount
Accessory Mount
The ‘under the top tube’ mounting screws allow for the attachment of various accessory mounting solutions; pump, tools, a banana, the kitchen sink, go crazy, just don’t hang a water bottle there.
The ‘under the top tube’ mounting screws allow for the attachment of various accessory mounting solutions; pump, tools, a banana, the kitchen sink, go crazy, just don’t hang a water bottle there.
Sensible Standards
Sensible Standards

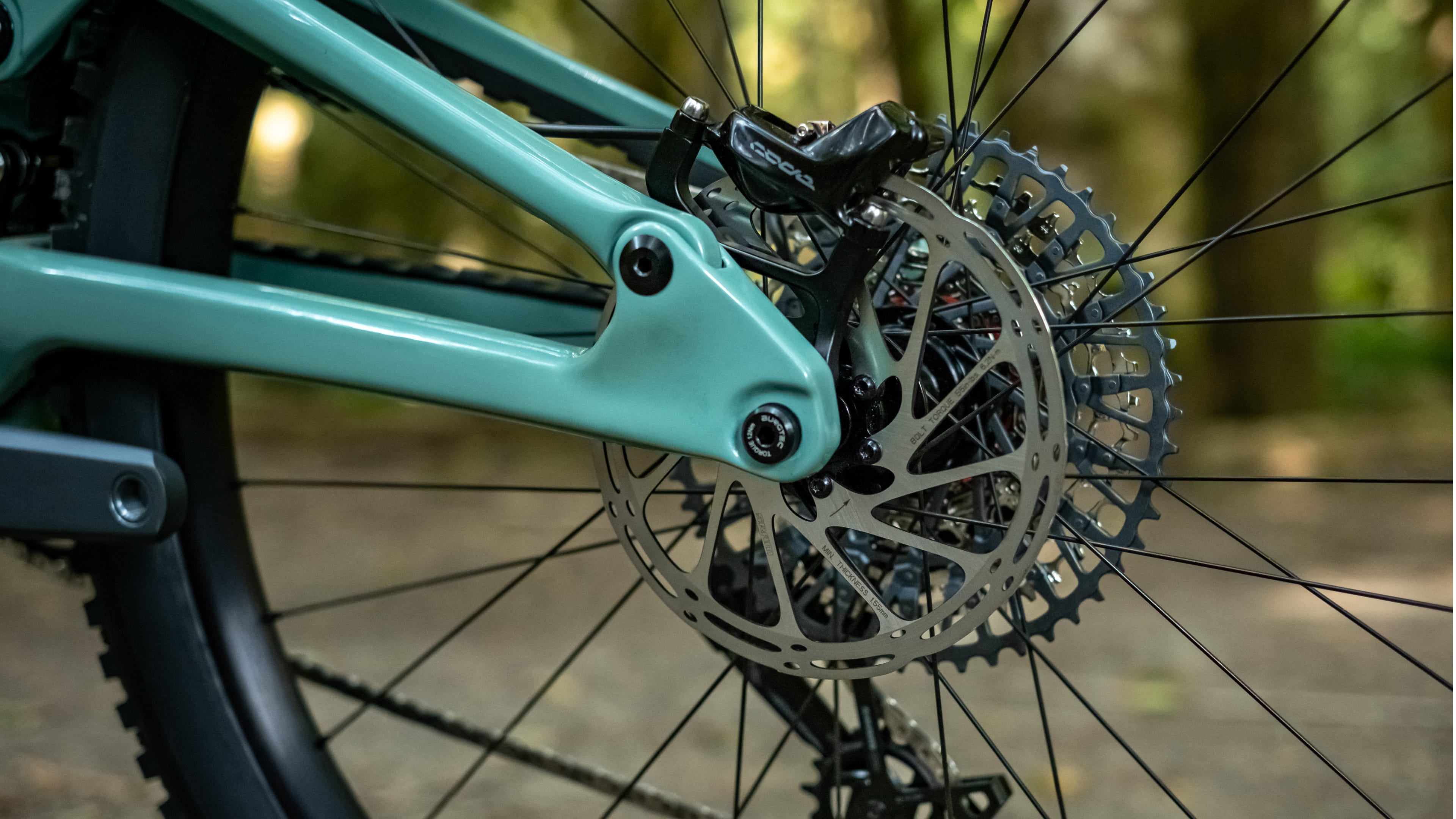

Threaded BB, Boost rear wheel spacing, press in headset cups – we only use what makes sense from a design and durability standpoint. You won’t find any questionable trends here – looking at you headset cable routing.
Threaded BB, Boost rear wheel spacing, press in headset cups – we only use what makes sense from a design and durability standpoint. You won’t find any questionable trends here – looking at you headset cable routing.
